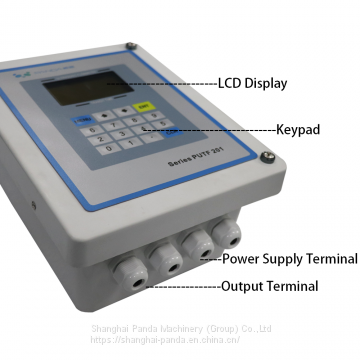

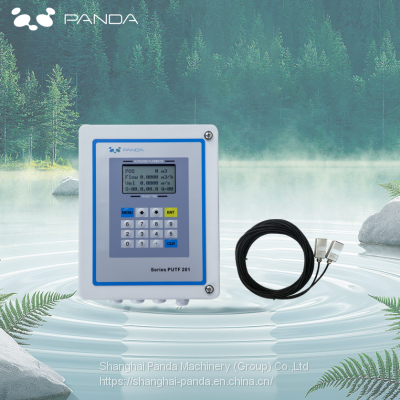

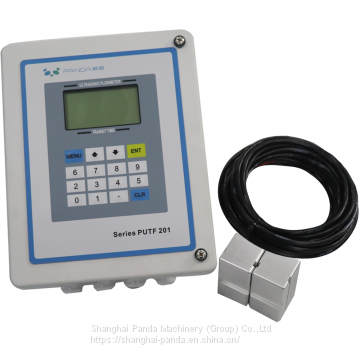

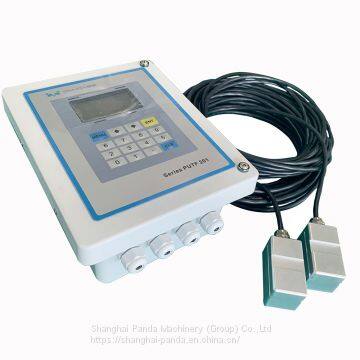

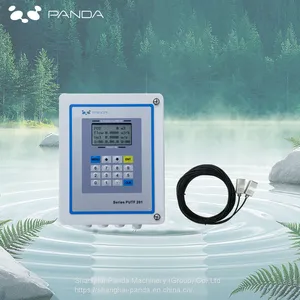

Help CenterDigital Display Wall Mounted Clamp On Ultrasonic Digital Water Flow Meter
Related Products
-
IN865 EU868 AU915 AS923 LoRaWAN Water MeterNegotiableMOQ: 1 Piece -
Domestic Water Meter LoRaWAN 470 MHz 868MHz 923MHzNegotiableMOQ: 1 Piece
-
Lorawan NB-IoT Smart Ultrasonic Water Meter AMRNegotiableMOQ: 1 Piece
-
Residential Price Water Meter ManufacturerNegotiableMOQ: 1 Piece
-
Clamp-on Ultrasonic Water Flow Meter Digital Smart for Pipe MeasurementUS$ 200 - 980MOQ: 1 Piece
Features
* 4 Lines Display Velocity, Flow Rate, Volume And Meter Status
* Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
* Acceptable Fluid Temperature Range -40℃~260℃
* Built-in Data Storage Is Optional
* Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function
* Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
* Bi-directional Measurement, Flow Range From 0.01m/s To 12m/s
Transmitter
Measuring Principle | Transit-time |
Velocity | 0.01 - 12 m/s, Bi-directional Measurement |
Resolution | 0.25mm/s |
Repeatability | 0.1% |
Accuracy | ±1.0% R |
Response Time | 0.5s |
Sensitivity | 0.003m/s |
Damping | 0-99s(settable by user ) |
Suitable Fluid | Clean or tiny amounts of solids, air bubbles liquid , Turbidity<10000 ppm |
Power Supply | AC: 85-265V DC:12- 36V/500mA |
Installation | Wall Mounted |
Protection Class | IP66 |
Operating Temperature | -40℃ to +75℃ |
Enclosure Material | Fiberglass |
Display | 4X8 Chinese Or 4X16 English,Backlit |
Measuring Unit | meter,ft,m³,liter,ft³,gallon,barrel etc. |
Communication Output | 4~20mA, OCT, Relay, RS485 (Modbus-RUT), Data Logger ,GPRS |
Energy Unit | Unit : GJ,Opt: KWh |
Security | Keypad Lockout, System Lockout |
Size | 244*196*114mm |
Weight | 2.4kg |
Transducer
Protection Class | IP67 |
Fluid Temperature | Std. transducer : -40℃~85℃(Max.120℃) |
High Temp : -40℃~260℃ | |
Pipe Size | 20mm~6000mm |
Transducer Size | S 20mm~50mm |
M 40mm~1000mm | |
L 1000mm~6000mm | |
Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
Temperature Sensor | PT1000 |
Cable Length | Std. 10m (customized) |
TransmitterTransducer
