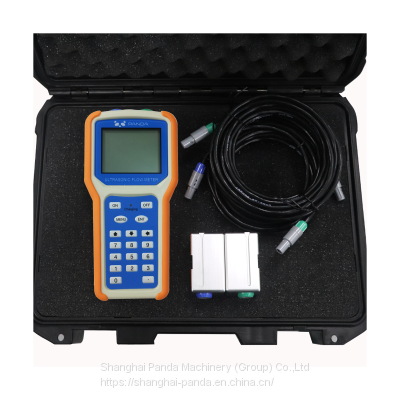

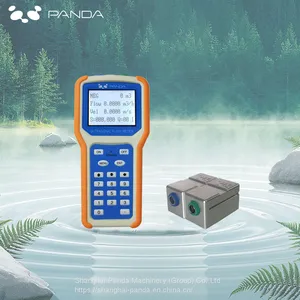

20-6000mm Portable Water Meter Handheld Ultrasonic Flow Meter

Name: 20-6000mm Portable Water Meter Handheld Ultrasonic Flow Meter
Brand: PANDA
SKU: 171216781
Availability: InStock

US$ 260 - 800 MOQ: 1 Piece

Key Specifications

Brand Name:

PANDA

Place of Origin:

China

Model Number:

PUTF203

Shanghai Panda Machinery (Group) Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name PANDA

Place of Origin China

Model Number PUTF203

Product Description

Features

lSmall Size, Easy To Carry And Simple Installation

lBuilt-in Chargeable Lithium Battery Can Continuously Work 14 Hours

l4 Lines Display Velocity, Flow Rate, Volume And Meter Status

lClamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption

lFluid Temperature Range -40℃~260℃

lBuilt-in Data Storage Is Optional

lSuitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers

lBi-directional Measurement, Flow Range From 0.01m/s To 12m/s

Specification

Transmitter

Measuring Principle	Transit-time
Velocity	0.01 - 12 m/s, Bi-directional Measurement
Resolution	0.25mm/s
Repeatability	0.10%
Accuracy	±1.0% R
Response Time	0.5s
Sensitivity	0.003m/s
Damping	0-99s (settable by user )
Suitable Fluid	Clean or tiny amounts of solids, air bubbles liquid , Turbidity
Power Supply	AC: 85-265V, built-in chargeable lithium battery can continuously work 14 hours
Protection Class	IP65
Operating Temperature	-40℃ ~ 75℃
Enclosure Material	ABS
Display	4X8 Chinese Or 4X16 English,Backlit
Measuring Unit	meter,ft,m³,liter,ft³ ,gallon,barrel etc.
Communication Output	Data Logger
Security	Keypad Lockout, System Lockout
Size	21210036mm
Weight	0.5kg

Transducer

Protection Class	IP67
Fluid Temperature	Std. transducer: -40℃~85℃(Max.120℃)
Fluid Temperature	High Temp: -40℃~260℃
Pipe Size	20mm~6000mm
Transducer Size	S 20mm~50mm
	M 40mm~1000mm
	L 1000mm~6000mm
Transducer Material	Std. Aluminum alloy, High Temp.(PEEK)
Cable Length	Std. 5m (customized)
