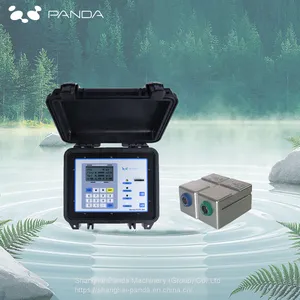

Data Logger Battery Powered Portable Ultrasonic Flow Meter

Name: Data Logger Battery Powered Portable Ultrasonic Flow Meter
Brand: PANDA
Price: $280 - 1580 / Piece

FOB Price

280 - 1580 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

PANDA

Place of Origin:

China

Product Description

Features

*Built-in Chargeable Lithium Battery Can Continuously Work 50 Hours

*4 Lines Display Velocity, Flow Rate, Volume And Meter Status

*Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption

*Fluid Temperature Range -40℃~260℃

*Built-in Data Storage Is Optional

*Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function

*Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers

*Bi-directional Measurement, Flow Range From 0.01m/s To 12m/s

Specification

Transmitter

Measuring Principle	Transit-time
Velocity	0.01 - 12 m/s,Bi-directional Measurement
Resolution	0.25mm/s
Repeatability	0.1%
Accuracy	±1.0% R
Response Time	0.5s
Sensitivity	0.003m/s
Damping	0-99s(settable by user )
Suitable Fluid	Clean or tiny amounts of solids, air bubbles liquid , Turbidity<10000 ppm
Power Supply	AC: 85-265V DC:12- 36V/500mA
Installation	Portable
Protection Class	IP66
Operating Temperature	-40℃ to +75℃
Enclosure Material	ABS
Display	4X8 Chinese Or 4X16 English,Backlit
Measuring Unit	meter,ft,m³,liter,ft³ ,gallon,barrel etc.
Communication Output	4~20mA, OCT, RS485 (Modbus-RUT), Data Logger
Energy Unit	Unit :GJ,Opt: KWh
Security	Keypad Lockout, System Lockout
Size	270246175mm
Weight	3kg

Transducer

Protection Class	IP67
Fluid Temperature	Std. transducer : -40℃~85℃(Max.120℃)
Fluid Temperature	High Temp : -40℃~260℃
Pipe Size	20mm~6000mm
Transducer Size	S 20mm~50mm
	M 40mm~1000mm
	L 1000mm~6000mm
Transducer Material	Std. Aluminum alloy, High Temp.(PEEK)
Cable Length	Std. 5 m (customized)
