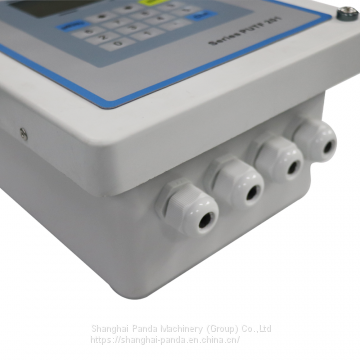

Ultrasonic RS485 4-20mA Clamp-on Flow Meter PriceUS$ 200 - 980MOQ: 1 Piece -
Residential Small Water Meter Ultrasonic Inline Flow MeterNegotiableMOQ: 1 Piece
-
Residential Inline Flow Meter Ultrasonic Lorawan IN865NegotiableMOQ: 1 Piece
-
NB-IoT Wireless Ultrasonic Water Flow Meter Inline FlowmeterNegotiableMOQ: 1 Piece
-
Lorawan NB-IoT Smart Ultrasonic Water Meter AMRNegotiableMOQ: 1 Piece
Features
* 4 Lines Display Velocity, Flow Rate, Volume And Meter Status
* Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
* Acceptable Fluid Temperature Range -40℃~260℃
* Built-in Data Storage Is Optional
* Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function
* Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
* Bi-directional Measurement, Flow Range From 0.01m/s To 12m/s
Transmitter
Measuring Principle |
Transit-time |
Velocity |
0.01 - 12 m/s, Bi-directional Measurement |
Resolution |
0.25mm/s |
Repeatability |
0.1% |
Accuracy |
±1.0% R |
Response Time |
0.5s |
Sensitivity |
0.003m/s |
Damping |
0-99s(settable by user ) |
Suitable Fluid |
Clean or tiny amounts of solids, air bubbles liquid , Turbidity |
Power Supply |
AC: 85-265V DC:12- 36V/500mA |
Installation |
Wall Mounted |
Protection Class |
IP66 |
Operating Temperature |
-40℃ to +75℃ |
Enclosure Material |
Fiberglass |
Display |
4X8 Chinese Or 4X16 English,Backlit |
Measuring Unit |
meter,ft,m³,liter,ft³,gallon,barrel etc. |
Communication Output |
4~20mA, OCT, Relay, RS485 (Modbus-RUT), Data Logger ,GPRS |
Energy Unit |
Unit : GJ,Opt: KWh |
Security |
Keypad Lockout, System Lockout |
Size |
244*196*114mm |
Weight |
2.4kg |
Transducer
Protection Class |
IP67 |
Fluid Temperature |
Std. transducer : -40℃~85℃(Max.120℃) |
High Temp : -40℃~260℃ | |
Pipe Size |
20mm~6000mm |
Transducer Size |
S 20mm~50mm |
M 40mm~1000mm | |
L 1000mm~6000mm | |
Transducer Material |
Std. Aluminum alloy, High Temp.(PEEK) |
Temperature Sensor |
PT1000 |
Cable Length |
Std. 10m (customized) |
TransmitterTransducer
