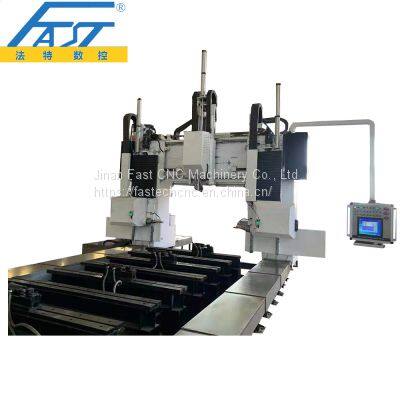

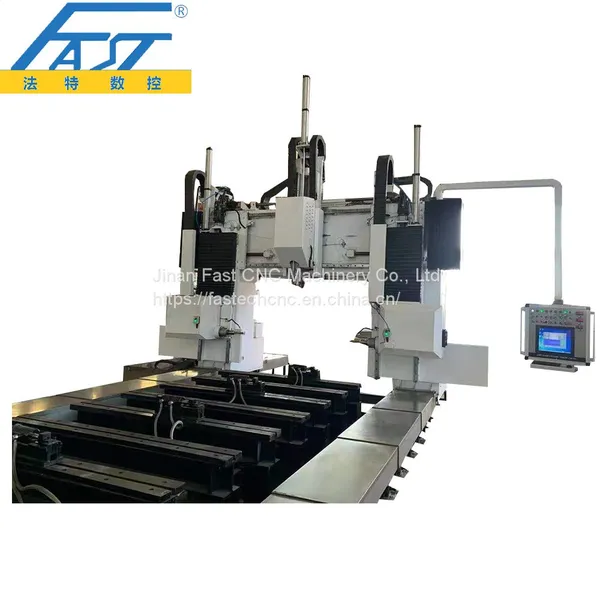

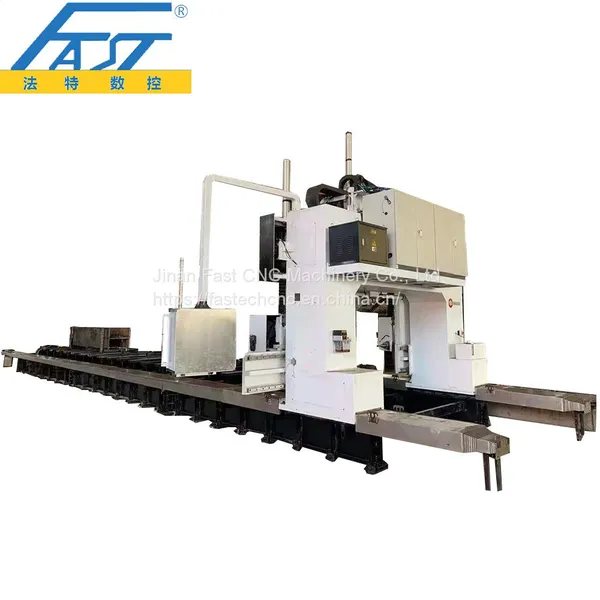

SDM360 x 200 x 10000 Gantry Movable CNC Drilling &Milling Machine
APPLICATION
This machine is mainly used for drilling and milling of groove beam, H-beam and other structural parts. Three sides can be processed simultaneously, and one side can be processed.
If requested, tapping can be added and a knife library is also available.
MODEL EXPLAINATION
SDM---Section Steel Drilling and Milling
360: Width of section steel is 360mm
200:Height of section steel is 200mm
10000: Section steel length 10000mm
TECHNICAL DATA
| SPECIFICATION | UNIT | PARAMETERS | |
| Worktable | Effective table size
| mm | 360×10000 |
Can pass workpiece width
| mm | 560 | |
Load capacity
| t | 10 | |
Upper power head unit
| Spindle specification
| BT40 precision high speed spindle | |
Tool cooling mode
| Central spray internal cooling + gas-liquid external cooling | ||
| Loosing tool method | Pneumatic loosing tool | ||
Spindle servo motor power
| kW | 15 | |
Range of spindle speed
| r/min | 0-3000 | |
Left and right power head units
| Spindle specification | BT40 precision high speed spindle | |
| Tool cooling mode | BT40 precision high speed spindle | ||
| Loosing tool method | Pneumatic loosing tool | ||
| Spindle servo motor power | kW | 15 | |
| Range of spindle speed | r/min | 0-3000 | |
Processing capability
| Drilling | mm | φ30 Carbide drill
|
| mm | φ40 twist drill | ||
| Milling | mm | φ30 milling tool | |
| Tapping | M20(Optional Item) | ||
| Automatic tool changer | 3 tool manazine, each magazine has 4 tools (optional) | ||
CNC axes number and servo motor
| CNC Axes | 8 axes(Withour tool hoder) 12 axes (With auto tool holder)
| |
Spindle servo motor power
| kW | 15×3 | |
The spindle feeds the servo motor power
| kW | 2KW×3 (With precision reducer) | |
| Gantry and power head move servo motor power | kW | 2KW×5 (With precision reducer) | |
| Tool magazion servo motor power | kW | 0.6KW One rotary tool magazine is used, 2 inline tool magazine are not used | |
| Controlling system | Controlling system | Computer+PLC (Without Tapping) | |
tandard CNC system (with tapping) | |||
| Cooling system | Cooling method | (See power head unit description) | |
| Air source pressure (supplied by user) | mPa | 0.6 | |
| Chip removal system | Power of a screw chip drainer | kW | 1.1(Optional Item) |
| Machine total power | kW | about 53 | |
| Total weight | T | about 15 | |
| Outline demension | L*W*H | mm | About 11000×2000×3000 |
