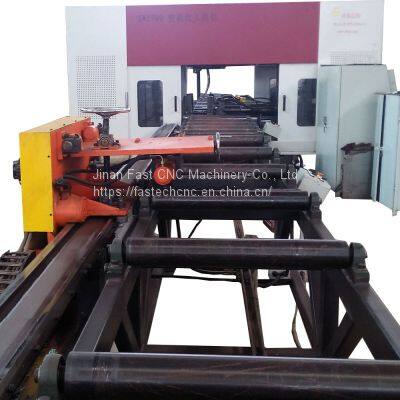

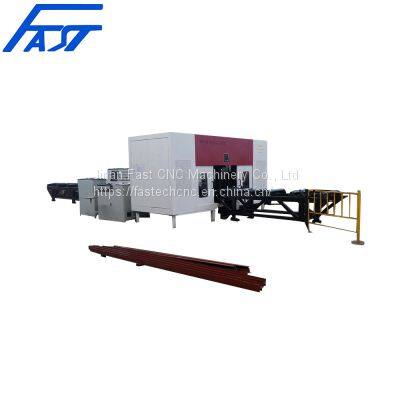

Hot Sale 3D Nine Spindle CNC Drilling Machine for Beams Drilling Holes on Beams SWZ700
APPLICATION
This machine is special equipment for the drilling processing of H beams, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
FEATURES
Integrated machine with mechanical, electrical and hydraulic elements;
This machine has three power heads. Each power head has three spindles, which can clamp 3 different tools at the same time. It can adapt to the customer's processing of up to three different apertures on the same processing surface. No need to frequently manual tool change. It improves work efficiency;
There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
The main electrical control components and hydraulic and pneumatic components are imported accessories;
Providing G-code software program that can directly convert CAD graphics into executable machine ;
Graph display of processed parts;
With fault self-diagnosis function.
COMPOSITION
Horizontal storage rack | Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway) |
CNC Infeeding Trolley | CNC trolley running track |
Loading side power raceway | Three-dimensional drilling unit |
Offloading side power raceway | Side pusher system |
Automatic chip conveyor | Mist cooling system |
Electric control cabinet | Hydraulic station |
TECHNICAL DATA
Model | SWZ400*300-9 | SWZ700*400-9 |
H-beam Max. Web Weight *Max. Flange Height (mm) | 400*300 | 700*400 |
H-beam Min. Web Weight *Min. Flange Height (mm) | 100*75 | 150*100 |
Automatic Feeding Length (mm) | 1500~~12000 | |
Max. Web Thickness (mm) | ≤40 | |
Max. Drilling Diameter (mm) | Φ40 | |
Feeding Speed (mm/min) | 20~200 | |
NO. of Spindle | 3*3=9 | |
Rotation Speed of Each Spindle (r/min) | 180~720 | |
No. of CNC Axis | 3 Spindles on each sides(top, left, right), Total 9 Spindles | |
Spindle Type | Morse 4# | |
Movement Of Upper Spindle (mm) | 20~360 | 20~660 |
Movement Of Left and Right Spindle (mm) | 20~280 | 20~380 |
Marking Function(Optional) Marking Number | 36 | |
Character Size (mm) | 14*10*20 | |
Total Power (kW) | About 30 | About 30 |
Overall Dimension L*W*H (m) | 22*4.2*3.1 | 28*4.5*3.2 |
