Help Center3 Spindle CNC Drilling Line for Profiles and Beams,Structural Steel Beam Drilling Machine (Drill Line)
Related Products
-
Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000US$ 108527 - 110000MOQ: 1 Set -
Large Size SDM360 x 200 x 10000 Gantry Movable CNC Drilling &Milling MachineUS$ 100000 - 110000MOQ: 1 Set
-
Customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210US$ 90000 - 100000MOQ: 1 Set
-
1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling MachineUS$ 100000 - 108000MOQ: 1 Set
-
Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To TunisiaUS$ 100000 - 120000MOQ: 1 Set
Bridge Construction Using Cnc H-beam Drilling Production Line
APPLICATION
This machine is special equipment for drilling H-beam, channel steel , box beam and angle steel in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries.
FEATURES
Integrated machine with mechanical, electrical and hydraulic elements;
This machine has three power heads. All holes on the three sides of the workpiece can be processed in one pass;
There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
The main electrical control components and hydraulic and pneumatic components are imported accessories;
Providing G-code software program that can directly convert CAD graphics into executable machine ;
Graph display of processed parts;
With fault self-diagnosis function.
COMPOSITION
| Horizontal storage rack | Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway) |
| CNC Infeeding Trolley | CNC trolley running track |
| Loading side power raceway | Three-dimensional drilling unit |
| Offloading side power raceway | Side pusher system |
| Automatic chip conveyor | Mist cooling system |
| Electric control cabinet | Hydraulic station |
TECHNICAL DATA
| Model | SWZ700-3 | SWZ1000-3 | SWZ1250-3 |
| H-beam Max. Web Weight *Max. Flange Height (mm) | 700*400 | 1000*500 | 1250*600 |
| H-beam Min. Web Weight *Min. Flange Height (mm) |
150*100 |
||
| Automatic Feeding Length (mm) |
2000~14000 |
||
| Max. Web Thickness (mm) | ≤60 | ||
| Max. Drilling Diameter (mm) | Φ40 | ||
| Feeding Speed (mm/min) | 20~200 | ||
| NO. of Spindle | 3 | ||
| Rotation Range of Each Spindle (r/min) | 100~700 | ||
| Spindle Type | Morse 4# | ||
| No. of CNC Axis | 4 | ||
| Upper Spindle Movement Range (mm) | 40~660 | 40~960 | 40~1160 |
| Left and Right Spindle movement range (mm) | 30~370 | 30~470 | 30~570 |
| Marking Function(Optional) Marking Number | 36 | ||
| Character Size (mm) | 14*10*20 | ||
| Total Power (kW) | 30 | 31 | 34 |
| Overall Dimension L*W*H (m) | 29*4.2*3.1 | 33*4.5*3.1 | 34*5*3.1 |

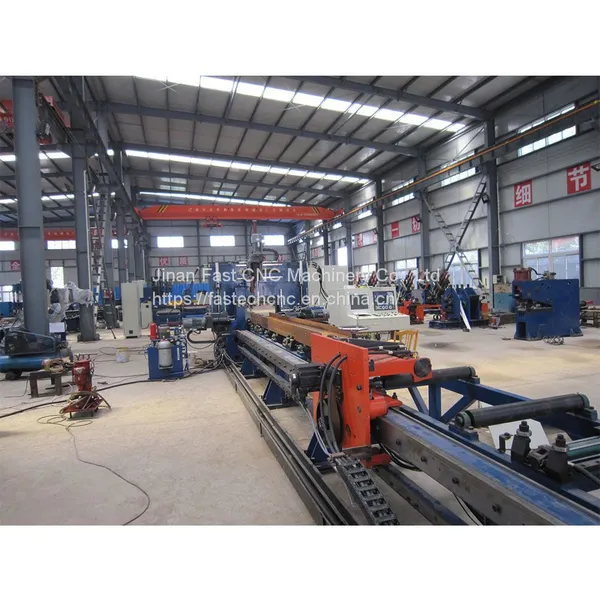

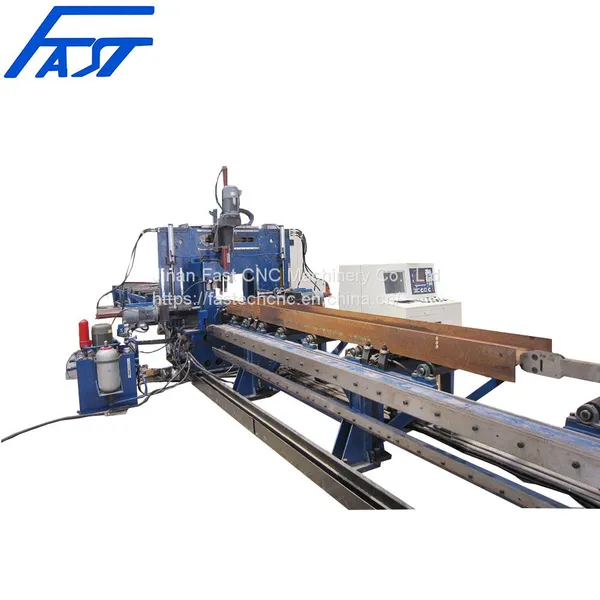

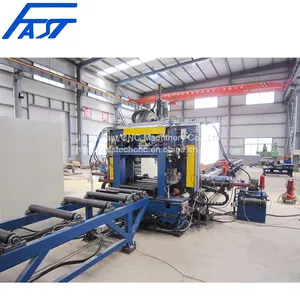

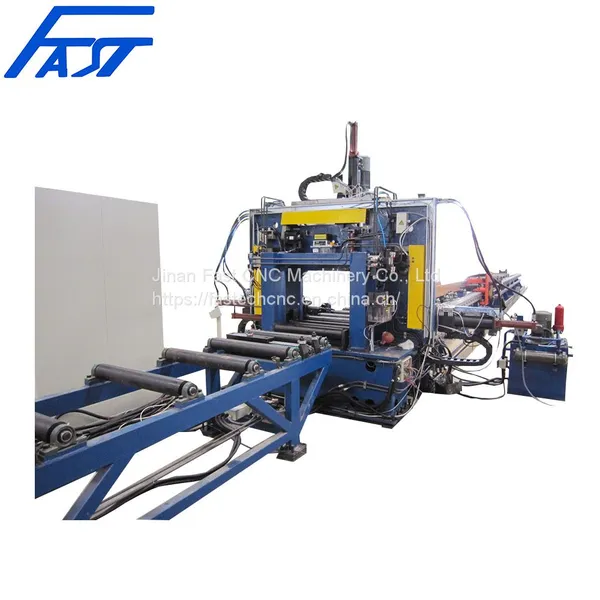

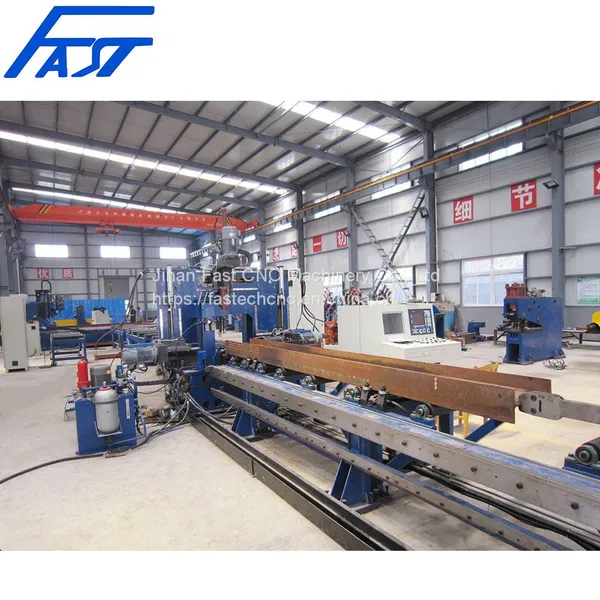

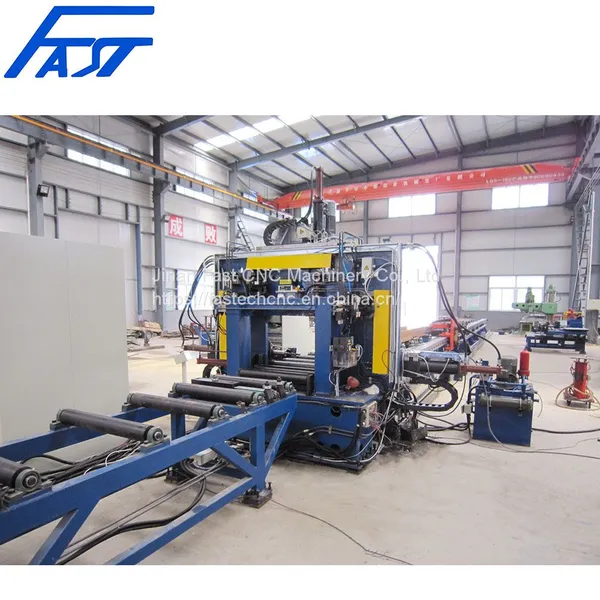

DETAIL IMAGES
WHY CHOOSE US
COMPANY PROFILE
WORKSHOP
CUSTOMER VISIT
FAQ
CERTIFICATE
PACKING AND SHIPPING
