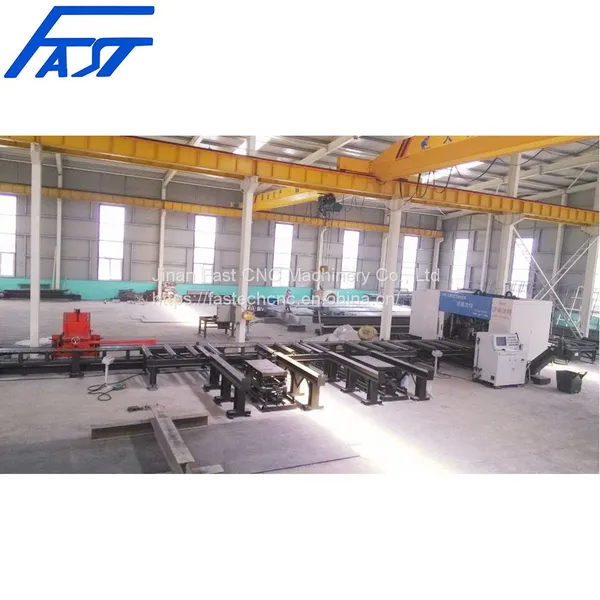

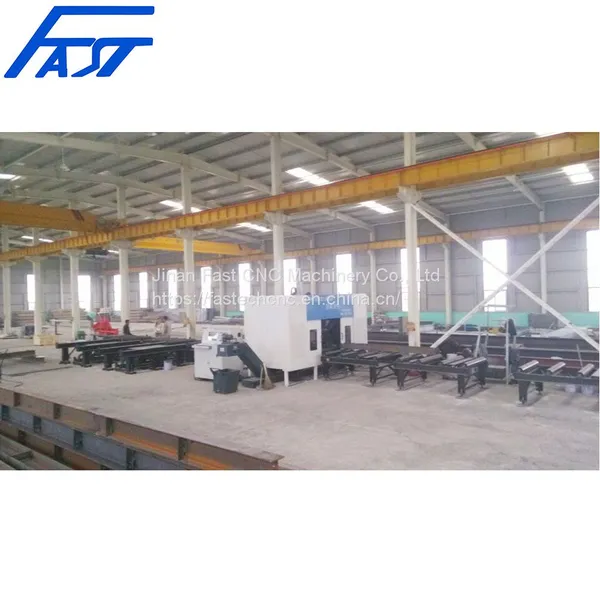

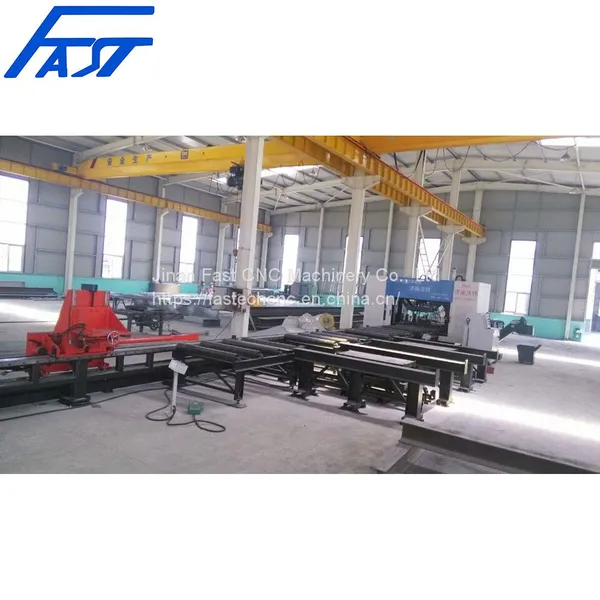

Jinan FAST High Performace CNC High Speed H Beam Drilling Machine Production Line Model SWZ1000
APPLICATION
This machine is used for drilling H-beam, channel steel, box beam, angle steel and other industries in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries. It adopts high-speed spindle processing with high efficiency and high precision.
FEATURES
Integrated machine with mechanical, electrical and hydraulic elements;
This machine has three power heads. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the three sides of the workpiece can be processed in one pass;
The drilling spindle adopts high-precision BT40 spindle;
The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;
The bed is welded by thick-walled steel pipes. The aging treatment is carried out after welding to ensure the stability of the bed and the accuracy of the entire machine tool.
The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
The main electrical control components and hydraulic and pneumatic components are imported accessories;
Providing G-code software program that can directly convert CAD graphics into executable machine ;
Graph display of processed parts;
With fault self-diagnosis function.
COMPOSITION
| Horizontal storage rack | Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway) |
| CNC Infeeding Trolley | CNC trolley running track |
| Loading side power raceway | Three-dimensional drilling unit |
| Offloading side power raceway | Side pusher system |
| Automatic chip conveyor | Mist cooling system |
| Electric control cabinet | Hydraulic station |
TECHNICAL DATA
| Model | SWZG400-3 | SWZG700-3 | SWZG1000-3 | SWZG1250-3 |
| H-beam Max. Web Weight*Max. Flange Height (mm) | 400*300 | 700*400 | 1000*500 | 1250*600 |
| H-beam Min. Web Weight *Min. Flange Height (mm) | 100*75 | 150*100 | ||
| Automatic Feeding Length (mm) | 1500~12000 | 2000~~14000 | ||
| Max. Web Thickness (mm) | ≤60 | |||
| Max. Drilling Diameter (mm) | Φ40 | |||
| Feeding Speed (mm/min) | 20~5000 | |||
| NO. of Spindle | 3 | |||
| Rotation Range of Each Spindle (r/min) | 100~3000 | |||
| Spindle Type | BT40 | |||
| Tool Magazine (Optional) | 3 | |||
| Number of Tools In Tool Magazine (Optional) | 3*4 | |||
| Cooling | With Air Cooling System | |||
| Upper Spindle Movement Range (mm) | 20~360 | 40~660 | 40~960 | 40~1160 |
| Left and Right Spindle movement range (mm) | 20~280 | 30~370 | 30~470 | 30~570 |
| Marking Function(Optional) Marking Number | 36 | |||
| Character Size (mm) | 14*10*20 | |||
| Overall Dimension L*W*H (m) | 22*4*3.2 | 29*4.2*3.4 | 33*4.5*3.6 | 33*4.8*3.8 |
★ All of these models can be customized according to customer requirements.
