HWASHI 3m Long Cable Tray Wire Mesh Welding Machine

HWASHI 3m Long Cable Tray Wire Mesh Welding Machine thumbnail-1
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine thumbnail-2
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine thumbnail-3
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine thumbnail-4
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine photo-1
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine photo-2
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine photo-3
HWASHI 3m Long Cable Tray Wire Mesh Welding Machine photo-4
US$ 15000 - 50000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hwashi
Place of Origin:
China
Model Number:
WL-SQ-150K
Contact Supplier Request Quote Chat Now
Guangdong Hwashi Technology Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hwashi
Place of Origin China
Model Number WL-SQ-150K
Material Stainless Steel
Diameter 1-12
Weight 3000KG
Application welding
Melting Point 30000
Flux Content welding wire
For query or inquiry call and email:


Email: sales@hwashi.com

Tel/Whatsapp: +8618680389568

Wechat: willsteed


Wire Mesh / Wire Shelf /Wire basket Production Line

1. Wire Straightening and Cutting Machine

2. High Speed Wire Straightening and Cutting Machine

3. 2D wire bending Machine

4. 3D wire bending Machine

5. Wire frame Butt Welding Machine

6. Wire frame T Butt Welding Machine

7. Automatic Wire Mesh Welding Machine

8. Wire Trimming Machine

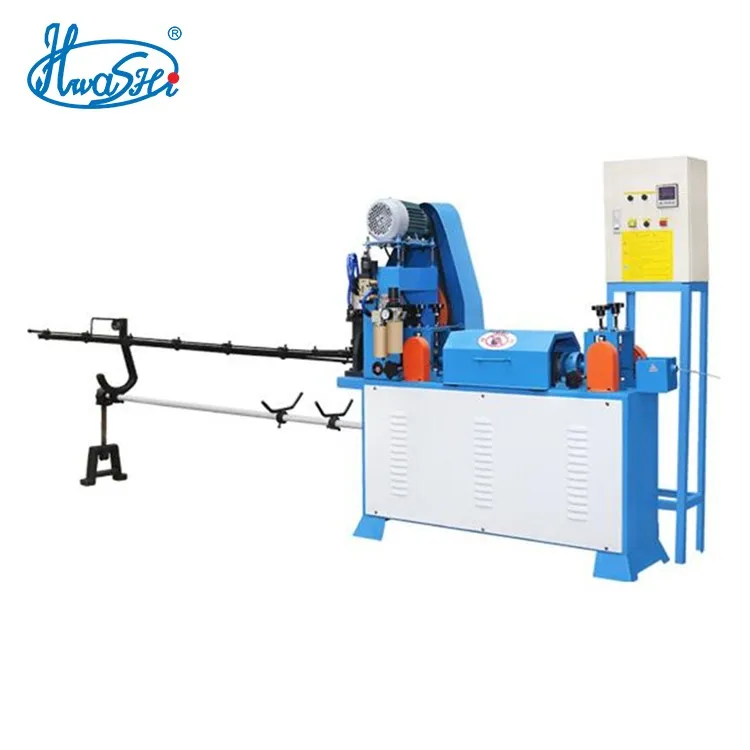

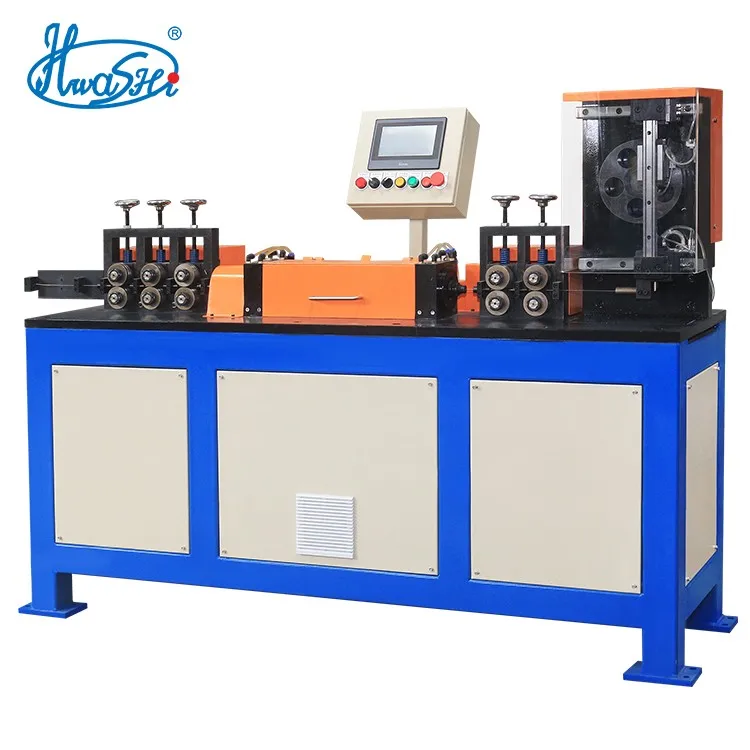

Machine 1 :Wire Straightening and Cutting Machine


Normal Wire Straightening and Cutting Machine
WL-RSW-6


1) Suitable Wire Diameter: 2-6mm
2) Straightens efficiency: 18 meter/minute
3) Max Cutting Length 3000mm

High Speed Wire Straightening and Cutting Machine for Φ3mm-Φ5mm wire and for Φ5mm-Φ7mm wire (2 models)


1) Length Range:Cutting Precision
2) Cutting Speed:Max. 350pcs/min
3) Wire Straightening Speed:100m/min for Φ3mm-Φ5mm wire ,70-80m/min for Φ5mm-Φ7mm wire
4) Cutting Precision:±0.5mm (except for accelerate and decelerate)

Machine 2 :2D AND 3D Wire Bending Machine

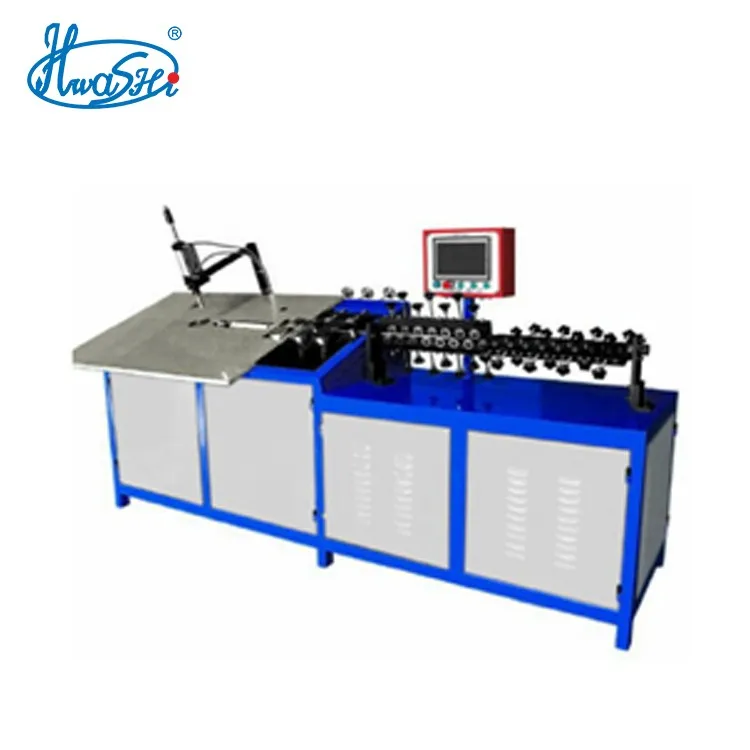

2D  Wire Bending Machine

Automatic 2D bending Machine for Φ4mm-Φ8mm carbon steel wire and Φ4-Φ7mm stainless steel wire
1) 4 Axis
2) Power of whole machine:8KW
3) The max feeding wire speed:30m/min
4) feeding wire tolerance:±0.5mm

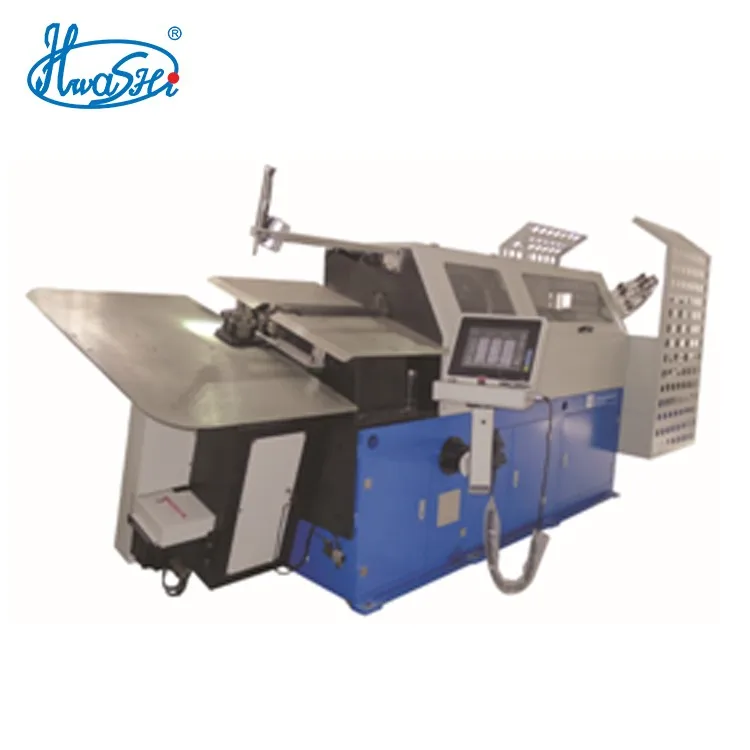

3D Wire Bending Machine

Automatic 3 D bending Machine for Iron wire 7 axis
1) Wire Diameter Range:Iron wire(Soft wire)3.0 -12.0 mm,Steel Wire(Hard wire) 3.0 -7.0 mm
2) Feeding Wire Length:UNLIMITED
3) Bending Angle:± 0.02°
4) Maximum Feeding-wire Speed :70 m / min

5) Maximum Bending Speed:3 turns / sec

6) Positioning Accuracy:± 0.02°

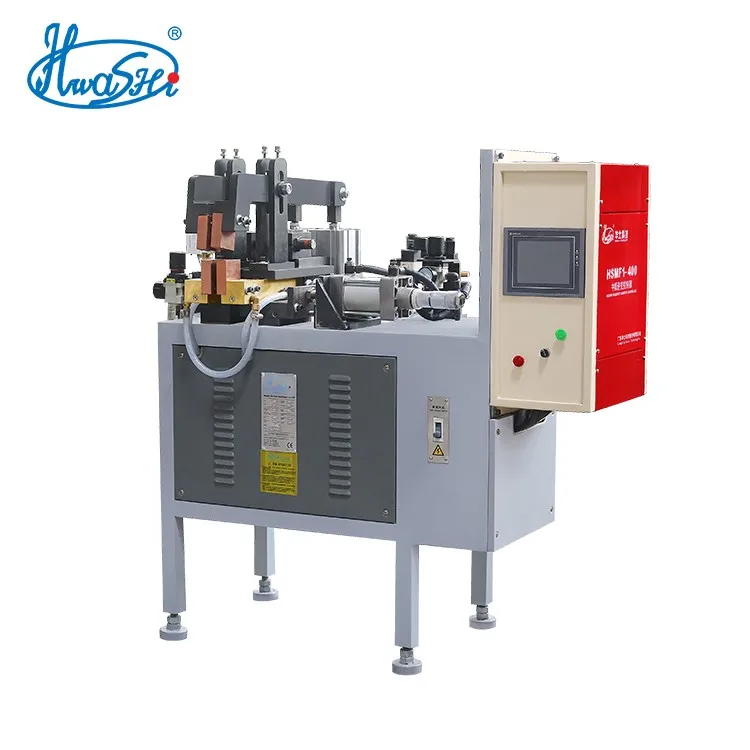

Machine 3 :Wire Butt Welding Machine
Wire frame Butt Welding Machine

Pneumatic AC Pulse Butt Welding Machine
1) Wire diameter is 2.5-8mm.
2) 75KVA AC welding power.

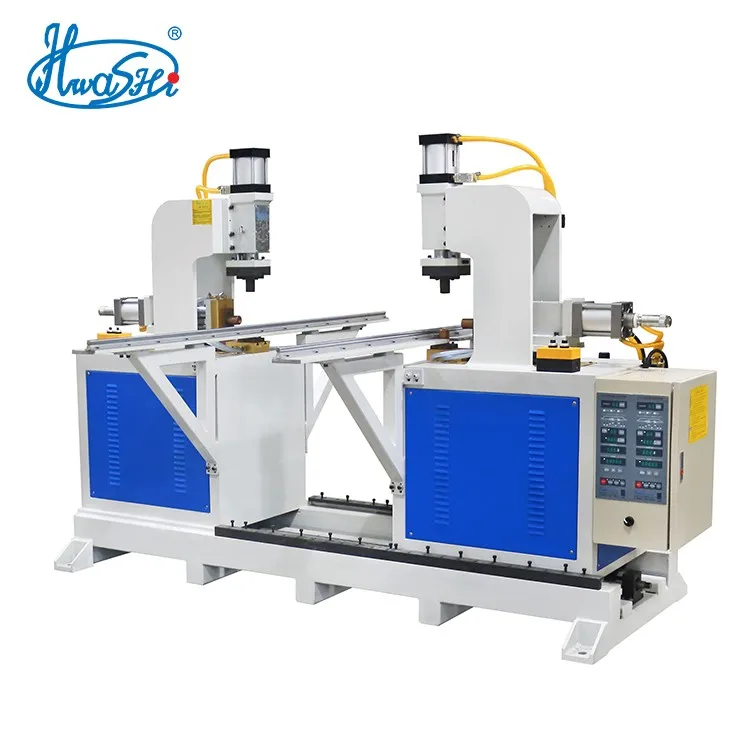

Wire frame T Butt Welding Machine

Double-Head AC T-Butt Welding Machine
1)Wire diameter is 2.5-8mm.
2)Frame size maximum is 800x800mm
3)Adopt two sets of 75KVA AC welding power.

Machine 4 :Wire Mesh Welding Machine
Model 1

Manual Wire Mesh Welding Machine

1. Manual wire loading and welding machine;
2. The number of electrode could be customized according to your requirement.
3. Low in price
4. Suitable for welding small wire mesh

5. Low efficiency
6. Suitable for 100mm-500mm wire mesh

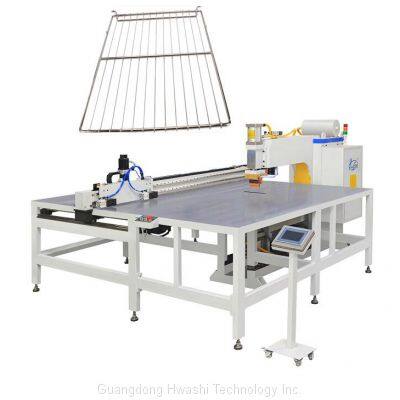

Model 2

Single Head Welding Machine With X Y Axis Automatic Feeder
1. Single Welding Electrode;
2. Manual wire loading;
3. X, Y axis automatic feeder and automatic welding
4. Low cost
5. Simple structure and easy assembly 6. Change fixtures for welding different sizes of wire mesh
7. Suitable for wire mesh within 1mx1m

Model 3

Automatic Wire Mesh Welding Machine for mesh within 1mx3m
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Single power supply system
5. Only one electrode can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working;
7. Suitable for wire mesh whose width is within 1000mm, length is not restricted.

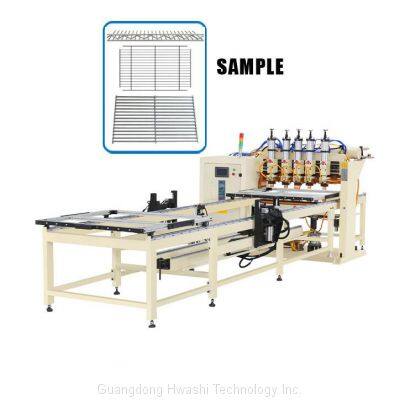

Model 4

Automatic Wire Mesh Welding Machine for mesh within 2mx3m
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.
7. High efficiency ,High cost
8. Suitable for wire mesh whose width is within 2000mm, length is not restricted.

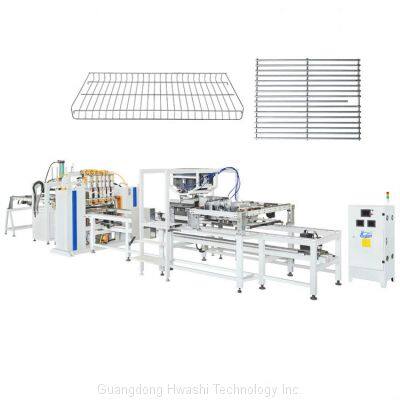

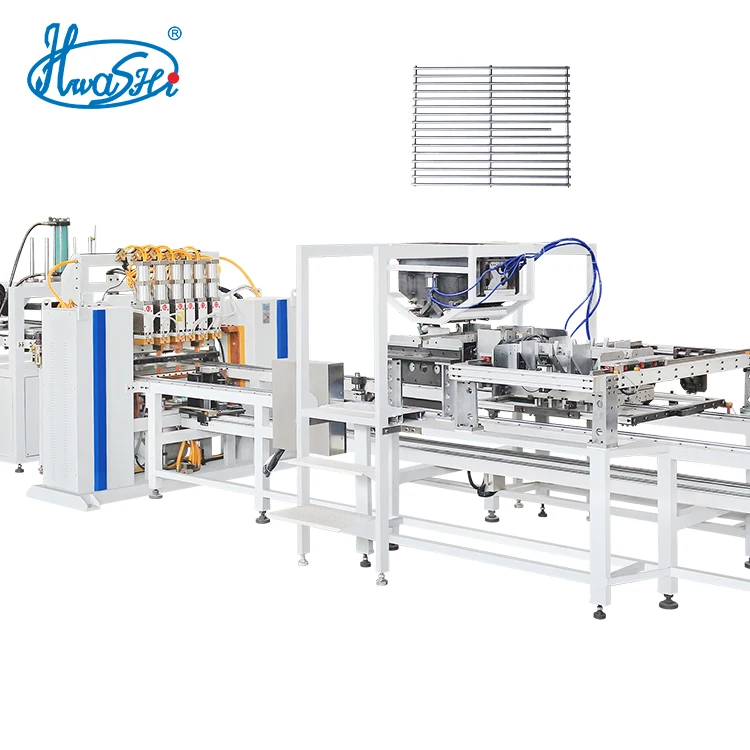

Model 5

Wire Mesh Automatic Welding Machine with automatic wire filling system

1. Multiple welding electrodes;
2. Automatic wire loading system;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Save labor force ,High automation level
7. Cycle working

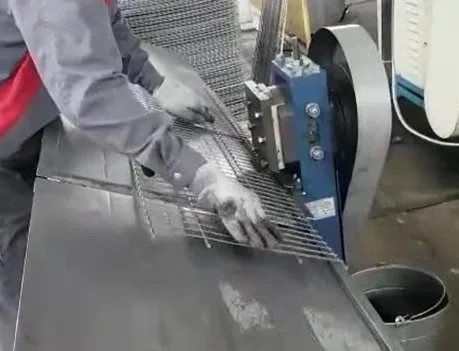

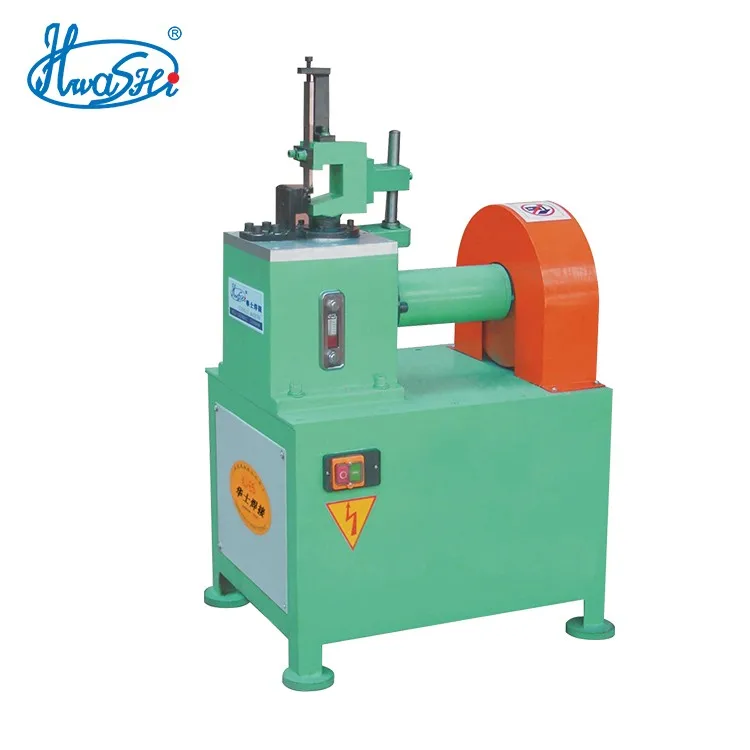

Machine 5 :Wire Trimming Machine

Wire Diameter: 2-8mm

Wire Mesh Samples
