DESCRIPTION

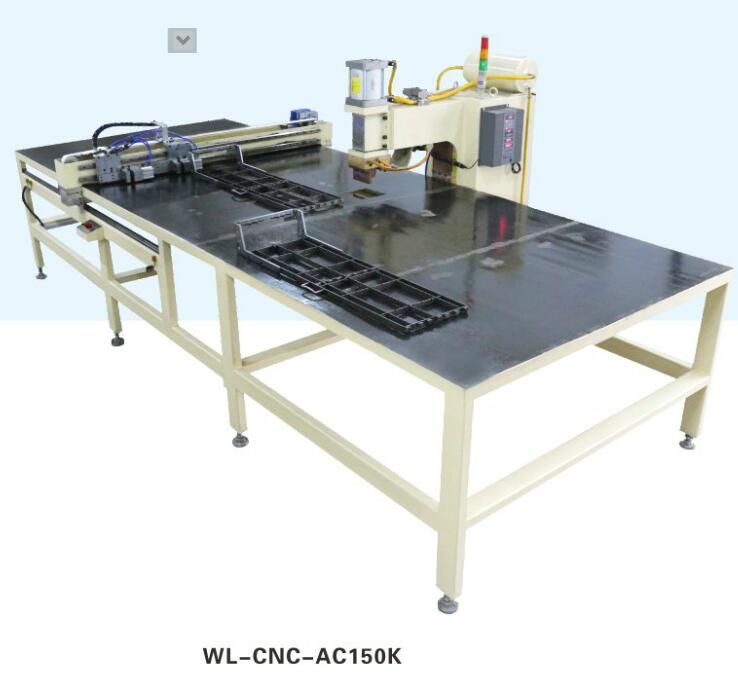

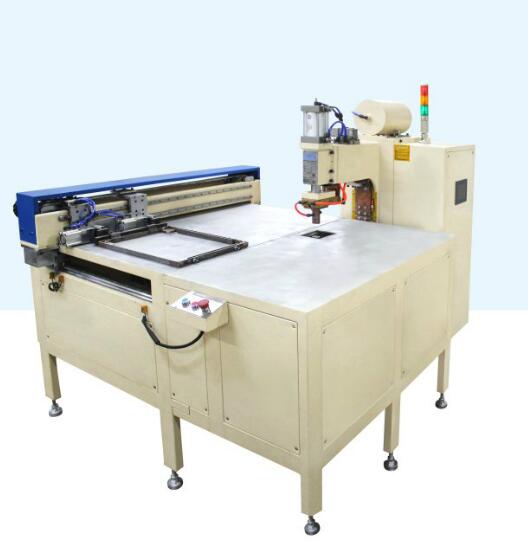

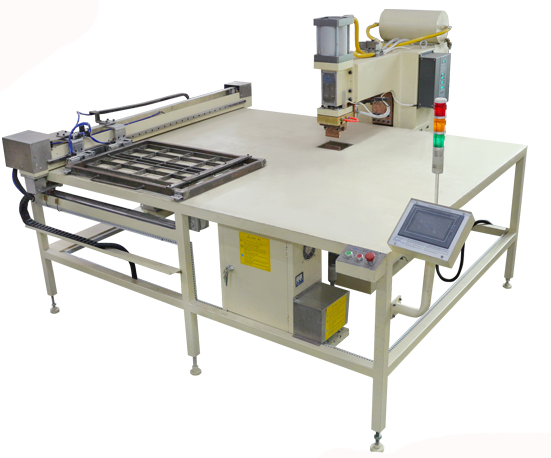

This is machine is designed as single welding electorde head with X,Y Asix automatic fixture feeder , which can improve welding effective than normal row welding machine. It is easily to change different fixture if you have different type of wire mesh with the same wire mesh size. .Effective welding wire mesh is LxW 1000x1000 mm.

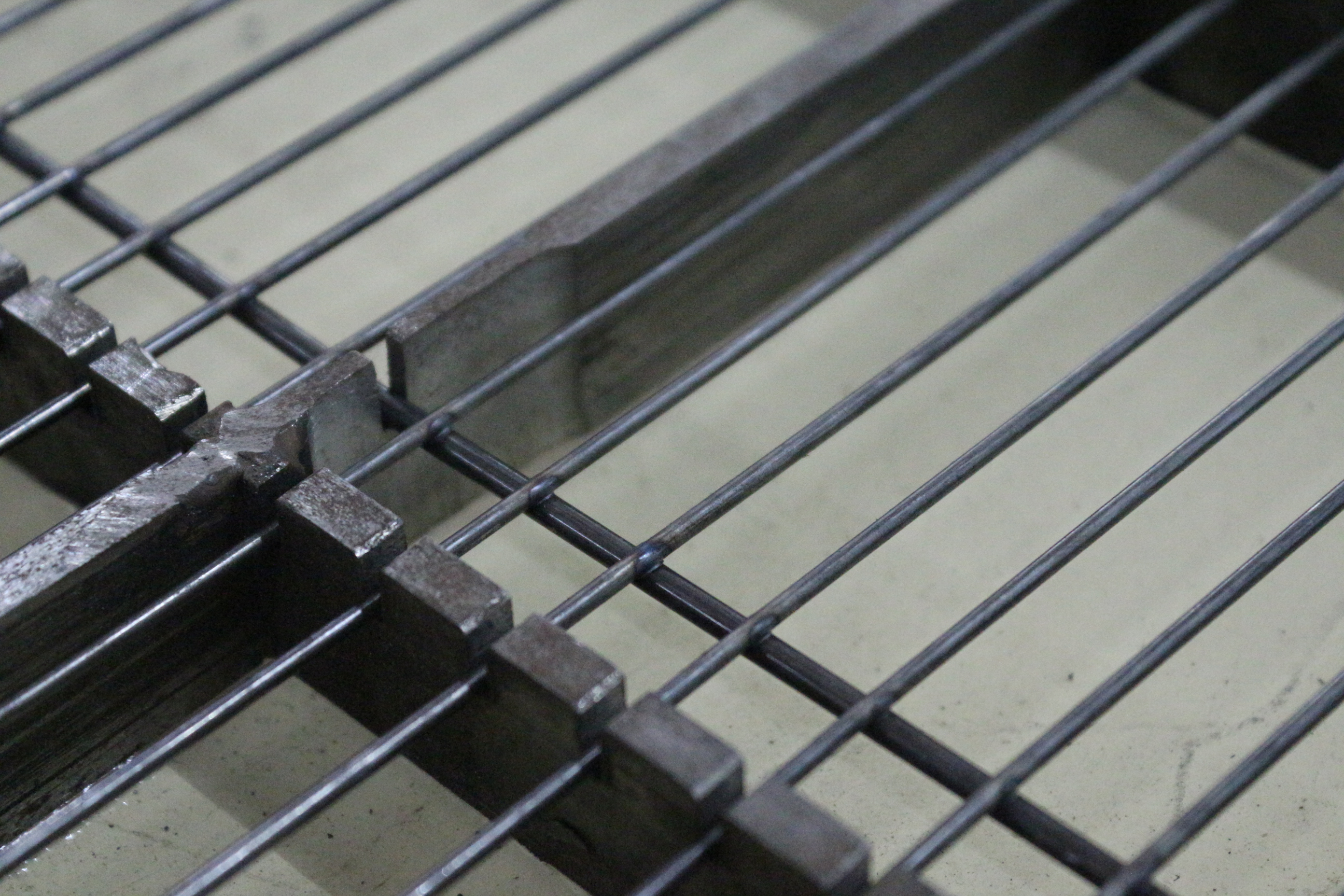

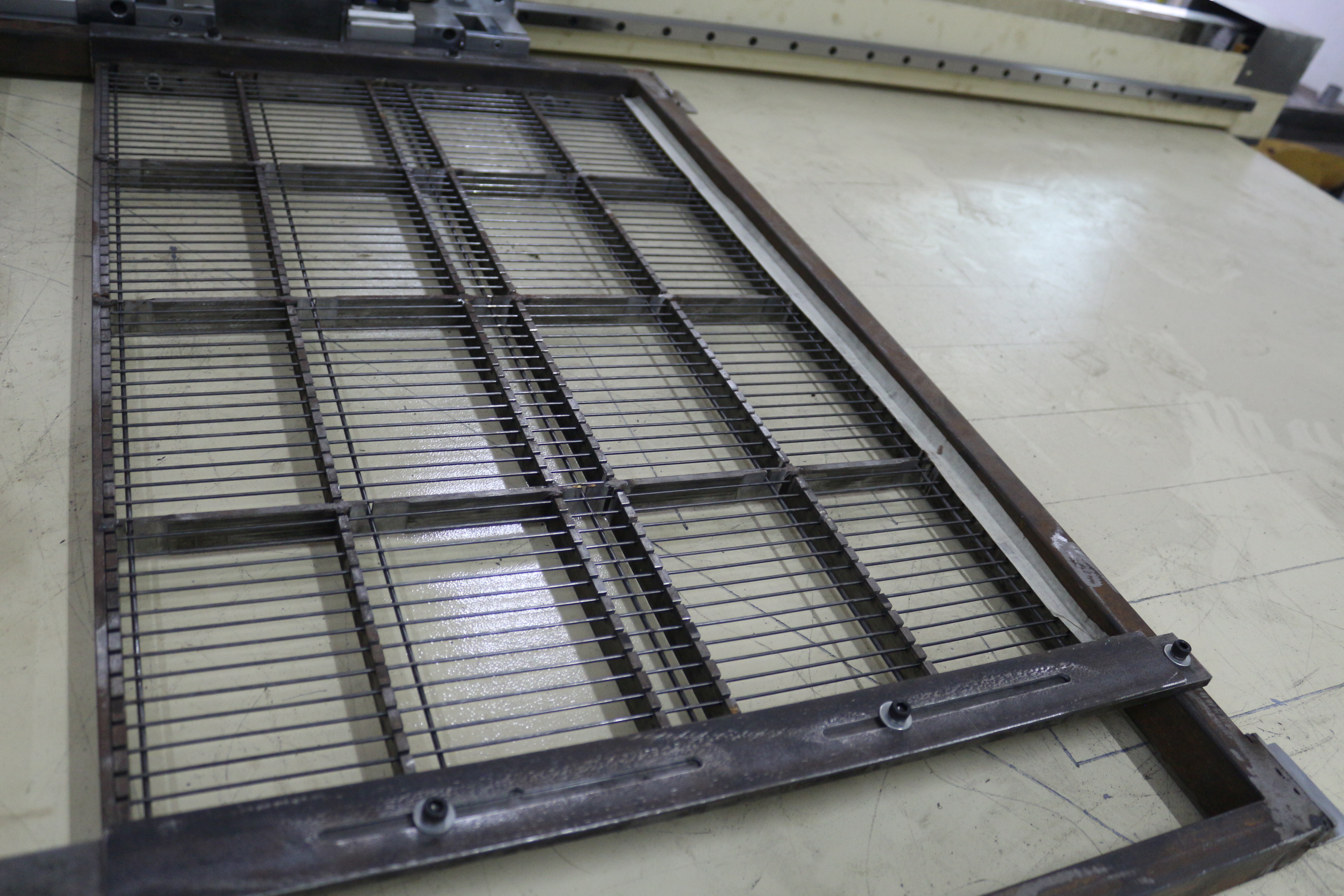

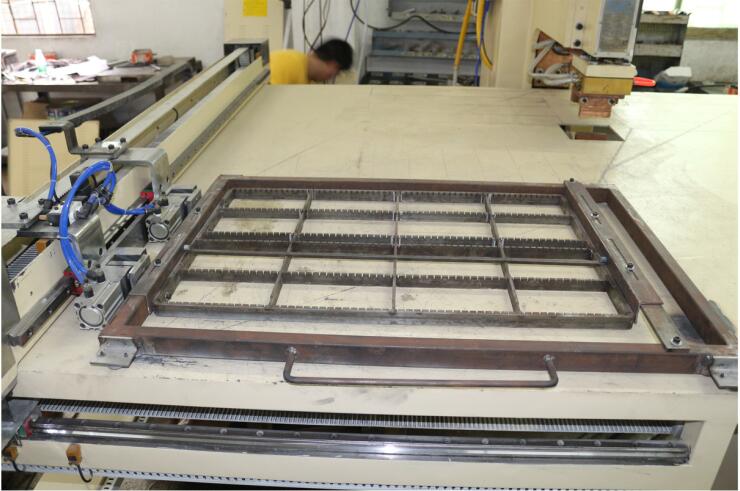

1. Semi-automatic feeding type: Manual place the precut wires into mesh mold, automatic step feeding to welding position and welding a row automatically, then automatic draw the mesh mold to next welding position and automatic welding until to finish a complete mesh, then mesh mold automatic back to origin and get out the mesh ;
2.The structure of the machine is simple, and the assembly is easy. Be able to match with different welding machines.
3. Adopt the servo motor to drive the X, Y axis to run in the PLC preset program. Max to store 5000 welding positions and 18 sets welding models (18 types of welding positions and welding current of wire mesh).
SPECIFICATION
| No. | Item |
WL-TSP-150K AC Pulsed Power Supply Or DC Inverter Power Supply |
| 1 | Input Voltage | two-phase 380V |
| 2 | Input Current | 65A |
| 3 | Output Voltage | 9.65V |
| 4 | Max Welding Current | 38000A |
| 5 | Welding Models | 18 types |
| 6 | Welding Positions | 5000 types |
| 7 | Different Welding Currents | 18 types |
| 8 | X Axis Effective Width | 1000mm |
| 9 | Y Axis Effective Width | 1000mm |
| 10 | Feeder Moving Speed | 0.5m/sec |
| 11 | Welding Cylinder | ￠160x100mm |
We have manufacturing different type of wire mesh welding machine for about 20 years, this one is a simple one , if you need higher automation machine , you are almost welcome to contact us for more information and welding video.
APPLICATION
Suitable for welding metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack ,Refrigerator Wire Rack , Wire Grill , Kitchen Wire Shelf, iron wire mesh, door reinforcing rib, air conditioner backboard etc.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Can custom design and manufacture based on customers' needs.
3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.
4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.
5. There are similar stock to show to customers when you come to visit.
6. Quick delivery: 15-30 days as we have spare parts stock.
7. Can do drop shipping: do proper export wood package and arrange shipment for customers.
