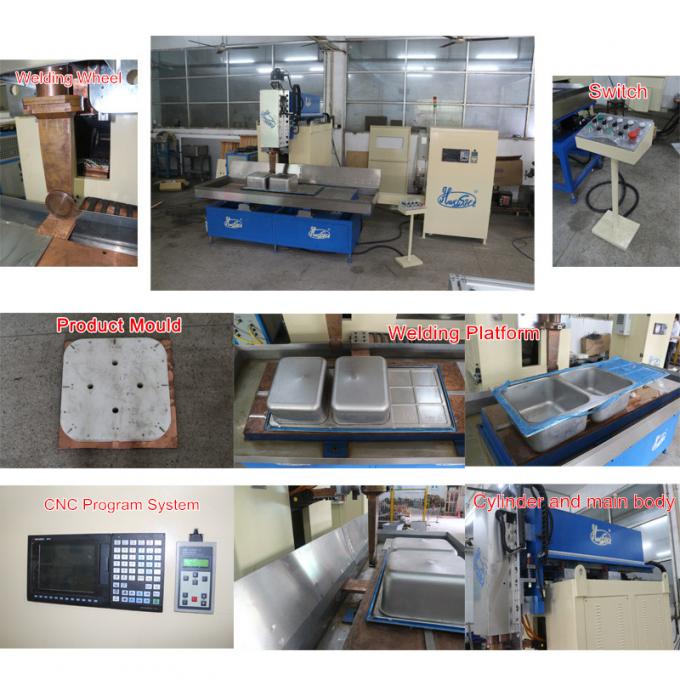

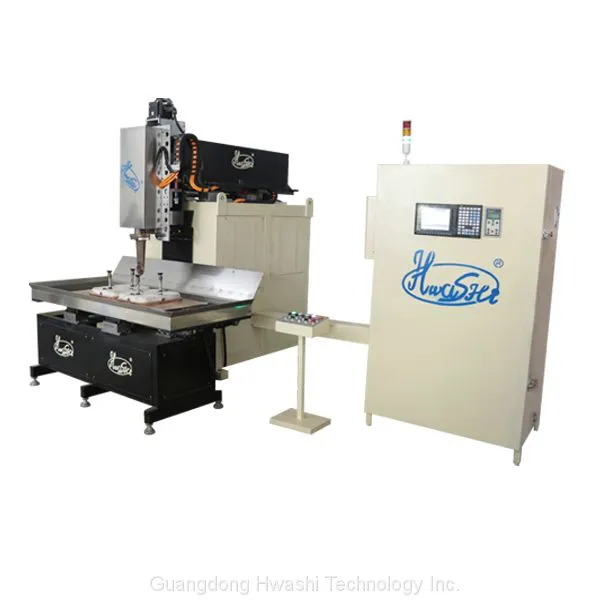

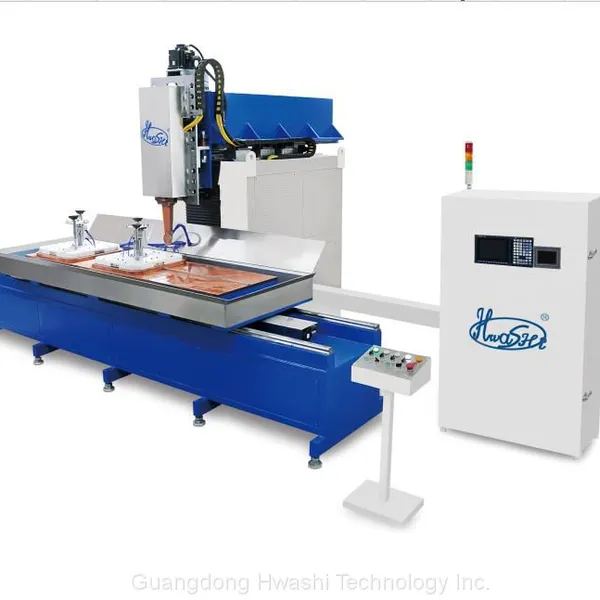

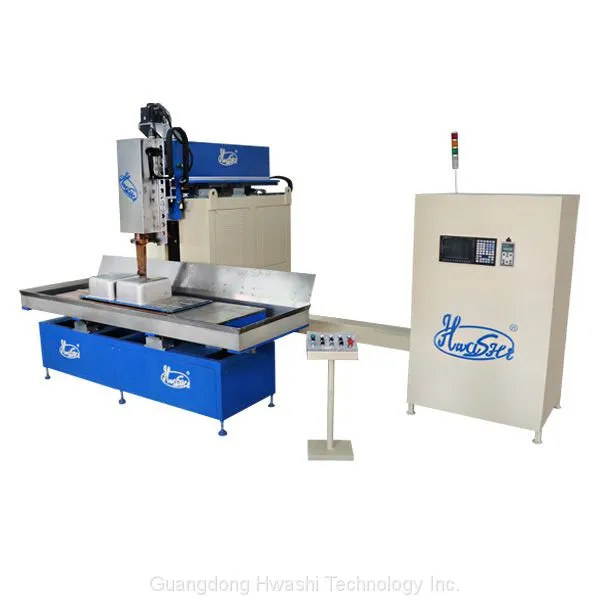

HWASHI Stainless Sink Basin Welding Machine ,Sink Making Machine
DESCRIPTION
Automatic Sink Seam Welding Machine has three servo motors, three-axis linkage. It utilizes the welding principle of seam resistance. It has welding electrode roller that rotates 360 degrees along the A rotation axis and 3-axis act at the same time.
Medium frequency inverter power supply system is adopted for ensuring good welding quality. Use professional PLC control system from Japan Mitsubishi brand. As long as inputting the data like coordinate data of sink position, welding current, etc., then the welding track will automatically finish welding product within the preset procedure after starting. Operator only need to put the work piece onto certain place and then take it away when finishing welding.
The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 620mm. The welding electrode moves from top to bottom within 250mm along the axle Z direction and be able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products.
FEATURE
Compared to common manual sink seam welding machine,this kind of CNC Sink Automatic Welding Machine can weld the sink with max length more than 2.5meter or 3meter,even more,the sink drainer board’s length is unlimited
CNC intelligent control,strong welding quality,well welding consistency,
good sink appearance;Automatic data sampling, automatic calibration function, using sampled data feedback, automatic determination to shape of sink and bowl’s welding track. Different shape,different size of bowl,welding arm and electrode can do the data collection and location automatically, feedback to the CNC controlling system and then CNC system sends the instruction to the welding arm and electrode,go on welding the sink in large quantity according to the shape and size of the basin.
Flat platform type lower welding electrode make sure the welding track on the surface much smaller, greatly saving the follow-up grinding and polishing processing time and cost, the more important point,it can avoid the conductive uneven phenomenon caused by rotating bearing bush rotation
SPECIFICATION
| Model | WL-AMF-160K Stainless steel automatic sink welding machine |
| Input Power | Single-phase 380V±10% 50Hz |
| Rated Capacity | 160kVA |
| Rated Duty Cycle | 25% |
| Maximum Secondary Floating Voltage | 9.5VAC |
| Max Secondary Short Circuit Current | 38000A |
| Diameter of Welding Wheel | 100-120mm |
| Width of of Welding Wheel | 3-5mm |
| Revolving Speed of Welding Wheel | 1800-4000mm/min Adjustable |
| Moving Range of Axis X | ≥1600mm |
| Moving Range of Axis Y | ≥600mm |
| Moving Range of Axis Z | ≥350mm |
| Rated Bleed Pressure | 0.8MPa |
| Consumption of Gas | 1m3/h |
| Pressure of Source of Water | 0.2Mpa |
Temperature of Source of Water | 10-20°C |
| Consumption of Cooling Water | 1000L/H |
APPLICATION

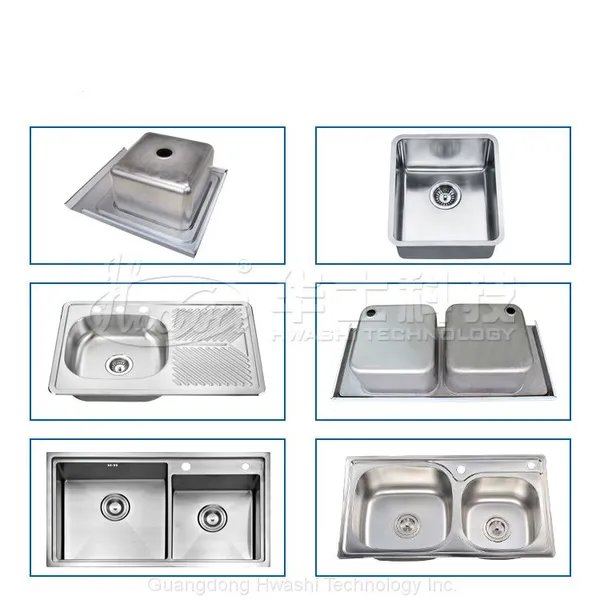

Suitable for sink welding within the range of 2500mm x 600mm. (customized)
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
