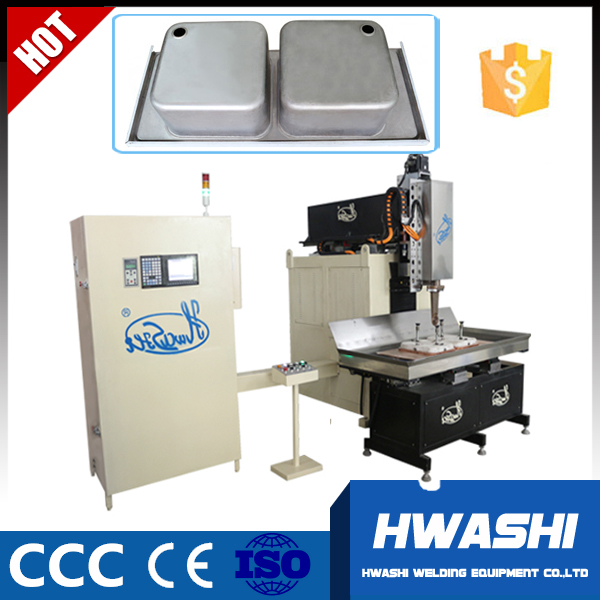

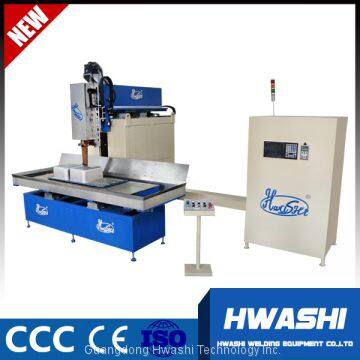

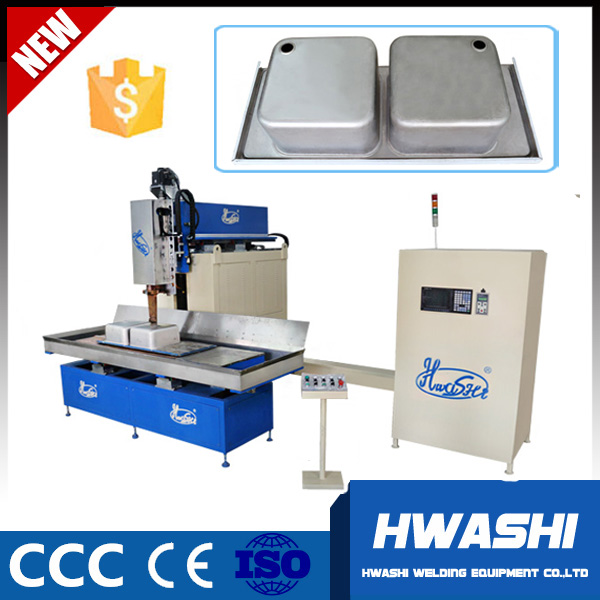

Stainless Steel Kitchen Sink , Double Bowl Sink Automatic Welding Machine
SPECIFICATION
| Model |
WL-AMF-160K Stainless steel automatic sink welding machine |
| Input Power | Single-phase 380V±10% 50Hz |
| Rated Capacity | 160kVA |
| Rated Duty Cycle | 25% |
| Maximum Secondary Floating Voltage | 9.5VAC |
| Max Secondary Short Circuit Current | 38000A |
| Diameter of Welding Wheel | 100-120mm |
| Width of of Welding Wheel | 3-5mm |
| Revolving Speed of Welding Wheel | 1800-4000mm/min Adjustable |
| Moving Range of Axis X | ≥1600mm |
| Moving Range of Axis Y | ≥600mm |
| Moving Range of Axis Z | ≥350mm |
| Rated Bleed Pressure | 0.8MPa |
| Consumption of Gas | 1m3/h |
| Pressure of Source of Water | 0.2Mpa |
|
Temperature of Source of Water |
10-20°C |
| Consumption of Cooling Water | 1000L/H |
APPLICATION
Suitable for welding the sink within the range of 1200x600x230mm(size of sink can be customized)

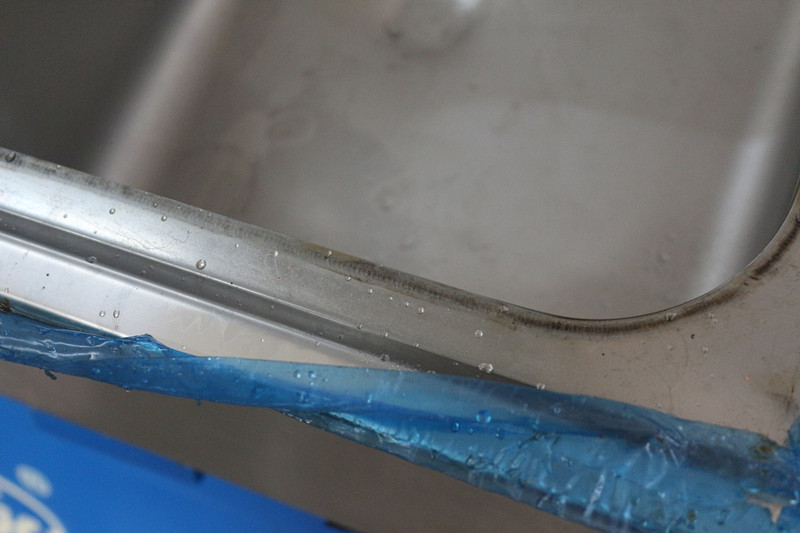

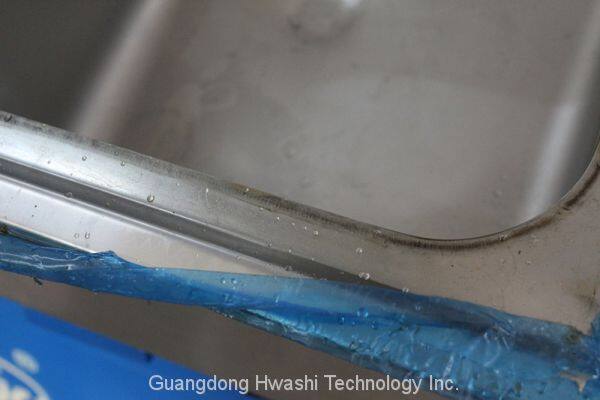

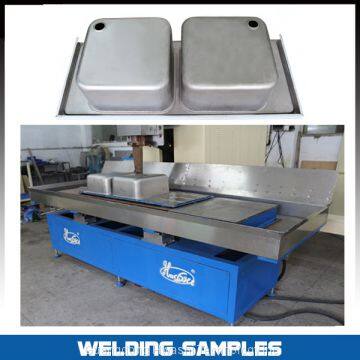

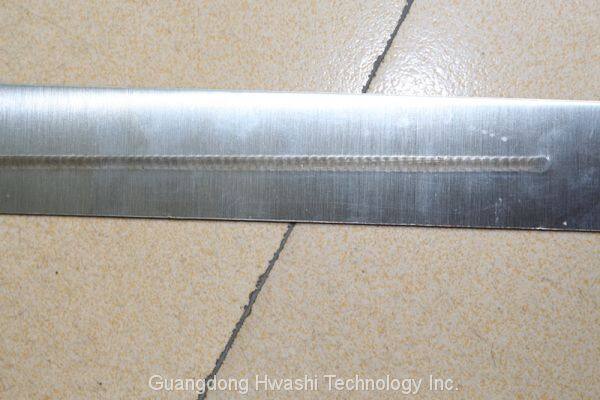

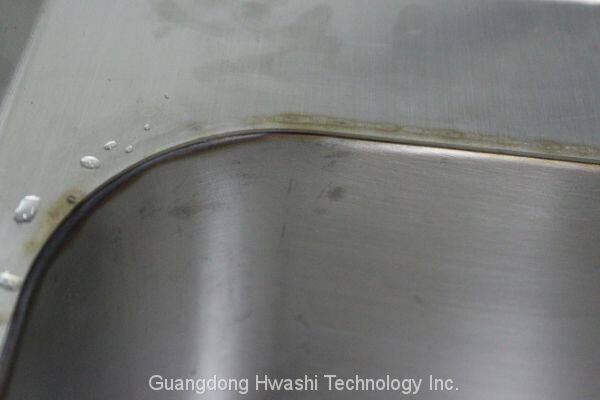

Welding samples Polishing sink

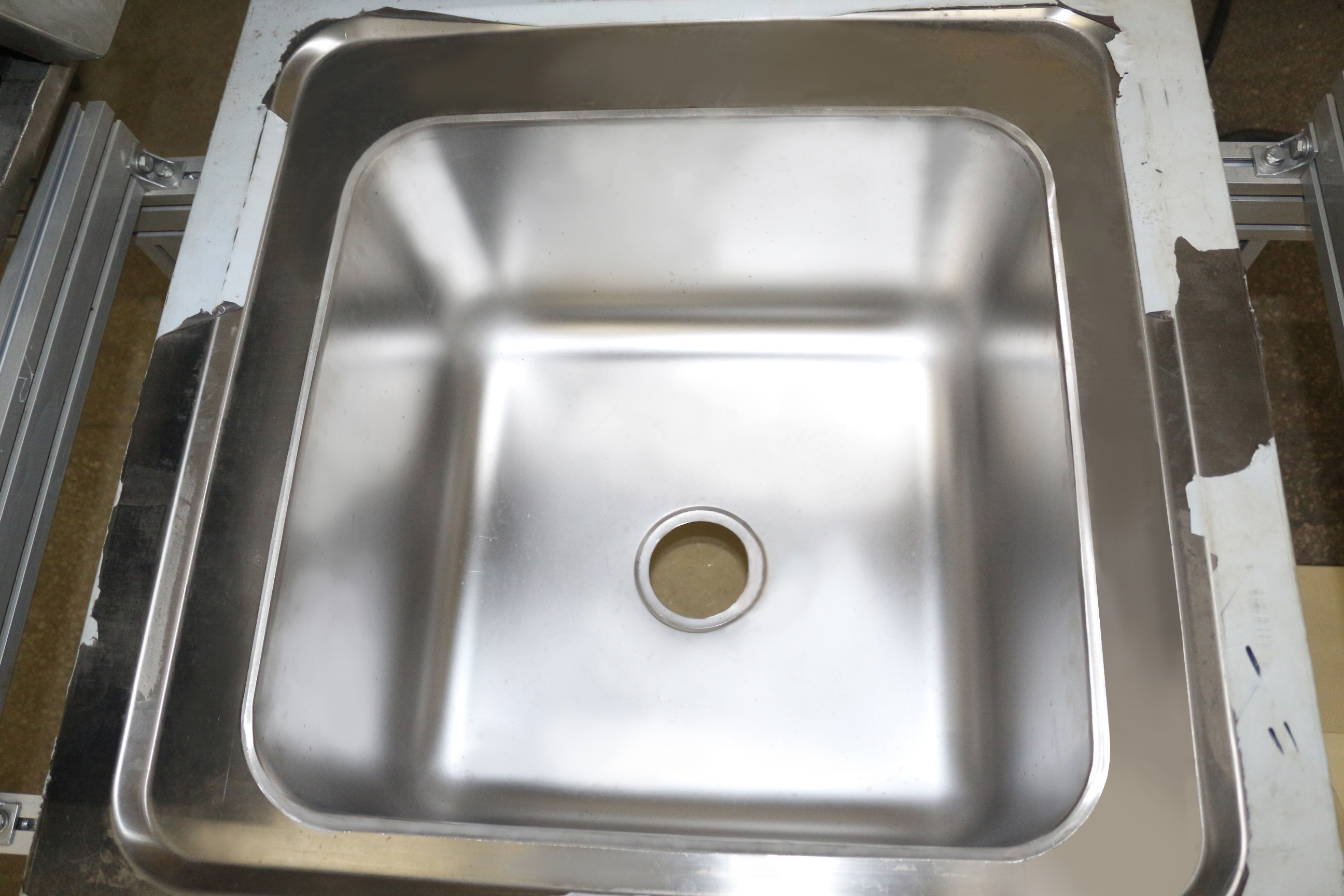

After polishing
DESCRIPTION
This CNC sink welding special machine utilizes the seam welding principle to replace the spot welding electrode with circle welding wheel. When the welding wheel rolls continuously or intermittently under continuous or intermittent current pulse, the welding seam which is composed of a series of welding spots will be formed. However, the distance between welding spots will be reduced which will make the nugget overlap with each other. When the overlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur. For the sake of ensuring the stability of welding quality, medium frequency inverter power source will be adopted. Adopt the professional automatic control system from Japan Mitsubishi, as long as inputting the data like coordinate data of the position of welding products, welding current, etc., then after turning on the machine, the welding track will automatically finish welding product within the preset procedure. The workers only need to put the work piece onto certain place and then take it away when finishing welding.
FEATURE
1. Adopt medium frequency inverter power source of welding and large flat platform of locating pattern.
2. Use the servo motor to drive axle X (locating mould) and axle Y (welding electrode) to operate under the preset procedure of PLC data.
3. It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).
4. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction and the moving area should be no more than 1200mm.
5. The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 620mm. The welding electrode moves from top to bottom within 250mm along the axle Z direction and be able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
