Metal Plate Robot Arm 6 Axis Robotic Spot Welding Machine With Servo Motor
SPECIFICATION
| Name | HS-RAW06 | ||
| Type | Standard Type | ||
| Structure | 6-axis, independent multiple articulation | ||
| Wrist Load | 6kg | ||

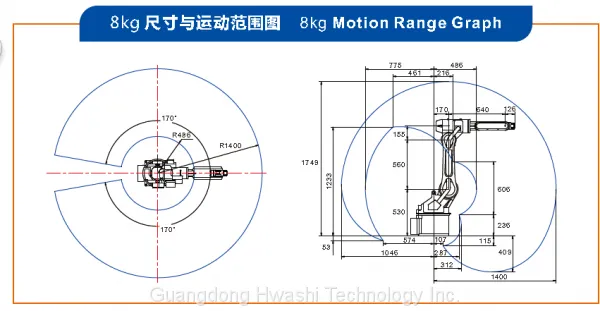

| Motion Range | Max Reaching Distance | 1437mm | |
| Min Reaching Distance | 404mm | ||
| Front and Back Motion Range | 1033mm | ||
|
Motion Speed |
Arm | Rotation | 225°/S |
| Lifting Arm | 225°/S | ||
| Stretching | 225°/S | ||
| Wrist | Rotation | 425°/S | |
| Bending | 425°/S | ||
| Reverse | 629°/S | ||
| Repeated Positioning Accuracy | Within ±0.08mm | ||
| Servo Motor | Total Power | 3400W | |
| Brake Specs | All shaft-driven brake | ||
| Installation | Normal | ||
| Weight | About 170kg | ||
DESCRIPTION
World Class Speed Robot

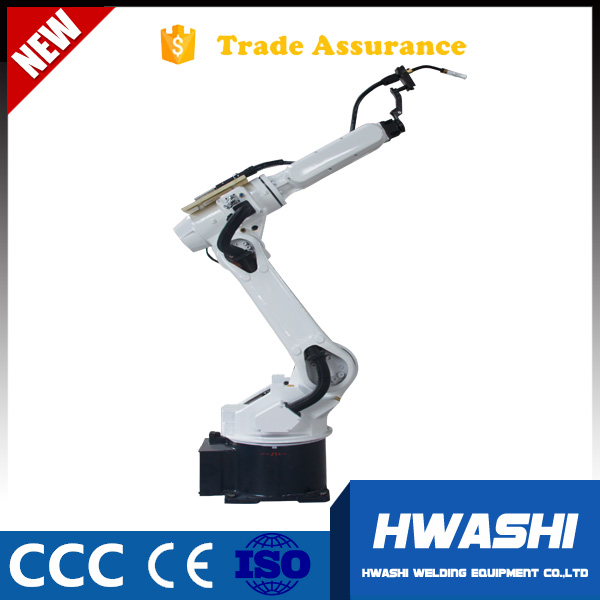

Robot arm model: HS-RAW06, be able to lift 6kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.
HS-RAW Series robot improves the accuracy and efficiency
Improved drives and motors for accurate positioning and better repeatability.
Slim and compact design allows closer installation in less floor space.
Maintainability is improved with easier inspections and parts replacement.
Superior Spot Welding Capability
Industry leading advanced servo gun software features and technologies.
Be able to select to install automatic tracking system by detecting the welding wire length changing so as to correct the heterotype product teaching difference and heat deformation influence during welding. Be able to achieve welding wave data management to store the data as file. Minimize the welding splash problem. By lowering the voltage to control the welding heat input so as to achieve high speed welding.

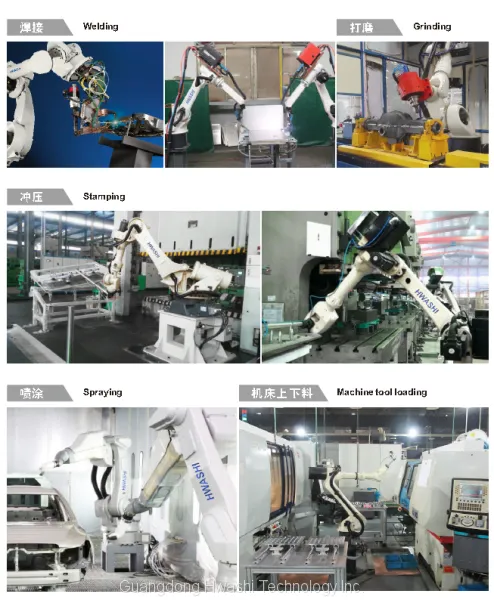

APPLICATION
Used to spot welding all kinds of metal products.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
