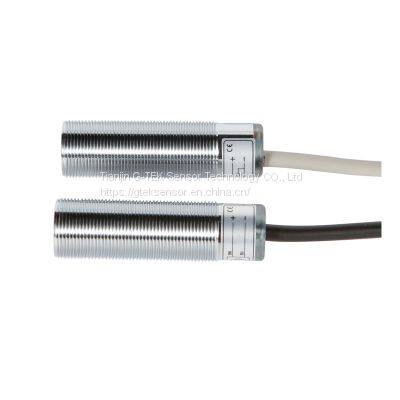

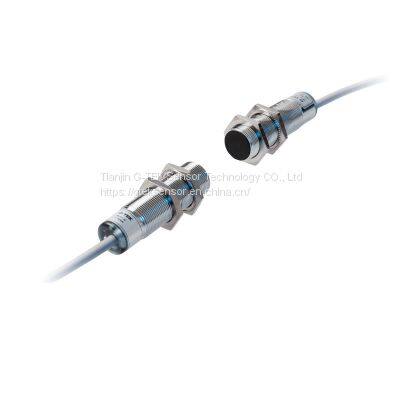

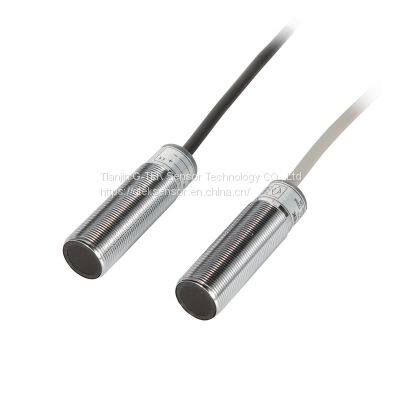

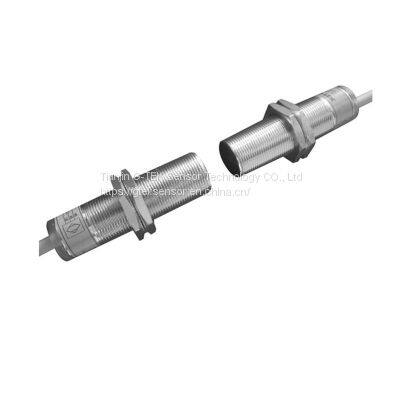

Help CenterIP67 PNP Infrared Opposed Photoelectric Sensor for Rolling Service Doors
Related Products
-
IP67 Infrared Through Beam Photoelectric Switch for Fire Related DoorsUS$ 13 - 15MOQ: 10 Sets -
Infrared Metal Head Photo Sensor for Industrial High Speed DoorsUS$ 13 - 15MOQ: 10 Sets
-
Through Beam Photo Sensor With 20m Distance for Security ShuttersUS$ 13 - 15MOQ: 10 Sets
-
IP67 NPN Infrared Through Beam Photo Sensor With CE CertificateUS$ 13 - 15MOQ: 10 Sets
-
Metal Head Opposed Optical Infrared Sensor for Insulated Sectional DoorsUS$ 13 - 15MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor | PM18T |
Detection type | Opposed type |
Detection object | MinΦ18mm opaque object |
Detection distance | 20m |
Supply voltage | 10-30v DC |
No-load current | Max.40MA |
Response time | Max.15ms |
Light | Infrared LED(modulated) |
Action mode | Selecting Light On/Dark On on product model basis |
Control output | NPN open collector，Load voltage: Max.30VDC， Load current: Max.150mA，Voltage drop: Max.0.7VDC； |
PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.150mA； | |
Indicator | Power indicator: Green；Action indicator: Red |
Protection circuit | Over-voltage、Short-circuit、Reverse polarity protection |
Ambient brightness | Sunlight: Max.11000lux Fluorescent: Max.3000lux |
Ambient temperature | －20℃~60℃ (No-freezing)，Storage: －25℃~70℃ |
Ambient humidity | 0~90%RH |
Housing material | Housing: Cu plated Ni plated Cr Lens: PMMA |
Shape and size | As dimension |
Cable | Emitter: Φ 5, 2×0.3mm²; Receiver: Φ5, 3×0.2mm² |
Protection rating | IP67 (IEC) |
Accessory | Screw |
Model | ||
Installation | Product Model | Detection Distance |
Opposed type | PM18T-2ND | 20m |
PM18T-2NL | 20m | |
PM18T-2PD | 20m | |
PM18T-2PL | 20m | |
