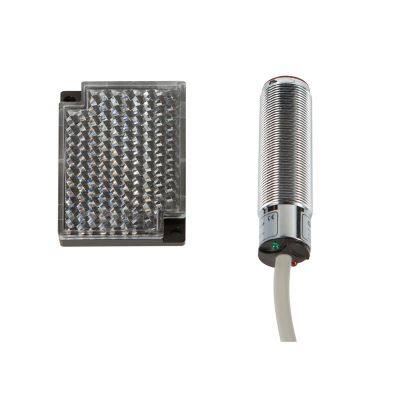

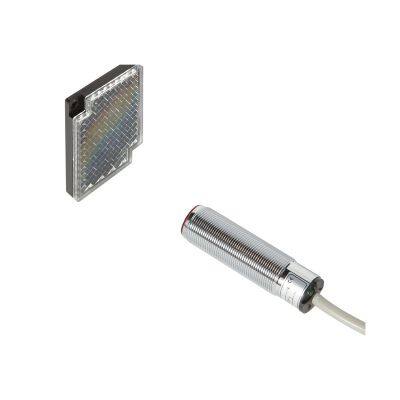

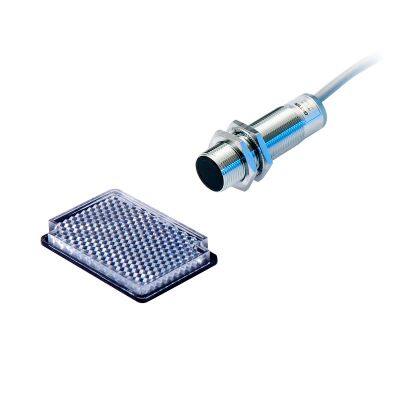

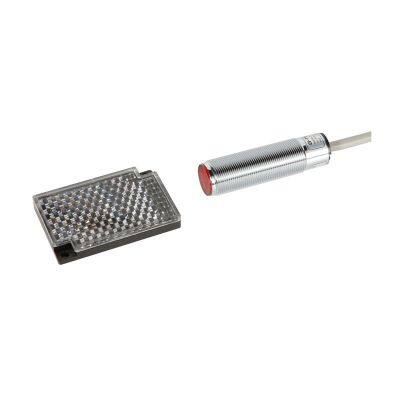

Help CenterIP67 Infrared PNP Retro-Reflective Photo Sensor for Swing Barrier
Related Products
-
NPN Infrared Safety Beam Photo Sensor Manufacturer With CE ApprovedUS$ 12 - 13MOQ: 10 Sets -
IP67 NPN Infrared Retro-Reflective Photoelectric Sensor Mill With CE CertificateUS$ 12 - 13MOQ: 10 Sets
-
PNP Infrared Bgs Cylinder Type Photoelectric Sensor for Swing BarrierUS$ 13 - 14MOQ: 10 Sets
-
Background Suppression Type Diffuse Reflection Photo Sensor for Optical TurnstileUS$ 13 - 14MOQ: 10 Sets
-
Infrared Background Suppression Photo Sensor for Flap Barrier Turnstile GateUS$ 13 - 14MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor | PM18R |
Detection type | Retro-reflective type |
Detection object | Translucent、opaque objects |
Detection distance | 0.1~3.5m (RP05) |
Supply voltage | 10-30v DC |
No-load current | Max.25MA |
Response time | Max.5ms |
Light | Infrared LED(Wave length:660nm) |
Action mode | Selecting Light On/Dark On on product model basis |
Control output | NPN open collector，Load voltage: Max.30VDC， Load current: Max.150mA，Voltage drop: Max.0.7VDC； |
PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.150mA； | |
Indicator | Power indicator: Green；Action indicator: Red |
Protection circuit | Over-voltage、Short-circuit、Reverse polarity protection |
Ambient brightness | Sunlight: Max.11000lux Fluorescent: Max.3000lux |
Ambient temperature | －20℃~60℃ (No-freezing)，Storage: －25℃~70℃ |
Ambient humidity | 0~90%RH |
Housing material | Housing: Cu plated Ni plated Cr Lens: PMMA |
Shape and size | As dimension |
Cable | Φ5，3×0.2mm² |
Protection rating | IP67 (IEC) |
Accessory | Screw , reflector (mirror) |
The detection distance is the range between the sensor and mirror and is measured
on Rp05 mirror basis.
Model | ||
Installation | Product Model | Detection Distance |
Retro—reflective type | PM18R-2ND | 0.1-3.5m |
PM18R-2NL | 0.1-3.5m | |
PM18R-2PD | 0.1-3.5m | |
PM18R-2PL | 0.1-3.5m | |
