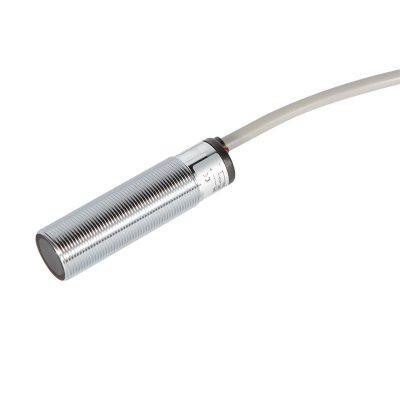

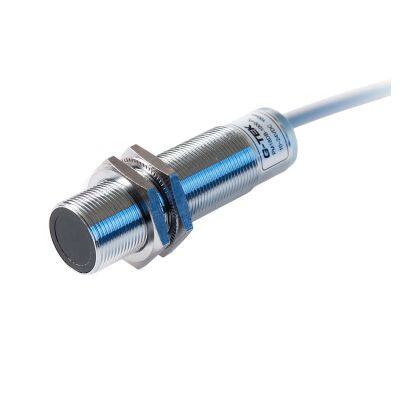

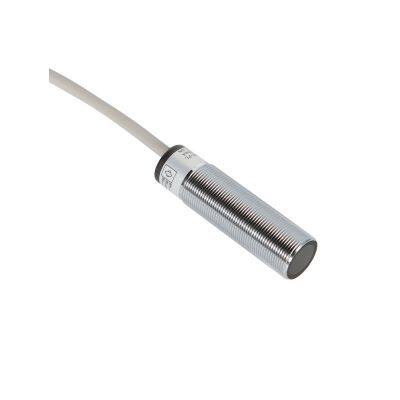

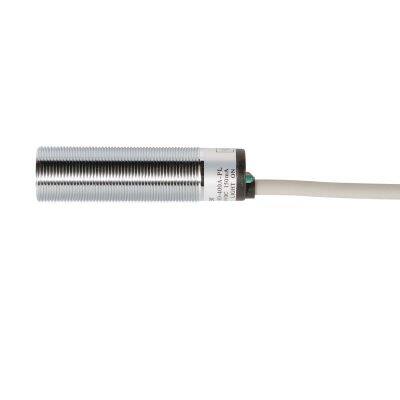

Help CenterBackground Suppression Type Diffuse Reflection Photo Sensor for Optical Turnstile
Related Products
-
Infrared Background Suppression Photo Sensor for Flap Barrier Turnstile GateUS$ 13 - 14MOQ: 10 Sets -
PNP Background Suppression Infrared Cylinder Type Optical Sensor ManufacturerUS$ 13 - 14MOQ: 10 Sets
-
IP67 NPN Infrared Background Suppression Cylinder Type Photoelectric SwitchUS$ 13 - 14MOQ: 10 Sets
-
IP67 1.2m Infrared Background Suppression Metal Head Optical SensorUS$ 13 - 14MOQ: 10 Sets
-
NPN Background Suppression Type Infrared Photo Sensor With 1.2m DistanceUS$ 13 - 14MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor | PM18D |
Detection type | Diffused type |
Detection object | Min Φ60mm opaque object |
Detection distance | 100mm、400mm (200×200mm² white paper plate) |
Supply voltage | 10-30v DC |
No-load current | Max.40mA |
Response time | Max.5ms |
Light | Infrared LED(modulated) |
Action mode | Selecting Light On/Dark On on product model basis |
Control output | NPN open collector，Load voltage: Max.30VDC， Load current: Max.150mA，Voltage drop: Max.0.7VDC； |
PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.150mA； | |
Indicator | Power indicator: Green；Action indicator: Red |
Protection circuit | Over-voltage、Short-circuit、Reverse polarity protection |
Ambient brightness | Sunlight: Max.11000lux Fluorescent: Max.3000lux |
Ambient temperature | －20℃~60℃ (No-freezing)，Storage: －25℃~70℃ |
Ambient humidity | 0~90%RH |
Housing material | Housing: Cu plated Ni plated Cr Lens: PMMA |
Shape and size | As dimension |
Cable | Φ5，3×0.2mm² |
Protection rating | IP67 (IEC) |
Accessory | Screw |
Model | ||
Installation | Product Model | Detection Distance |
Diffused type | PM18D-100-ND | 100mm |
PM18D-100-NL | 100mm | |
PM18D-100-PD | 100mm | |
PM18D-100-PL | 100mm | |
PM18D-400A-ND | 400mm | |
PM18D-400A-NL | 400mm | |
PM18D-400A-PD | 400mm | |
PM18D-400A-PL | 400mm | |
