Hot Dip Galvanized Barbed BTO 22 Razor Wire 5-25kg / Roll Packing Weight

Hot Dip Galvanized Barbed BTO 22 Razor Wire 5-25kg / Roll Packing Weight

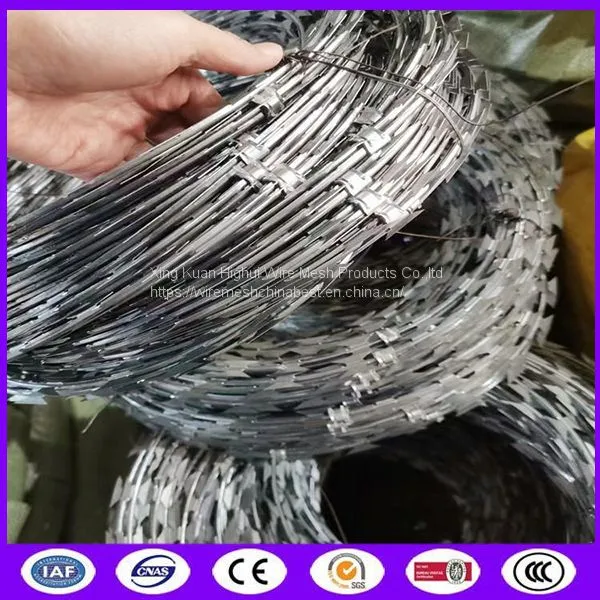

Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind
of modern security fencing materials with better protection and fencing strength made
of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp
blades and strong core wire, razor barbed wire has the features of secure fencing, easy
installation, age resistance and other properties.

1. Material: High carbon steel, galvanized steel sheet and wire, stainless steel sheet
and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.
2. Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.
3. Razor wire types: straight line razor wire, single coil concertina wire, double coil wire,
welded razor mesh fence.1. Material: Iron ,steel or stainless steel
4. Razor Loop Diameter:
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
5. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 5KG 7KG 10KG, 12kg, 14kg 15 kg )
6. Meters of per coil Razor Barbed Wire:
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.

7. Application
    Industrial and mining enterprises
    garden apartment
    border posts
    military field
    prisons
    detention center
    government buildings
    other national security facilities.
8. Package:

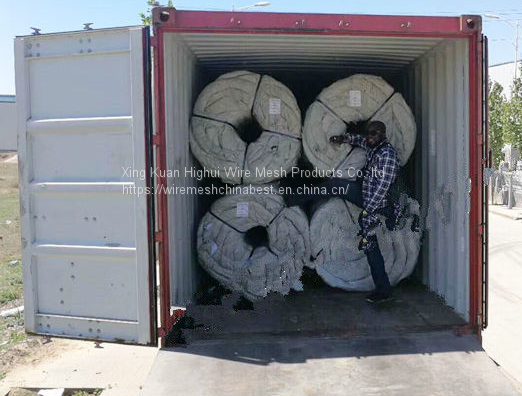

1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.
2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.
3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.
9. Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane

10. Trade Terms

Trade terms: FOB, CNF, CIF,

Payment terms: 30%T/T as deposit , L/C, Western Union,

MOQ:20tons

Port: TIANJIN

Sample time: 1-3days

Lead time: 10days depend on the final order quantity

Shipment: By sea or airport

Supply capability:600tons/month

Popular size :

  Hot dipped galvanized cross type razor wire.
    Blade type: BTO-10.
    Core wire: 2.50 mm.
    Coil diameter: 95 cm.
    Coil weight: 15 kg.
    Blade thickness: 0.50 mm.
    Clips: 5 tie clips.
    Zinc coat: 120 g/m2.
    Tensile strength: 160 kg/mm2.
    Packing: Wrapped with waterproof paper and then wrapped with woven bag.
Barbed wire razor type.
    Material: stainless steel 304.
    Type: BTO-18.
    Covering surface: 1.2 kg/linear meter.
    Blade thickness:0.5 ± 0.05 mm.
    Line diameter: 2.5 ± 0.1 mm.
    Long knives: 18 ± 1 mm.
    Wide knife: 15 ± 1 mm.
    Knife spacing: 35 ± 1 mm.
Single razor wire.
    Material: hot dipped galvanized steel and stainless steel.
    Blade type: CBT-65.
    Outside diameter: 450 mm.
    Number of loops: 33.
    Length of coil: 7 m - 8 m.
Razor barbed wire.
    Blade type: BTO-22, CBT-60 and CBT-65.
    Material: hot-dipped galvanized steel.
    Wire diameter: 2.5 mm.
    Thickness: 0.5 mm.
    Coil diameter: 600 mm.
    Length: 12 m.
