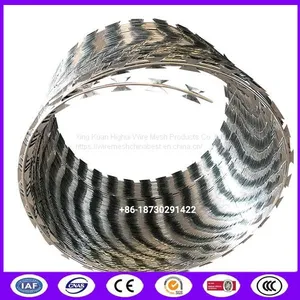

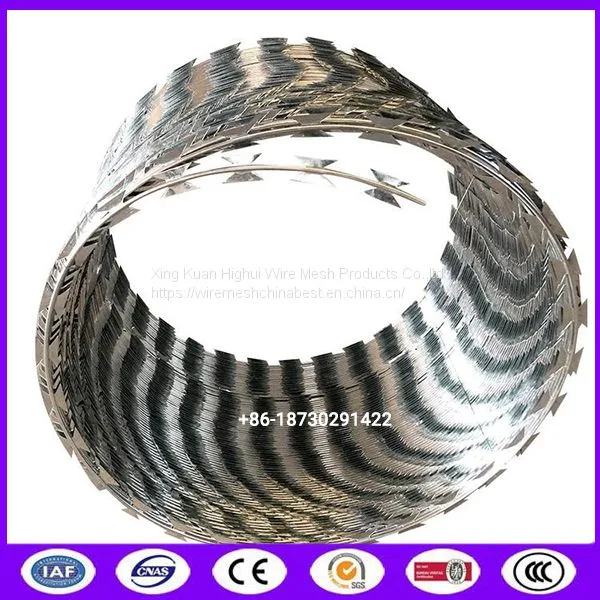

Serpentine Fence Cross Flat Blade Concertina Razor Wire BTO-22
Razor Barbed Wire Description
Razor barbed wire is also called razor barbed wire. It is made of hot-dip galvanized steel or stainless steel sheet punched out of sharp blade shape, high-tensile galvanized steel wire or stainless steel wire as a core wire combination. Because the gillnet has a unique shape and is not easy to touch, it can achieve an excellent protective isolation effect. The razor wire fence is a new type of protective net, which is formed by cross-welding razor-shaped linear barbed wire. It is mainly used for the enclosure protection of garden apartments, government agencies, prisons, outposts, border defenses, etc.; it can also be used for anti-theft windows, high-speed guardrails, and isolation fences.
Razor Barbed Wire Features:
a. The protection performance is excellent and it is almost impossible to climb.
b. High-strength steel wire is difficult to cut.
c. The powerful safety fence is neat and beautiful.
d. Installation is very simple and can be quickly formed.
e. Good deterrent effect.
f. Anti-corrosion, anti-aging, sun resistance, weather resistance, etc.
Treatment process:

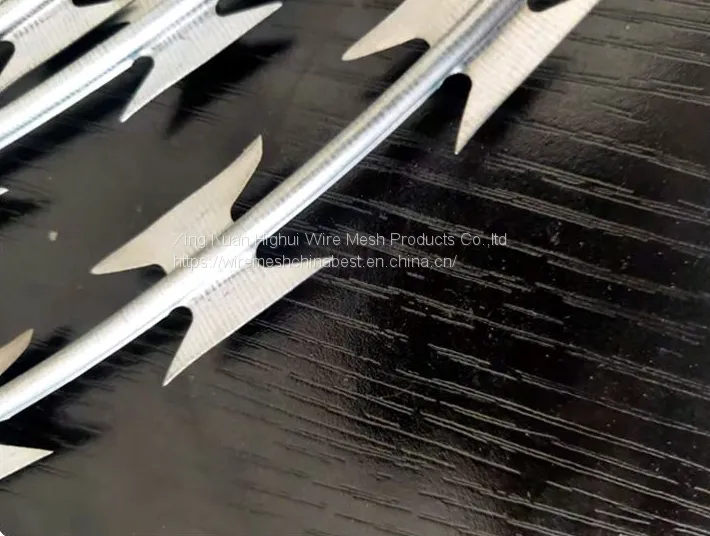

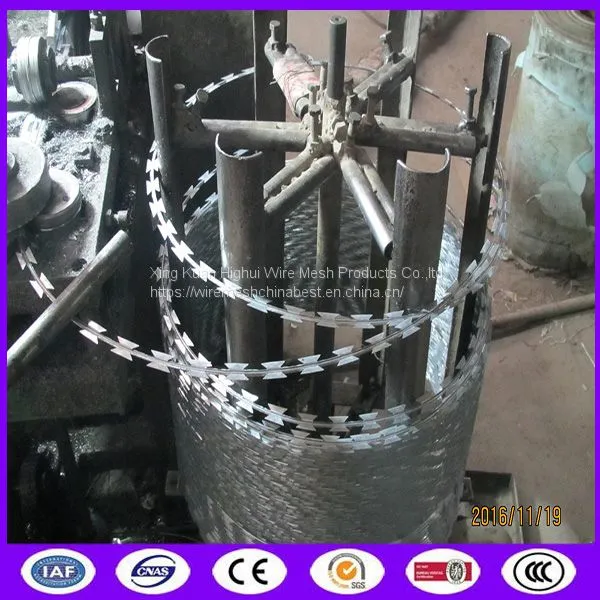

The steel plate (knife board) is stamped and formed and attached to the hot-dip galvanized steel wire (core wire). The blade is made of sharp-pointed galvanized steel or stainless steel sheet, and the high-tensile steel wire is used as the core wire.
Main categories:

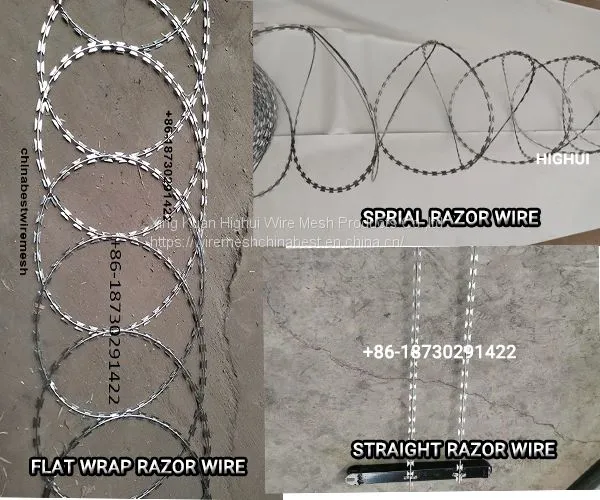

According to different installation methods, razor wire fence can be divided into (snake-belly) spiral razor wire fence, linear razor wire fence, flat razor wire fence and so on.
Spiral razor wire fence
Spiral razor nets are also called snake belly nets. They are divided into two types: single-turn razor nets and spiral cross razor nets. The single-turn razor wire does not need a clamp and is installed in its natural unfolded form. Spiral cross-type razor wire is strongly clamped between two razor wires with stainless steel sheet and galvanized steel sheet. After unfolding, it becomes a cross shape, which is beautiful and practical.
Flat razor wire fence
Flat-type razor wire is a new application method of razor wire. It is to flatten a single-turn razor wire into a plate shape, or to flatten two pieces of single-turn razor wire and cross and use them in a wrong way. The appearance is beautiful. Moreover, it is practical and can be used with the linear razor wire to form a protective wall with a straight line and a flat plate, or only a flat-plate gill net to form a protective wall. It is mainly used in communities, warehouses, animal husbandry factories, farms, mines, prisons, national defense areas, etc.
Straight razor wire fence
Straight razor barbed wire is also called welded razor barbed wire. It is formed by cross welding of razor-shaped straight barbed wire. If someone wants to climb over, the net-like razor wire has sharp blades, which cannot be held by hands or climbed by feet. The protective wall has a strong intimidation and deterrent effect, which is both beautiful and practical. Mainly used in airports, military bases, substations, various fences, oil depots, factories and other fields.
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 |
| Specification |
Thickness (mm)
|
Wire Dia. (mm)
|
Barb Length (mm)
|
Barb Width (mm)
|
Barb spacing (mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
Concertina Cross Razor Wire Practical Application
Concertina Cross Razor Wire fix on the resident wall, increasing the height of the wall, while the presence of the blade on the product to make it difficult to cross, and enhance the community's security. To protect our property and lives of the people there are great role.
