Dannert Razor Barbed Wire Military Prison Barriers Large Coil Blade Wire Fence
Dannert Razor Barbed Wire Brief introduction :

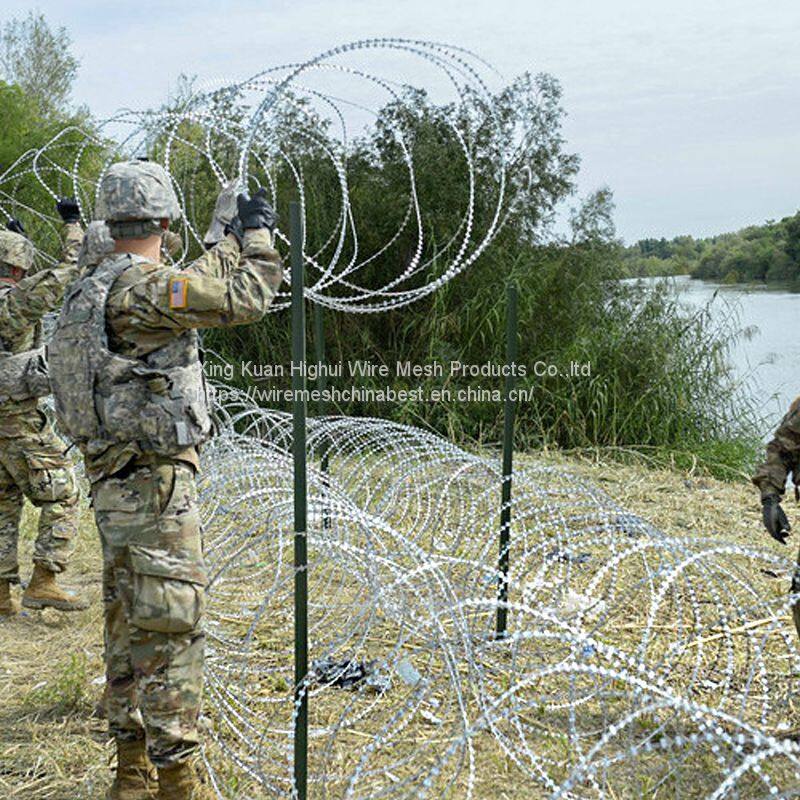

1.Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire and steel pickets, it is used to form military wire obstacles.
During World War I soldiers manufactured concertina wire themselves, using ordinary barbed wire. Today, it is factory-made

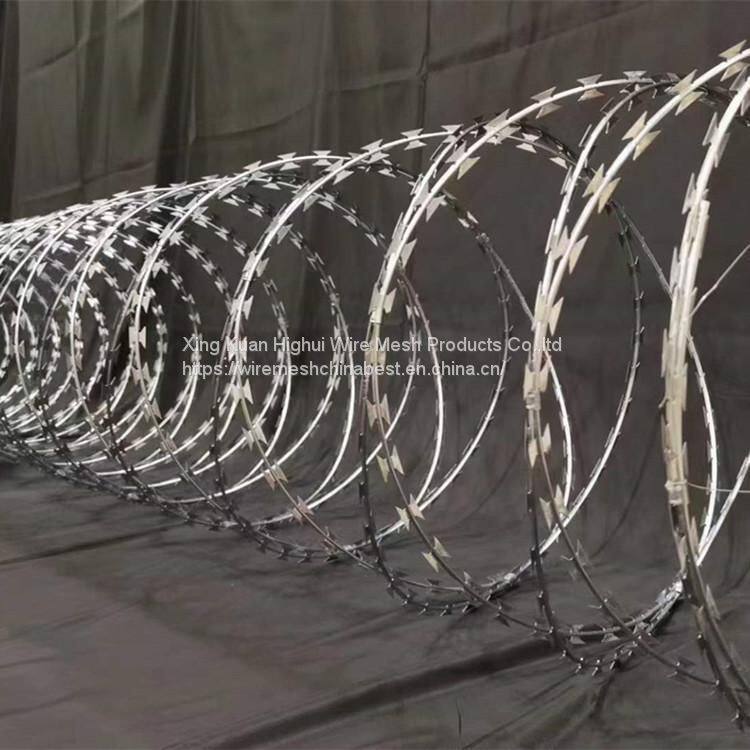

Dannert razor wire fencing is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape. And the core wire is high tension galvanized iron wire, or stainless steel wire,plastic barbed wire.1. Material: High carbon steel, galvanized steel sheet and wire, stainless steel sheet
and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.
2. Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.
3. Razor wire types: straight line razor wire, single coil concertina wire, double coil wire,
welded razor mesh fence.1. Material: Iron ,steel or stainless steel
4. Razor Loop Diameter:
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
5. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 5KG 7KG 10KG, 12kg, 14kg 15 kg )
6. Meters of per coil Razor Barbed Wire:
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.
7. Application
Industrial and mining enterprises
garden apartment
border posts
military field
prisons
detention center
government buildings
other national security facilities.
8. Package:
1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.
2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.
3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.
9. Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane
Popular balde :
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
|---|---|---|---|---|---|---|
| 1 | BTO-10 | 0.6±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| 2 | BTO-22 | 0.6±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| 3 | CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 |
| Specification |
Thickness (mm)
|
Wire Dia. (mm)
|
Barb Length (mm)
|
Barb Width (mm)
|
Barb spacing (mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
