Industrial Corrosion Resistant Security Barbed Wire With Sharp Blades from china supplier
From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire ,stainless steel razor barbed wire .
Compare the three material regarding zinc coating weight :
Electric Galvanized Razor Barbed Wire＜Hot Dipped Galvanized Razor Barbed Wire＜High Galvanized Razor Barbed Wire.
1. Material: Iron ,steel or stainless steel
2. Core Wire Diameter: 2.7±0.1mm or 2.5+-0.1mm, 2.4+-0.1mm,2.3+-0.1mm ,2.0+-0.1mm ( customerized )
Razor Barbed sheet thickness: 0.5±0.05mm,0.4+-0.05mm(customerized )
3. Razor Loop Diameter:
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 5KG 7KG 10KG, 12kg, 14kg 15 kg )
5. Meters of per coil Razor Barbed Wire:
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.
6. Application
Industrial and mining enterprises
garden apartment
border posts
military field
prisons
detention center
government buildings
other national security facilities.

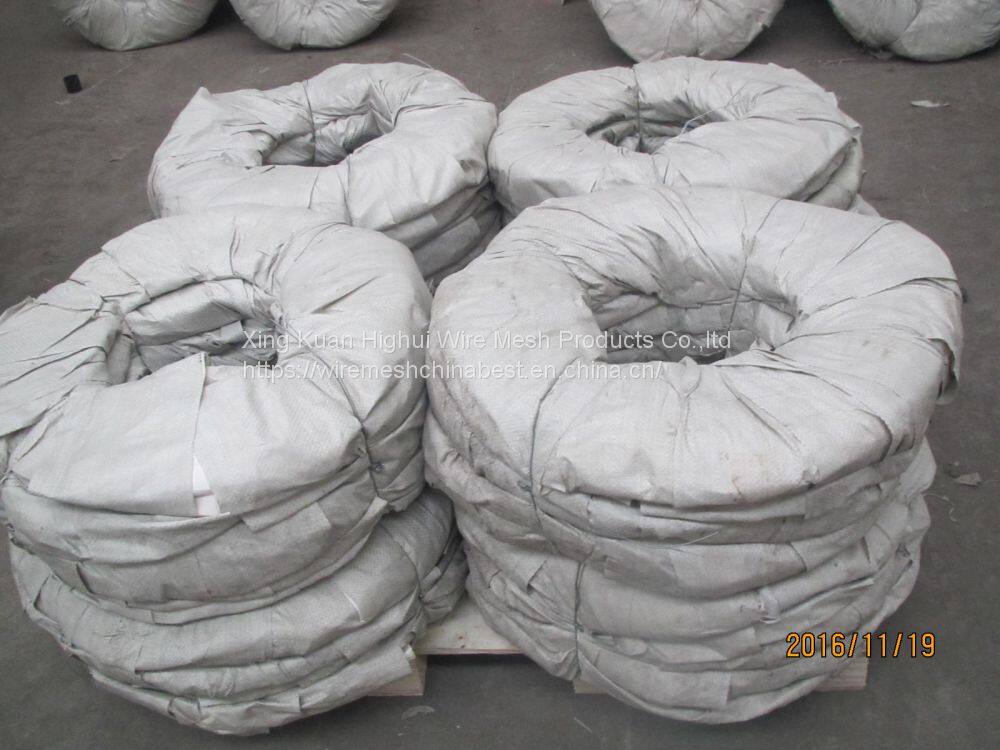

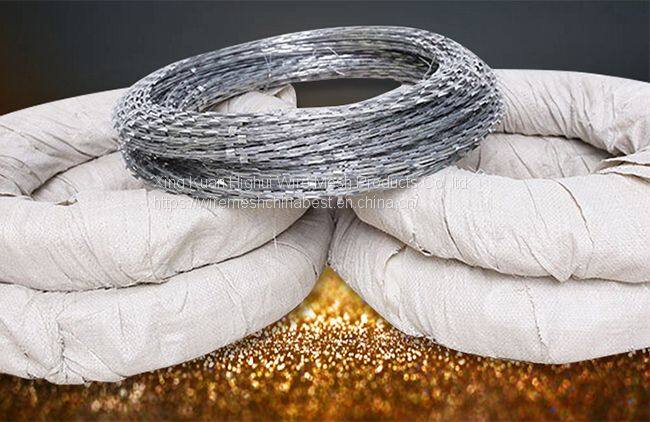

7. Package:
1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.
2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.
3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.
8. Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 |
| Specification |
Thickness (mm)
|
Wire Dia. (mm)
|
Barb Length (mm)
|
Barb Width (mm)
|
Barb spacing (mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
