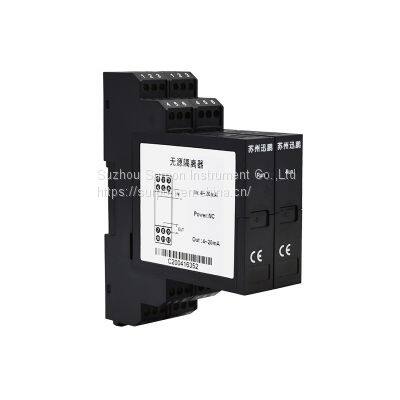

XP Series Input Loop Powered Isolator (one input one output, two inputs two outputs) is an instrument used in automatic control system to isolate and transfer industrial signals. It can cooperate with various industrial sensors and field instruments to meet users' needs of monitoring remote data. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.
Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

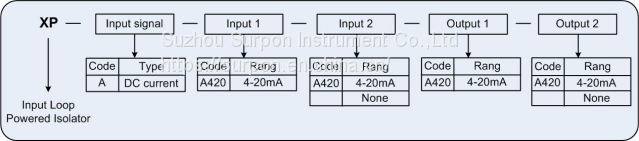

XP Series Input Loop Powered Isolator code table：
Examples of ordering
Refer to the code table above and provide the model number correctly.
Example 1 input: one channel 4-20mA, output: one channel 4-20mA
order model: XP-A-A420-A420
Example 2 input: two channels 4-20mA, output: two channels 4-20mA
order model: XP-A-A420-A420-A420-A420（abbreviated as: XP-A-2A420-2A420）
Min Qu
Tel:86-512-68381939
Mob:86-18962116539
Suzhou Surpon Instrument Co., Ltd.
