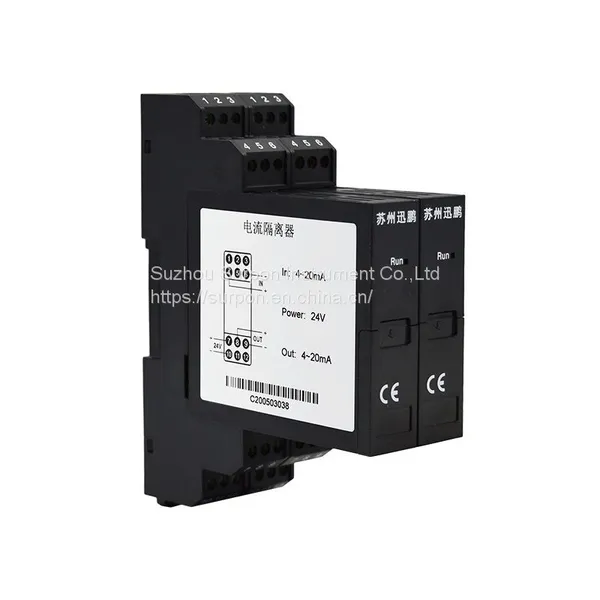

XP Series Signal Isolator (one input one output, one input two outputs) is an instrument used in automatic control system to transmit, convert, isolate, transfer and calculate industrial signals. It can cooperate with various industrial sensors and field instruments to meet users' needs of monitoring remote data. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.
Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

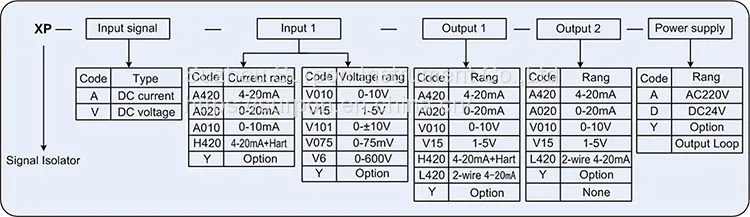

XP Series Signal Isolator code table：
Examples of ordering
Refer to the code table above and provide the model number correctly. Example 1 input: one channel 4-20mA, output: two channels 4-20mA, power supply: 24VDC
order model: XP-A-A420-A420-A420-D（abbreviated as: XP-A-A420-2A420-D） Example 2 input: one channel 4-20mA, output: one channel 0-10V, power supply: 24VDC
order model: XP-A-A420-V010-D
Example 3 input: one channel 2-10V, output: one channel 4-20mA, power supply: 24VDC
order model: XP-V-Y-A420-D（Y=2-10V）
Example 4 input: one channel 4-20mA, output: one channel 2-wire 4-20mA, power supply: output loop
order model: XP-A-A420-L420
