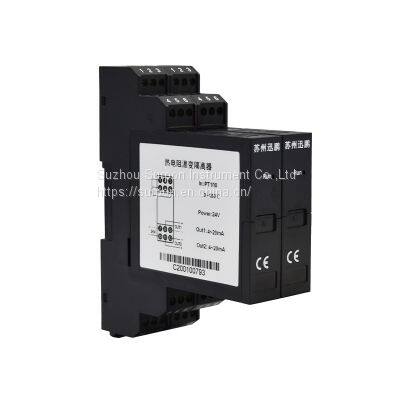

XP Series RTD Isolated Transmitter

XP Series RTD Isolated Transmitter (one input one output, one input two outputs) makes use of the characteristic that the resistance value of RTD (Pt100, Cu50, Pt1000, Ni1000, etc.) changes with the temperature, receives RTD signal from the industrial field, and converts into a standard process signal that have a linear relationship with the temperature. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.

Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

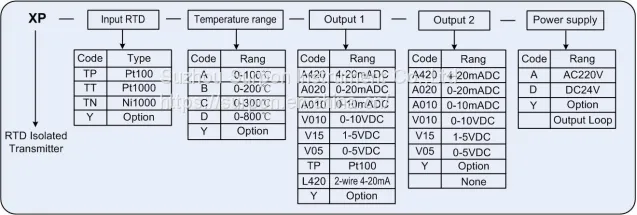

XP Series RTD Isolated Transmitter code table：

Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: Pt100, 0-200℃, output: one channel 4-20mA, power supply: 24VDC

           order model: XP-TP-B-A420-D

Example 2  input: Pt100, 0~100℃, output: two channels 4-20mA, power supply: 24VDC

           order model: XP-TP-A-A420-A420-D（abbreviated as: XP-TP-A-2A420-D）

Example 3  input: Pt1000, 0~150℃, output: two channels 4-20mA, power supply: 24VDC

           order model: XP-TT-Y-A420-A420-D（Y=0~150℃）（abbreviated as: XP-TT-Y-2A420-D）

Example 4  input: Ni1000, -50~130℃, output: one channel 2-wire 4-20mA, power supply: output loop

           order model: XP-TN-Y-L420（Y=-50~130℃）
