XP Series RTD Signal Isolator (one input one output, one input two outputs) receives the 3-wire Pt100, Cu50, Pt1000 and other types RTD signal from the industrial field, outputs 1:1 RTD signal after isolation. The RTD output can be wired as 2-wire system, 3-wire system or 4-wire system. It can convert RTD signal into a standard process signal that have a linear relationship with the temperature. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.
Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

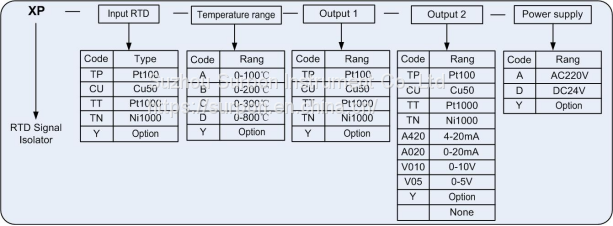

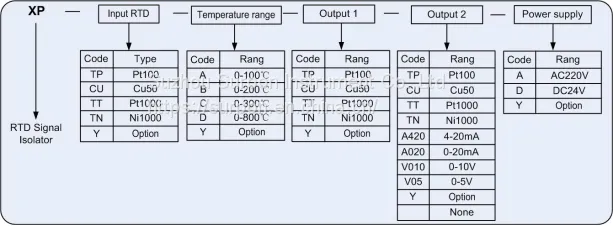

XP Series RTD Signal Isolator code table：
Examples of ordering
Refer to the code table above and provide the model number correctly.
Example 1 input: Pt100,0-200℃, output: one channel Pt100, power supply: 24VDC
order model: XP-TP-B-TP-D
Example 2 input: Pt100,0-100℃, output 1: PT100, output 2: 4-20mA, power supply: 24VDC
order model: XP-TP-A-TP-A420-D
Example 3 input: Pt100,0-150℃, output 1: PT100, output 2: Pt100, power supply: 24VDC
order model: XP-TP-Y-TP-TP-D（Y=0-150℃）（abbreviated as: XP-TP-Y-2TP-D）
