XP Series Resistance Isolated Transmitter (one input one output, one input two outputs) receives 2-wire resistance signal from the industrial field, and converts into a standard process signal that has a linear relationship with the resistance value. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.
Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

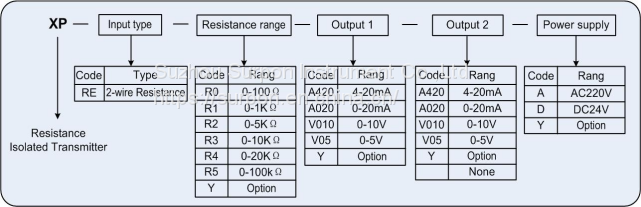

XP Series Resistance Isolated Transmitter code table：
Examples of ordering
Refer to the code table above and provide the model number correctly.
Example 1 input: one channel 0-1KΩ resistance, output: one channel 4-20mA, power supply: 24VDC
order model: XP-RE-R1-A420-D
Example 2 input: one channel 0-10KΩ resistance, output: two channels 4-20mA, power supply: 24VDC
order model: XP-RE-R3-A420-A420-D（abbreviated as: XP-RE-R3-2A420-D）
Example 3 input: one channel 0-560Ω resistance, output: one channel 4-20mA, power supply: 24VDC
order model: XP-RE-Y-A420 -D（Y=0-560Ω）
