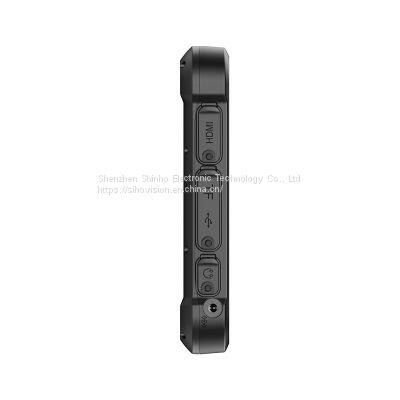

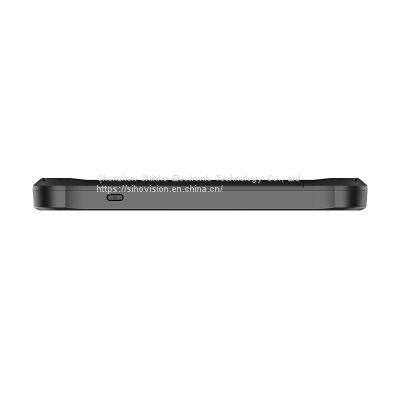

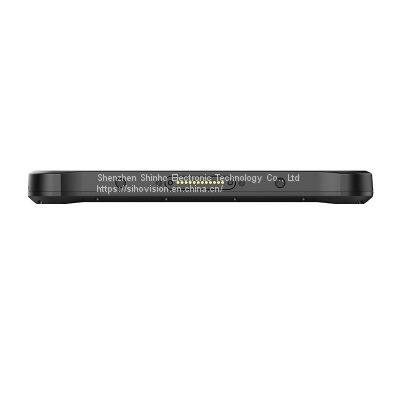

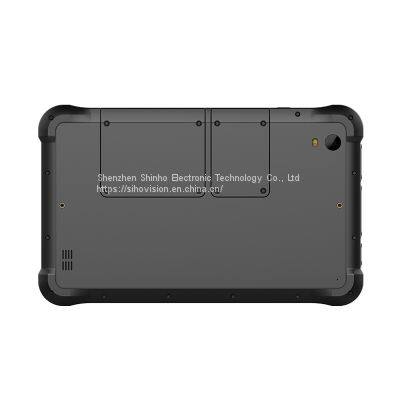

Rugged Tablet Computer 7 Inch Windows Rugged With Nfc Scanner Barcode Fingerprint

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sihovision	Place of Origin	China
Model Number	R-I75BP	Weight	707g
Color	Black	Screen Size	7"
Products Status	Stock	Processor Type	Other, Intel Cherrytrail Z8350
Processor Main Frequency	1.44Ghz-1.92GHz	Hard Drive Capacity	64GB
Memory Capacity	≥ 4GB	Processor Manufacture	Intel
Operating System	Other, Windows 10	Battery Life	7500mAh
Display resolution	1280x800	Touch Screen Type	Capacitive Screen

Product Description

Specification

Model:R-I75BPH
PC
CPU	Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz
GPU	Intel® HD Graphics
RAM	4GB
SSD	64GB EMMC
Indicator light	Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor	Light/Proximity sensors
G_sensor	Gravity acceleration sensor
WIFI	WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth	BT4.2 (BLE) class 1, Transmission distance: 10m
3G	Optional: H350 GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
4G	EC25-E : LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPS	U-BLOX M8Q GNSS.Support GPS/Beidou/glonass
NFC	Optional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
Camera	front 2.0MP, rear 5.0MP Auto focus with flash
Speaker	8Ω/0.8W waterproof BOX speaker*1
Mic	Sensitivity:-42db, output impedance 2.2kΩ
Operation System	windows 10 Home/ Pro/ IOT 64bit
LCD panel
Panel size	7"
Resolution	800*1280 IPS
Aspect ratio	16:10
Brightness (cd/m²)	1000 cd/m2
Touch panel
Touchscreen Type	5 points capacity TP,G+G, support touch with wearing gloves and wet finger
Surface Hardness	7H
Interface
USB	1MicroUSB, 1Android OTG
Pogo Pin	1*12pin Pogo Pin
Audio Output	1*3.5mm
HDMI	HDMI 1.4a Type C*1
TF Slot	1*TF Slot, max: 128G
SIM	1*SIM
Power	1*DC 5V 3A, Optional: Overvoltage protection of circuit,Max DC24V
OTG Cable	USB OTG to MICRO USB cable length: 45mm
USB Cable	USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Supply
Power Adaptor	AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
Battery	Removable Li-polymer battery
	Capacity: 3.7V/7500mAh
	nearly 6hours(50% volume sounds, 50% brightness, 1080P HD video display by default)
Operating Environment
IP grade	IP65 waterproof
Drop Height	1.22cm composite wood floors, in operation status
Operate Temperature	-20 °C to 60 °C
Store Temperature	-30 °C to 70 °C
Humidity	Humidity: 95% Non-Condensing
Packing Details
Net weight	707g
Gross weight	1294g
Product Dimension	216.98133.9621.4mm
Packing size	32516261mm
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
Color	Black
Module extension (Optional)
One-dimension barcode	N 4313, Optical resolution: 5mil, Scan speed: 50 times/s, Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
Two-dimension barcode	Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint	The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF	M-550 UHF RFID slim all-in-one module.
ID Module	support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Optional Accessories
Accessories	Docking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge

Certifications

Company Introduction

FAQ

1. We offer a life-long maintenance that is free in the one year.

2. In the two year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.

3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.

4. Please note that man-made damage is out the scope of free warranty.

5. After the two year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.

6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the products.

7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
