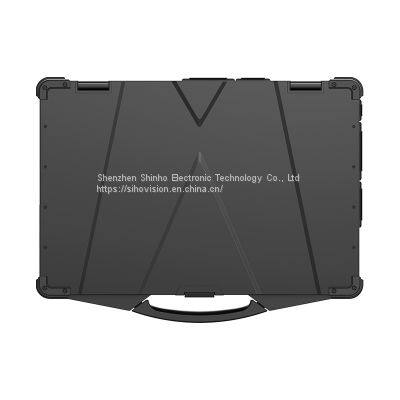

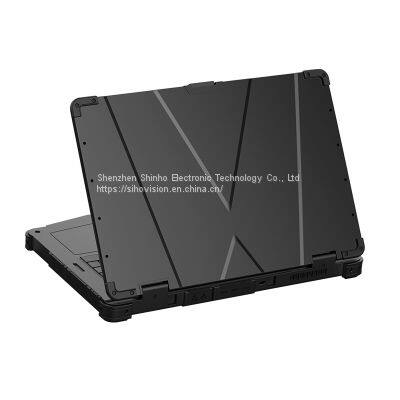

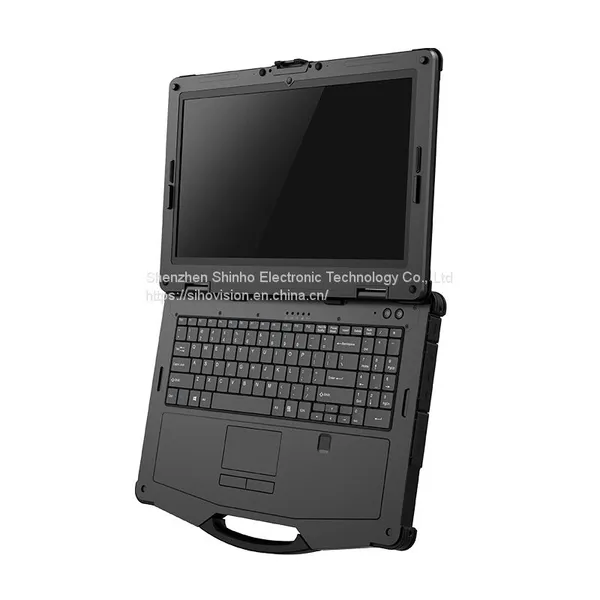

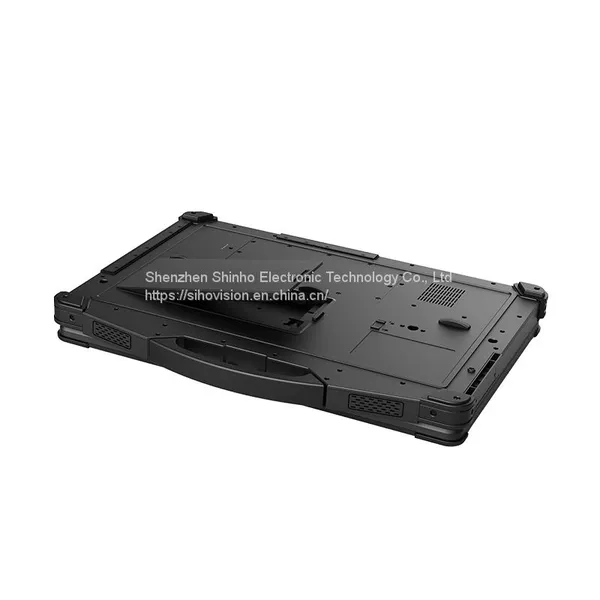

15.6" 700 NITS Rugged Laptops 16 GB RAM 512G SSD Waterproof Rugged Laptop

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Functions

• Support for Win 7, Win 10 system.

• Intel® Core™ i5-8250U/i7-8550U, greatly improved performance.

• The fuselage is equipped with dual battery design, and the endurance is increased to 6-8 hours.

• IP65 high protection level, in accordance with MIL-STD-810G.

• Support GPS, Optional Beidou, more accurate positioning.

• Support 1920x1080 FHD, optional with Corning gorilla screen and sunshine visual screen.

• Support rich expansion slot and ﬁngerprint design, can be applied to various complex industry needs and expand demand.

Model:R-X15NFU
PC
CPU	Intel® Core™ i5-8250U/i7-8550U
OS	Windows 7/Windows 10
RAM	8GB/16GB
ROM	256GB/512GB
Network connections
WIFI	2.4G+5.8G dual frequency, WIFI 802.11(a/b/g/n/ac)
Bluetooth	BT4.2 (BLE) class1 transmission distance：10m
3G/4G	LTE FDD: B1/B3/B5/B7/B8/B20/B28A
	LTE TDD: B38/B40/B41
	WCDMA: B1/B2/B5/B8
	GSM: 850/900/1800/1900MHz
Basic parameters
Dimension	39727137 mm
Weight	device unit 3300g
Device Color	black
LCD	15.6 inch IPS 16:9, 1920*1080
Touch Panel	10points Capacitive, G+G, Corning Gorilla Glass
Camera	Front 2.0MP
I/O	HDMI x 1, POGO 5pin x 1,
	USB 2.0 x 1, USB 3.0 x 3,
	SIM Card x 1, SD Card x 1,
	DB9 RS232 × 1, RJ45 × 2,
	Φ3.5mm standard earphone jack x 1,
	DC 19V 3.42A x 1
Power	AC100V ~ 240V, output DC 19V/3.42A/65W
GPS	Support GPS (Optional Beidou)
Battery (Built-in)
Capacity	7.4V/1750mAh
Type	Built in Li_polyment,battery loadable
Endurance	0.5hrs (Default 50% volume, default 200 nit, Play 720P HD video)
Battery (Pluggable)
Capacity	7.4V/6300mAh
Type	Li_polyment, removeable battery
Endurance	8 hrs (Default 50% volume, default 200 nit, Play 720P HD video)
Reliability
Operate Temperature	-20 °C ~ 60 °C
Store Temperature	-30 °C ~ 70 °C
Humidity	95% Non-Condensing
IP Grade	IP65
Optional modules
Fingerprint	SPI ﬁngerprint (power on login)
NFC	NXP NFC 13.56MHz, Support ISO/IEC, 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
