Home > Computer Products > Tablet PC > All-in-One Tablet PC > High Performance Rugged Tablet 2D Scanner RFID GPS IP65 Windows Rugged Tablet 10 Inch

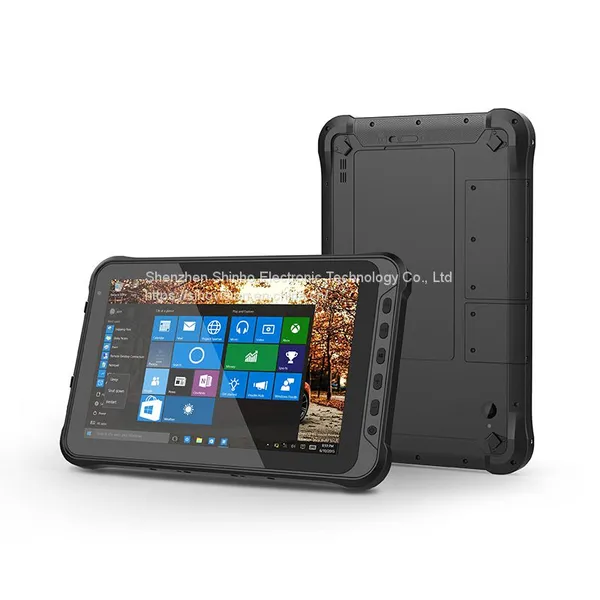

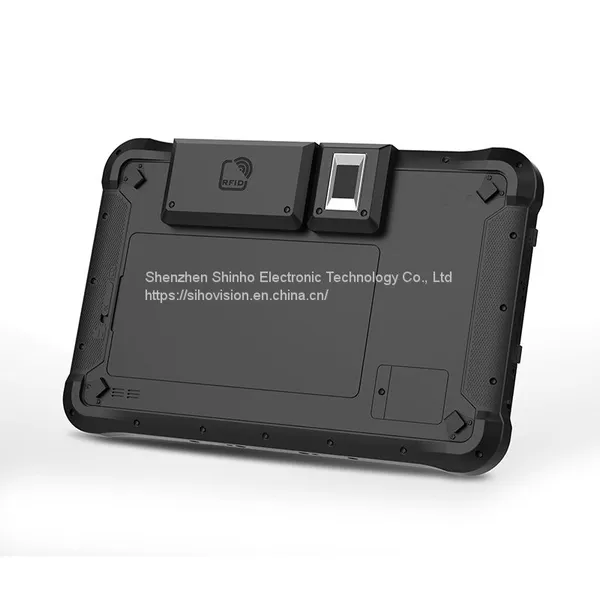

High Performance Rugged Tablet 2D Scanner RFID GPS IP65 Windows Rugged Tablet 10 Inch
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Sihovision
Place of Origin:
China
Model Number:
R-I15SVH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Good Price 7 Inch Rugged Tablet Computer With Barcode ScannerNegotiableMOQ: 1 Piece -
Rugged Tablet Computer 7 Inch Windows Rugged With Nfc Scanner Barcode FingerprintNegotiableMOQ: 1 Piece
-
2021 Touch Screen Rugged Outdoor Tablet PC Sunlight Readable Android TabletNegotiableMOQ: 1 Piece
-
Rugged Tablet for Windows With RJ45 Ethernet Port Industrial Tablet PC HDMI InterfaceNegotiableMOQ: 1 Piece
-
10 Inch Rugged Tablet IP65 I7-8550U 16GB 512GB Rugged Tablet PC Support One Dimensional QR Code ScannerNegotiableMOQ: 1 Piece
Brand Name
Sihovision
Place of Origin
China
Model Number
R-I15SVH
Weight
1088g
Color
Black
Screen Size
10"
Products Status
Stock
Processor Type
Other, Intel Cherrytrail Z8350
Processor Main Frequency
1.44Ghz-1.92GHz
Hard Drive Capacity
64GB
Memory Capacity
≥ 4GB
Processor Manufacture
Intel
Operating System
Other, Windows 10
Battery Life
5000mHA
Display resolution
Other, 800*1280
Touch Screen Type
Capacitive Screen
Specification
| Model:R-I15SVH | |
| PC | |
| CPU | Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
| GPU | Intel® HD Graphics |
| RAM | 4GB |
| SSD | 64GB EMMC, Optional 32G/128G |
| G_sensor | G_sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class 1, Transmission distance: 10m |
| 3G | Optional: FIBOCOM_H350 GSM/GPRS/EDGE Band(MHz):900/1800; WCDMA Band(MHz):900/2100, 1.Asia Pacific,Europe, 2.China Unicom 3G |
| 4G | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GPS | U-BLOX M8Q GNSS module. support GPS, beidou,glonass |
| Camera | front 2.0MP, rear 5.0MP |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | windows 10 HOME/ IOT/ Pro/ enterprise 64bit |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 800*1280 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 700 cd/m2 |
| Touch panel | |
| Touchscreen Type | 10 points capacity TP, G+G |
| Surface Hardness | 7H |
| Interface | |
| USB | 1*USB2.0 |
| Type C | 1*USB OTG/chargeing |
| Audio Output | 1*3.5mm |
| HDMI | 1*HDMI C |
| TF Slot | 1*TF Slot, support SDHC/SDXC*1 max: 64G |
| SIM | 1*SIM |
| Power | 1*DC 5.5V 4A |
| Keys | |
| power | *1 |
| volume | Volume adjustment key(+ -) *2 |
| Windows home | Windows home*1 |
| P1 | Barcode scanning*1 |
| P2 | wearing gloves/ wet finger mode switching*1 |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5.5V/4A |
| Battery | Removable Li-polyment battery |
| Capacity: 5000mHA/7.4V | |
| 7 hours ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) 5 hours ( 50% volume sounds, maximum brightness, 1080P HD video display by default ) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 1088g |
| Gross weight | 1933g |
| Product Dimension | 280*180*22 mm |
| Packing size | 384*208*64mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | black (rear housing and front housing) |
| Module extension (Optional) | |
| One-dimension barcode | Honeywell N4313/Optical resolution: 5mil/scan speed: times /s serial port |
| Two-dimension barcode | Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Fingerprint | 070-Hello fingerprint module, FPC1020(sensor，capacity press type) fingerprint effective area: 10mm x10mm more high resolution: 192x192pixel/508DPI |
| NFC | NXP NFC 13.56MHz, support ISO/IEC 14443A/14443B/15693/18092/mifare, 2~4cm |
| Serial | RS232 |
| Ethernet interface | *1(10/100M self-adaption) with indicator light |
| UHF-RFID | TTL Uart port，Recognition distance is 3m, Working voltage DC 3.5V-5 V, Standby current50 pcs /second |
| ID Module | support reading the fingerprint information in the 1st and 2nd ID card Port：USB or TTL serial port optional power 5v or 3.3v, size: 53mm*52mm*10mm |
| Optional Accessories | |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, Removable Battery. |
