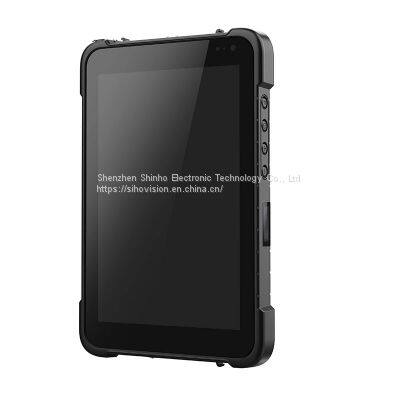

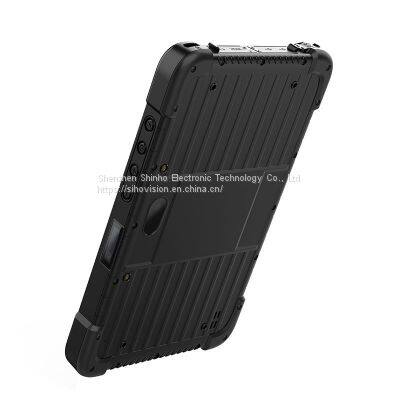

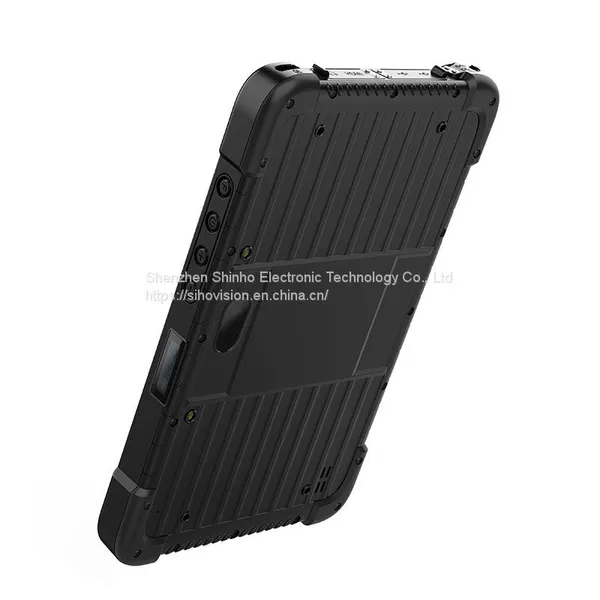

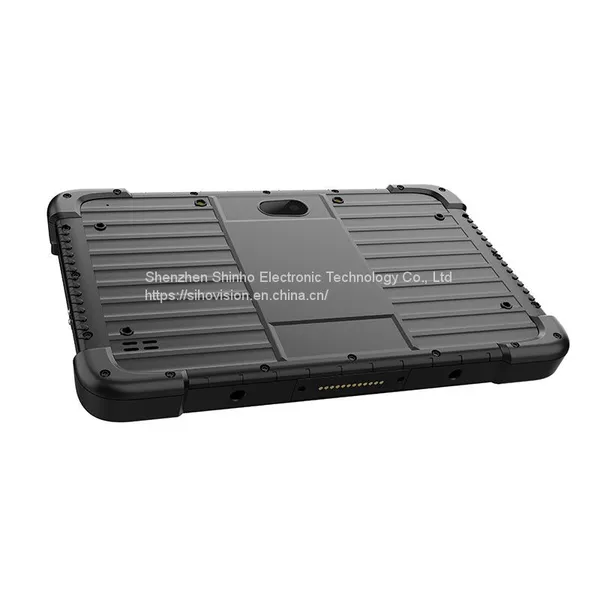

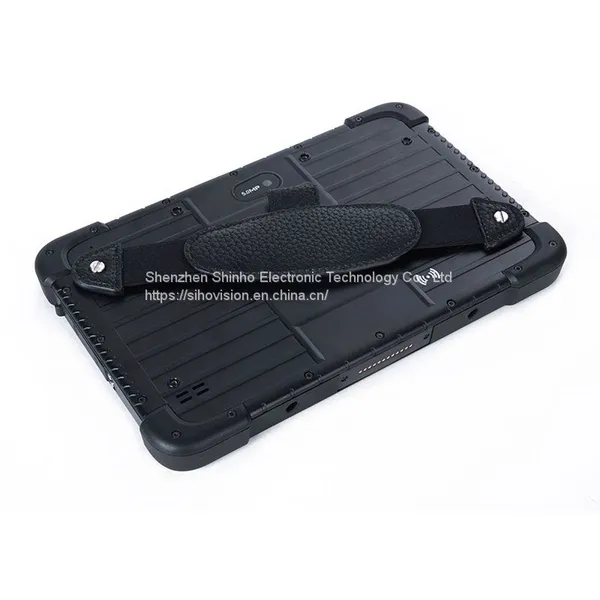

Rugged Tablet for Windows With RJ45 Ethernet Port Industrial Tablet PC HDMI Interface
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Sihovision
Place of Origin:
China
Model Number:
R-I86NLH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
10 Inch Rugged Tablet IP65 I7-8550U 16GB 512GB Rugged Tablet PC Support One Dimensional QR Code ScannerNegotiableMOQ: 1 Piece -
Android 10 Inch Shockproof Tablet pc Wifi Removable Battery Touch Rugged TabletNegotiableMOQ: 1 Piece
-
High Performance Rugged Tablet 2D Scanner RFID GPS IP65 Windows Rugged Tablet 10 InchNegotiableMOQ: 1 Piece
-
Good Price 7 Inch Rugged Tablet Computer With Barcode ScannerNegotiableMOQ: 1 Piece
-
Rugged Tablet Computer 7 Inch Windows Rugged With Nfc Scanner Barcode FingerprintNegotiableMOQ: 1 Piece
Brand Name
Sihovision
Place of Origin
China
Model Number
R-I86NLH
Weight
737g
Color
Black
Screen Size
8"
Products Status
Stock
Processor Type
Other, Intel Cherrytrail Z8350
Processor Main Frequency
1.44Ghz-1.92GHz
Hard Drive Capacity
64GB
Memory Capacity
≥ 4GB
Processor Manufacture
Intel
Operating System
Other, Windows 10
Battery Life
8500mAh
Display resolution
1280x800
Touch Screen Type
Capacitive Screen
Specification
| Model:R-I86NLH | |
| PC | |
| CPU | Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
| GPU | Intel® HD Graphics |
| RAM | 4GB |
| SSD | 64GB, Optional 128G |
| G_sensor | Gravity acceleration sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 3G | Optional: IC: H350-A30: WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface. |
| 4G | EC25-EC (Europe) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 Optional: EC25-AU LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| GPS | U-blox NEO-7; Capture sensitivity: -160 dBm; Cool Start Time:<50 seconds, Hot start time:<28 seconds, frequency: 0.25 Hz~10 MHz (configurable) |
| Camera | Front:2.0MP with indicator light, Rear: 5.0MP |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | windows 10 Smode /Pro |
| LCD panel | |
| Panel size | 8" |
| Resolution | 800*1280 IPS LCD |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 450 cd/m2 |
| Touch panel | |
| Touchscreen Type | Multipoints Capacitive, G+G |
| Surface Hardness | 7H |
| Interface | |
| USB | 1*USB2.0(Host), 1*micr usb |
| Audio Output | 1*3.5mm |
| HDMI | 1*HDMI 1.4a Type C |
| TF Slot | 1*TF Slot, max 128G |
| SIM | 1*SIM |
| Power | 1*DC 5V 3A, Optional: Overvoltage protection of circuit, Max DC24V. |
| Pogo Pin | 1*12pin Pogo Pin |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
| Battery | build in polymer li-ion battery |
| Capacity: 3.7V/8500mAh, 4G: 3.7V/7800MAH | |
| 8Hrs(default 50% volumn, default200 lumens brightness, play 1080P HD video) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 737g |
| Gross weight | 1382g |
| Product Dimension | 228*145*16.5mm |
| Packing size | 357*186*60mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | black, silver |
| Accessories | Power Adaptor, OTG cable, USB cable |
| Module extension (Optional) | |
| One-dimension barcode | MOTO SE655E100R, optical resolution: 5mil, SCAN Speed: 50 times/s, support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | MOTO SE4710 Hardware decoder, optical resolution:5mil, scan speed:50times/s, support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| NFC | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
| Optional Accessories | |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, Leather Cover, Back-strap, Shoulder-strap, TP Resist film, 5V3A Car Charge |
Certifications
Company Introduction
FAQ
1. We offer a life-long maintenance that is free in the one year.
2. In the two year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
