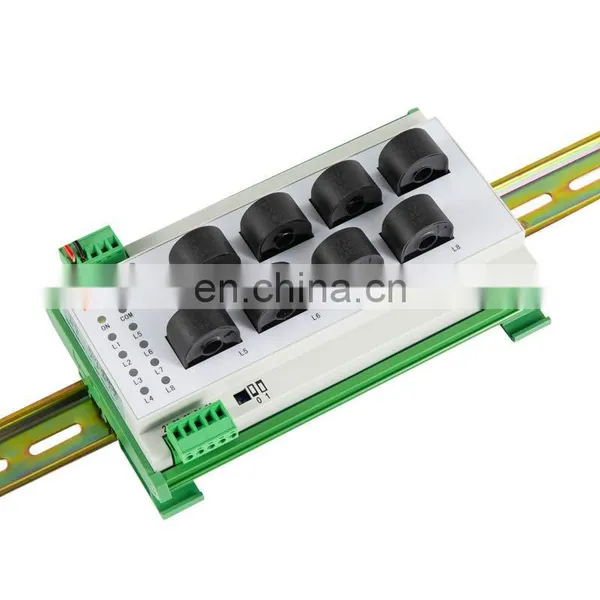

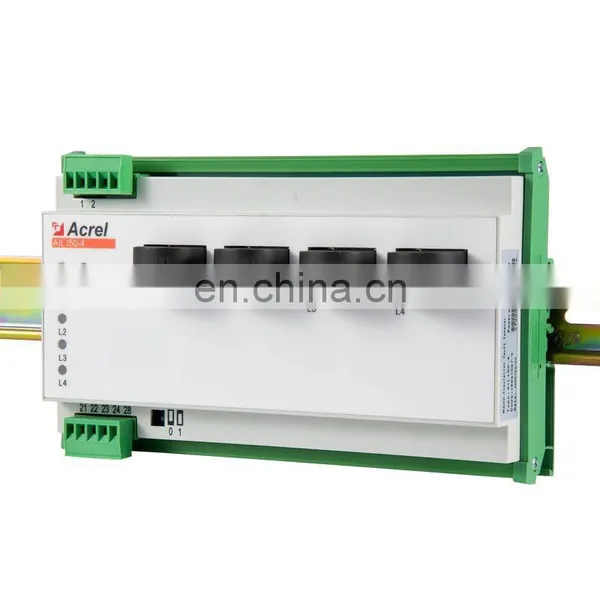

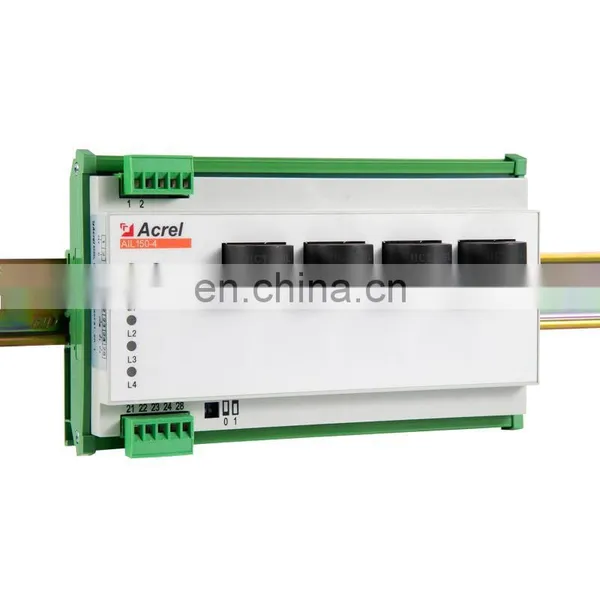

Hospital Ground Fault Locator AIL150-4 for Surgical Rooms
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Hospital Ground Insulation Fault Detection Device AIL150-4 for Surgical RoomsNegotiableMOQ: 1 -
Hospital Ground Insulation Fault Detection Device for ICUs, Cardio Cath Labs, LDRs CE ApprovedNegotiableMOQ: 1
-
Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC CertificatesNegotiableMOQ: 1
-
Acrel Isolated Power Panels for Hospital IPS Monitoring System CE and IEC60364 ApprovedNegotiableMOQ: 1
-
Acrel Ground-fault Relays AIL150-8 Insulation Fault Location Device for Operating Rooms IEC ApprovedNegotiableMOQ: 1

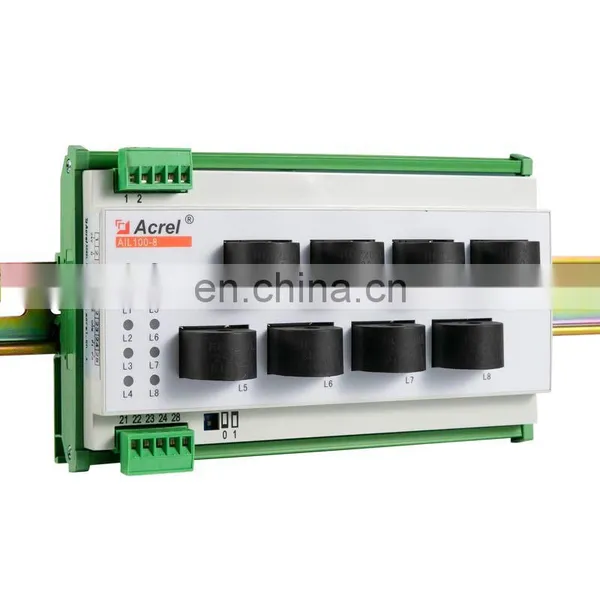

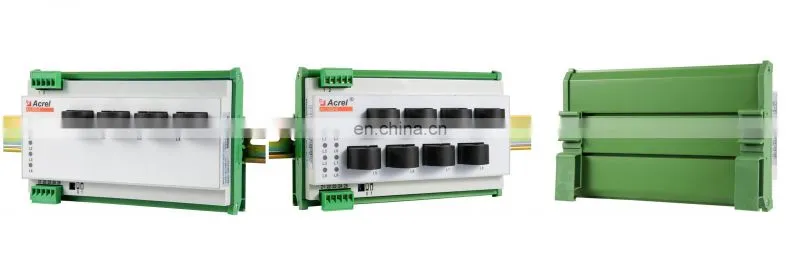

AIL150 series insulation fault locator
Product Description
Characteristic
AIL150-4/AIL150-8 insulation fault locator uses high-precision signal detection circuit with high sensitivity transformer,It detects ASG150 test signal generator' s signal which is injected into the system,It can accurately locate the insulation fault circuit. Among them,AIL 150-4 insulation fault locator can locate insulation faults of four loops,AIL150-8 insulation fault locator can locate insulation faults of eight loops.
Function
* Insulation fault location in medical IT systems.
* 4 or 8 channels with measuring current transformer per AIL150.
* Up to 16 measuring channels can be combined by can bus in one medical IT system.
* Aresponse time of up to 2 s in medical IT system acc. to IEC61557-9.
Specification
Parameter |
Values |
||||
AIL150-4 |
AIL150-8 |
||||
Auxiliary power |
Voltage |
DC24V(±25%) |
|||
The maximum power consumption |
≤2VA |
||||
Monitored system |
Rated voltage |
0-242VDC |
|||
Frequency |
45-60HZ |
||||
Location signals |
Location voltage |
＜25V |
|||
Location current |
＜1mA |
||||
Fault location |
the maximum number of loops |
4 |
8 |
||
Response time |
＜2S |
||||
Communication |
Bus |
CAN |
|||
Protocol |
Custom protocol |
||||

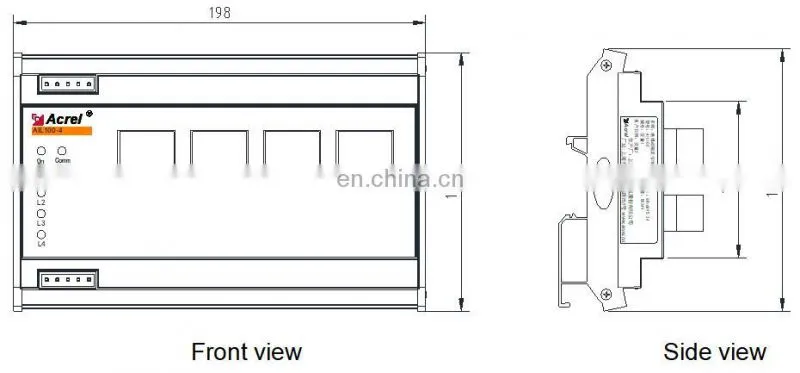

Dimension（Unit: mm）
Quotation
Model |
Function |
FOB Shanghai(USD) |
Wholesale price |
||
AIL150-4 |
Locate insulation faults of 4 loops |
466 |
Please contact us in detail. We can offer you the best price. |
||
AIL150-8 |
Locate insulation faults of 4 loops |
673 |
|||
Application programme－ICU/CCU
