Home > Electrical & Electronics > Power Supply & Distribution > Electric Power Fitting > Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems

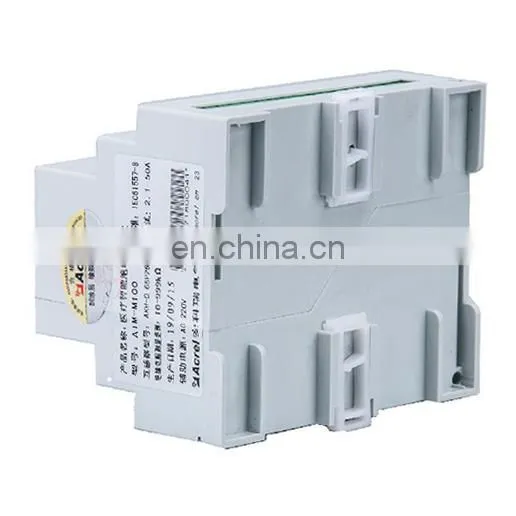

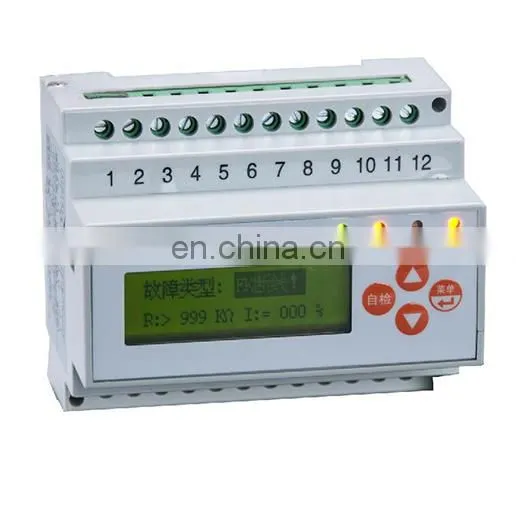

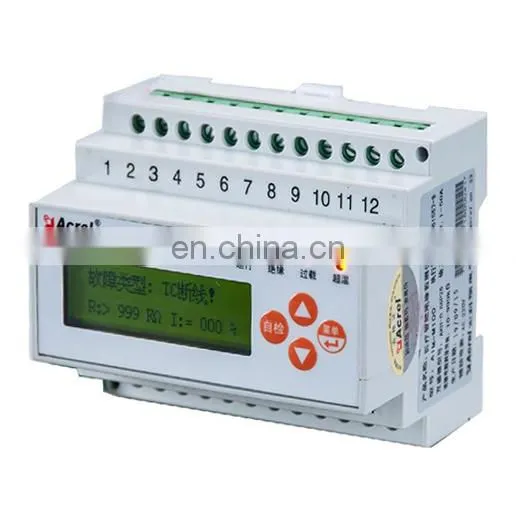

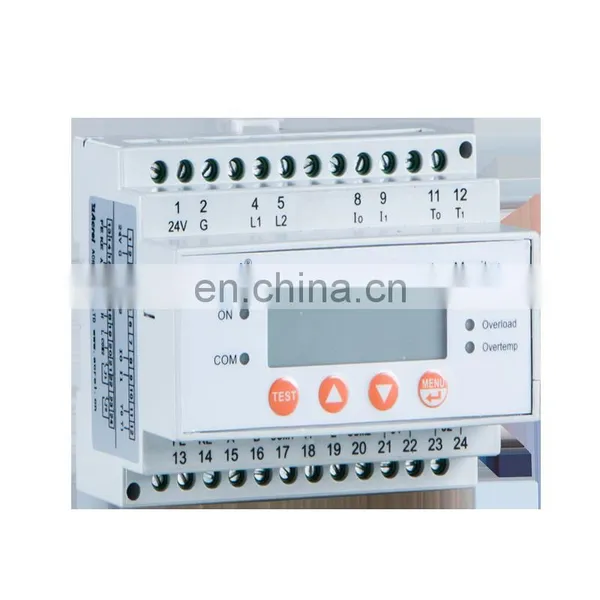

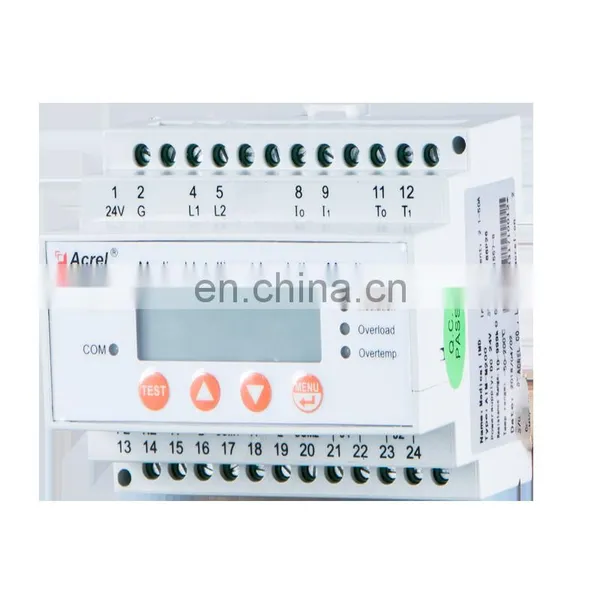

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems thumbnail-3

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems thumbnail-4

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems thumbnail-5

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems photo-1

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems photo-2

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems photo-3

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems photo-4

Medical Insulation Monitoring Devices AIM-M100 Monitor the Insulation Resistance of IT Systems photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2003

Factory Size:

3,000-5,000 square meters

Contact Supplier Request Quote Chat Now

Acrel Electric Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

AIM-M Series insulation monitor

FEATURES

Products can monitor the insulation resistance, load current transformer, the transformer winding temperature of IT systems in real time and have fault alarm function;

- Products can monitor the test system wiring disconnection fault, the temperature sensor break fault and functional ground wire disconnection fault and alarm indication is given when a fault occurs;

- Products can output relay alarm, LED alarm indication and other fault indication ;

-Products communicate with external alarm ,display device, PC management software by using advanced fieldbus technology,can monitor status of IT systems in real-time ;

- Products have event logging function which can record the time and type of fault alarm , it is convenient for the operator to analyze system health and timely manner to eliminate fault;

- Products have insulation fault location function (AIM-M200 has this feature), and can achieve fault location and display positioning result with the insulation fault location device.

AIM-M100 Appliction

AIM-M Series insulation monitor is a high-performance insulation monitoring device, and is dedicated to medical IT systems.It is used to monitor the state of the ground insulation.When the system has an insulation fault,it can send alarm signals in a timely manner.It helps staff to deal with the actual situation.Product has extensive display and alarm indication function, user-friendly, easy to operate.

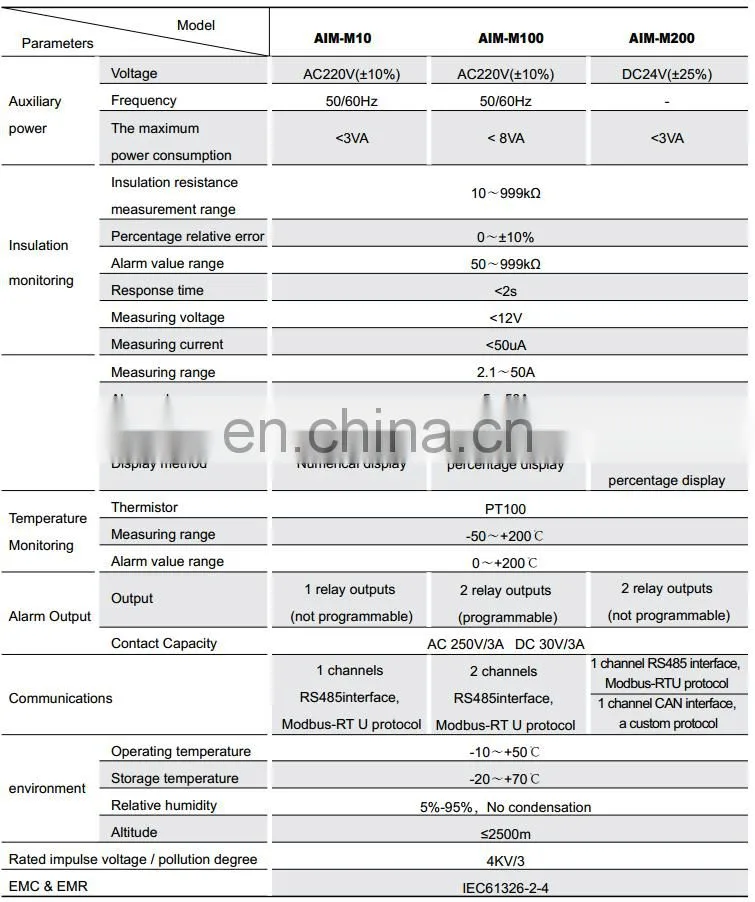

SPECIFICATIONS

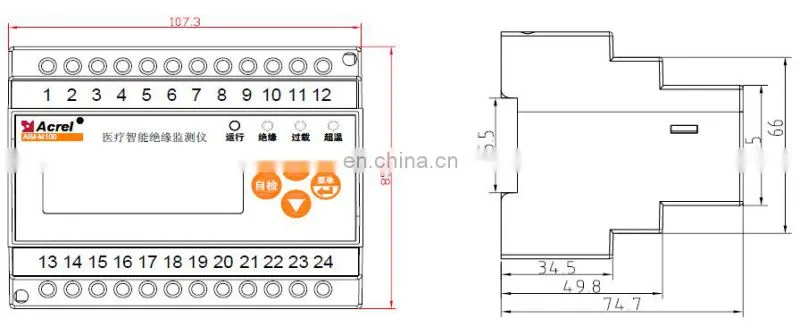

Dimension

Functions

Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.

Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.

Certificate

Packing

Shipping
