Hospital Isolated Power Distribution System for Medical Group II Location Protecting Personnel and Equipment

Medical isolation power supply and monitoring system

The medical IT system is mainly used in important Grade 2 medical locations such as operating room, ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these locations.The products can realize the real-time monitoring of insulation, load and temperature of isolation transformer in IT system, and have the functions of system insulation fault loop positioning and centralized monitoring by multiple pieces of systems. Products conform to the provisions of enterprise standard Q31/0114000129C013-2016 IT System Insulation Monitoring Instrument.

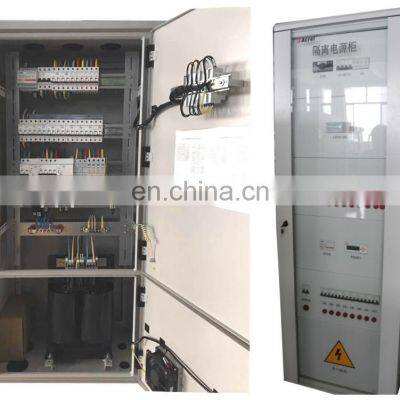

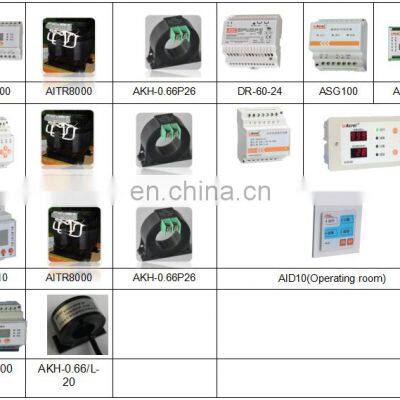

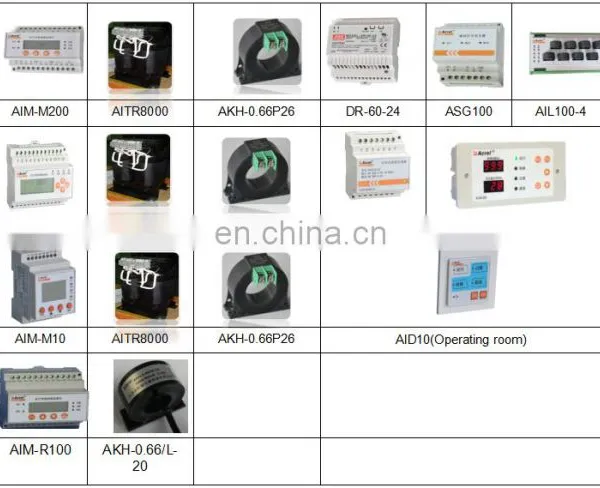

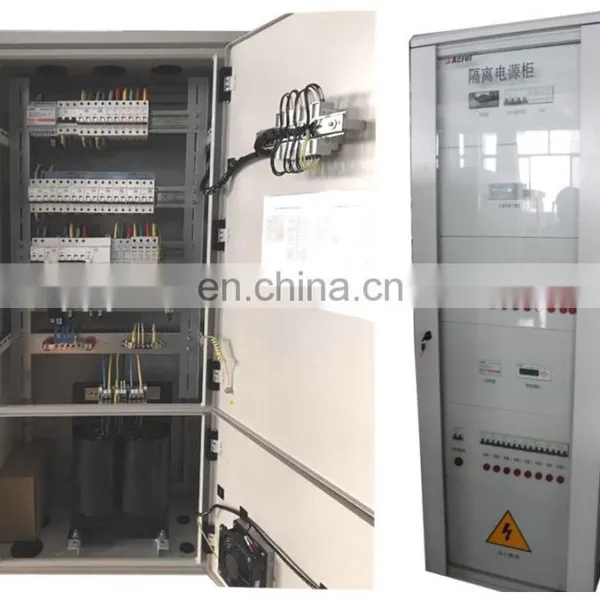

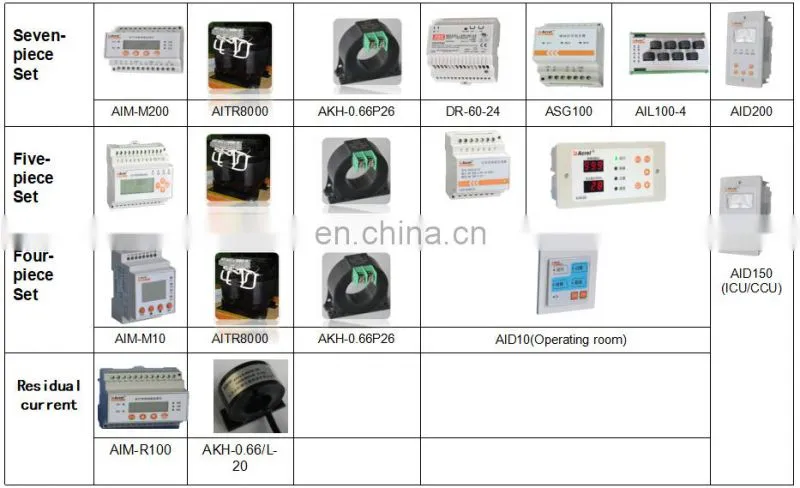

we supply full products of this cabinet from current transformers, meters to cabinets.

Dimension

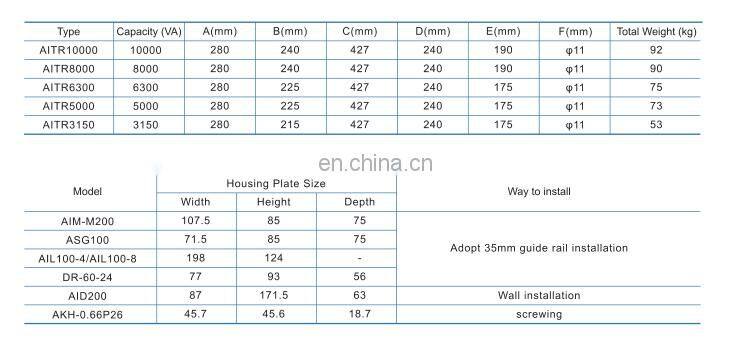

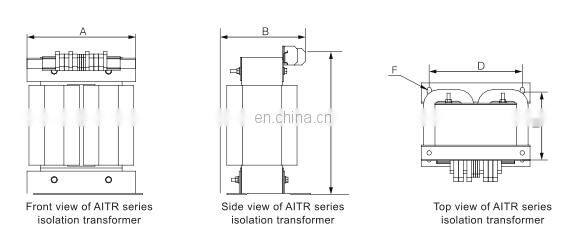

   External dimensions of AITR series medical isolation transformer (unit: mm)

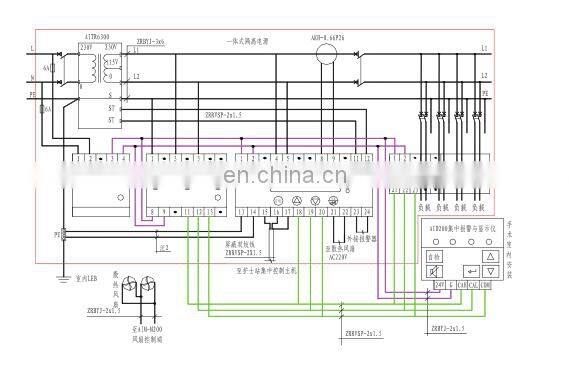

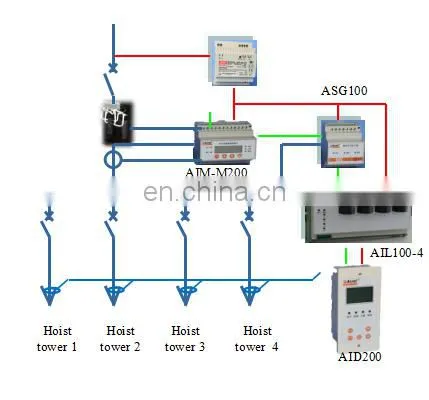

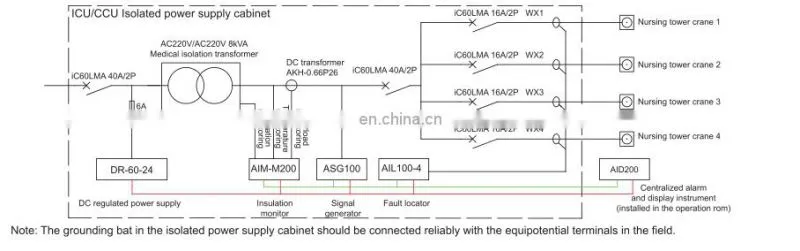

Wiring

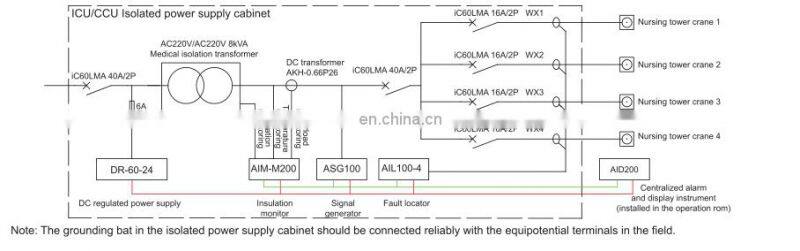

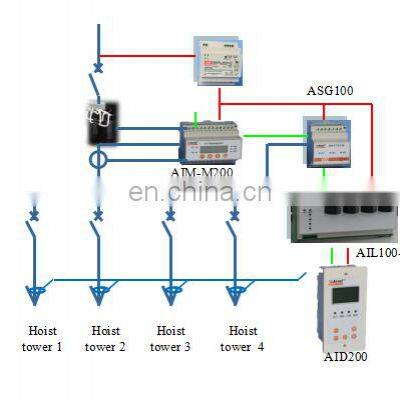

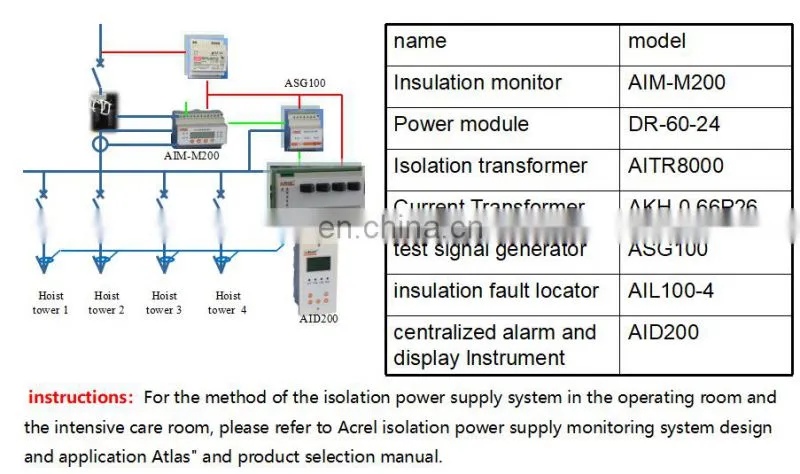

Typical Applications
