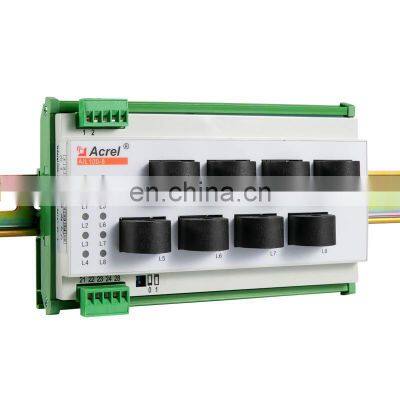

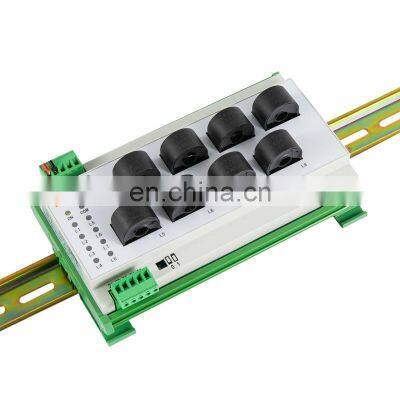

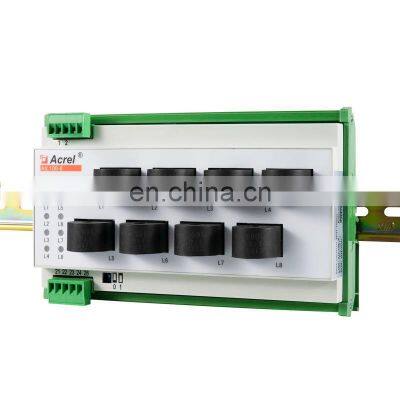

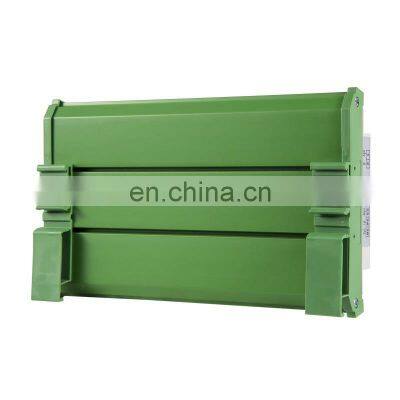

Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC Certificates photo-1
Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC Certificates photo-2
Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC Certificates photo-3
Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC Certificates photo-4
Isolated AC System Insulation Fault Locator for Intensive Care Unit (ICU) With CE and IEC Certificates photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

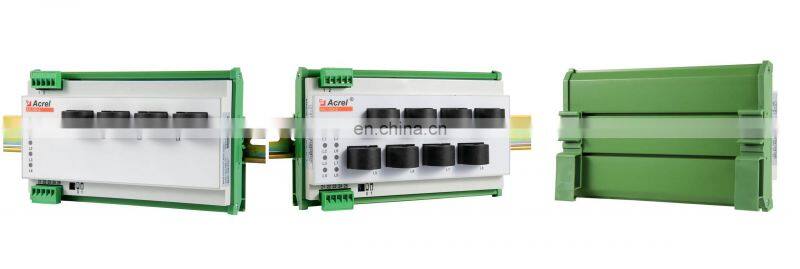

AIL150 series insulation fault locator

Product Description


Characteristic

AIL150-4/AIL150-8 insulation fault locator uses high-precision signal detection circuit with high sensitivity transformer,It detects ASG150 test signal generator' s signal which is injected into the system,It can accurately locate the insulation fault circuit. Among them,AIL 150-4 insulation fault locator can locate insulation faults of four loops,AIL150-8 insulation fault locator can locate insulation faults of eight loops.


Function

* Insulation fault location in medical IT systems. * 4 or 8 channels with measuring current transformer per AIL150. * Up to 16 measuring channels can be combined by can bus in one medical IT system. * Aresponse time of up to 2 s in medical IT system acc. to IEC61557-9.
Specification
Parameter
Values
AIL150-4
AIL150-8
Auxiliary power
Voltage
DC24V(±25%)
The maximum power consumption
≤2VA
Monitored system
Rated voltage
0-242VDC
Frequency
45-60HZ
Location signals
Location voltage
＜25V
Location current
＜1mA
Fault location
the maximum number of loops
4
8
Response time
＜2S
Communication
Bus
CAN
Protocol
Custom protocol

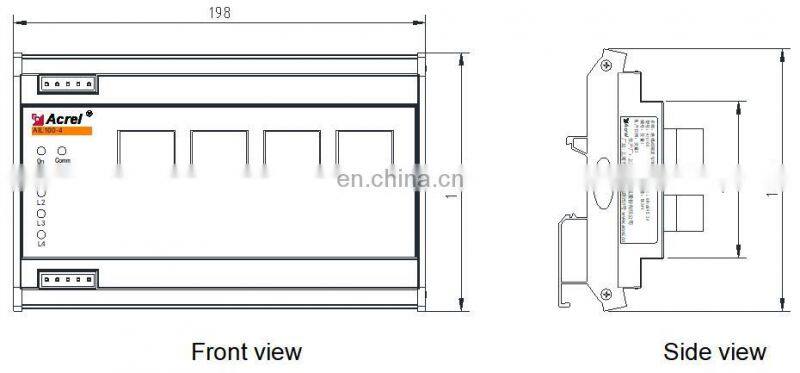

Dimension（Unit: mm）
Quotation
Model
Function
FOB Shanghai(USD)
Wholesale price

AIL150-4
Locate insulation faults of 4 loops
466
Please contact us in detail. We can offer you the best price.

AIL150-8
Locate insulation faults of 4 loops
673

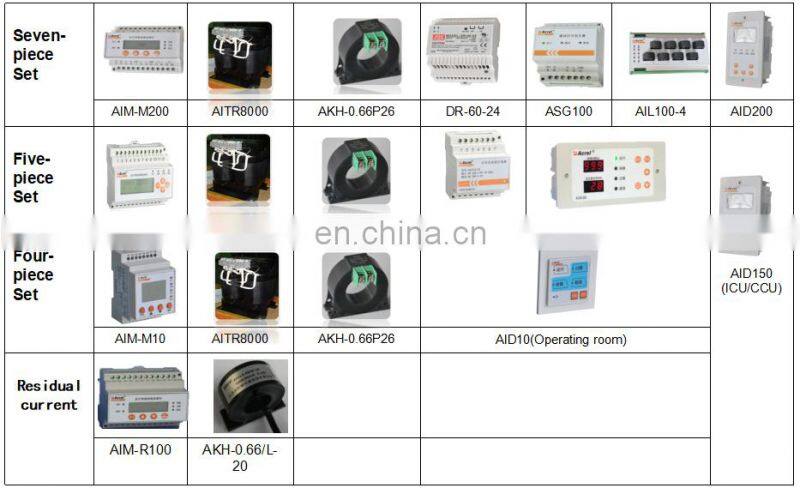

we supply full products of this cabinet from current transformers, meters to cabinets.

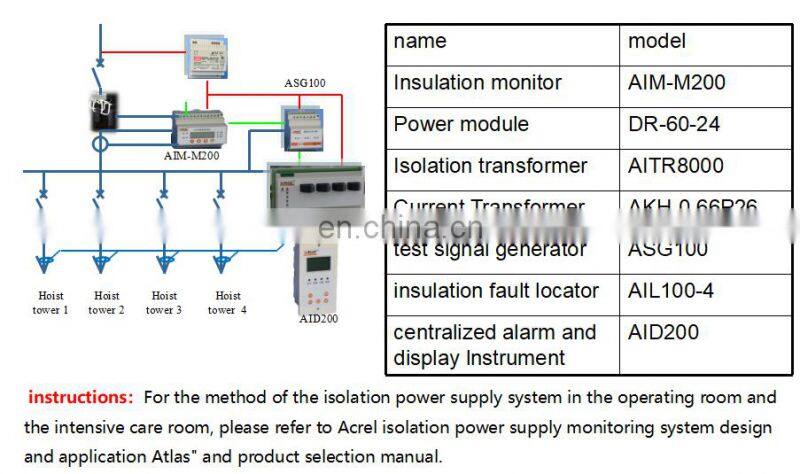

Application programme－ICU/CCU
