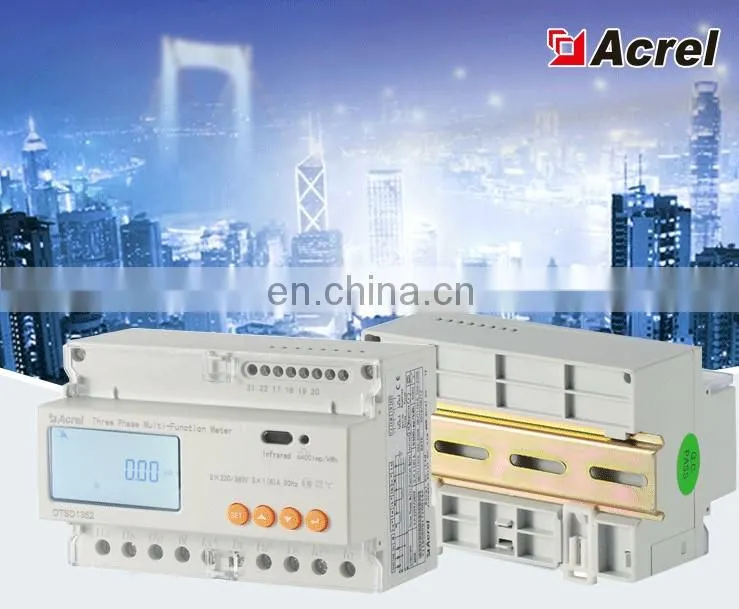

Multi Tariff Three Phase Electric Meter Din Rail Watt Kwh Power Meter ADL3000-E/F
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Phase Din Rail Kwh Power Meter ADL3000-E LCD DisplayNegotiableMOQ: 1 -
ADL3000-E/C Three Phase Multi-function Energy MeterNegotiableMOQ: 1 Piece
-
ADL100-EY Single Phase Prepaid Energy MeterNegotiableMOQ: 1
-
Acrel Multi-function Lcd Single Phase Din Energy Kwh Power Meter ADL100-ETNegotiableMOQ: 1
-
Acrel DIN Rail Single Phase Energy Meter ADL100-ET/C With RS485 CommunicationNegotiableMOQ: 1
ADL3000-E
| Three Phase Multi-Function Energy Meter | ||
| * AC 3×220/380V,3×380V,3×57.7/100V,3×100V * 3×1(6)A,3×10(80)A * U,I,P,Q,S,PF,kWh,kvarh * LCD display * kWh Class 0.5S,kVarh Class 2
| ||
INFORMATION
| Characteristic |
| Display : 8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption |
| Rated U and I : AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A |

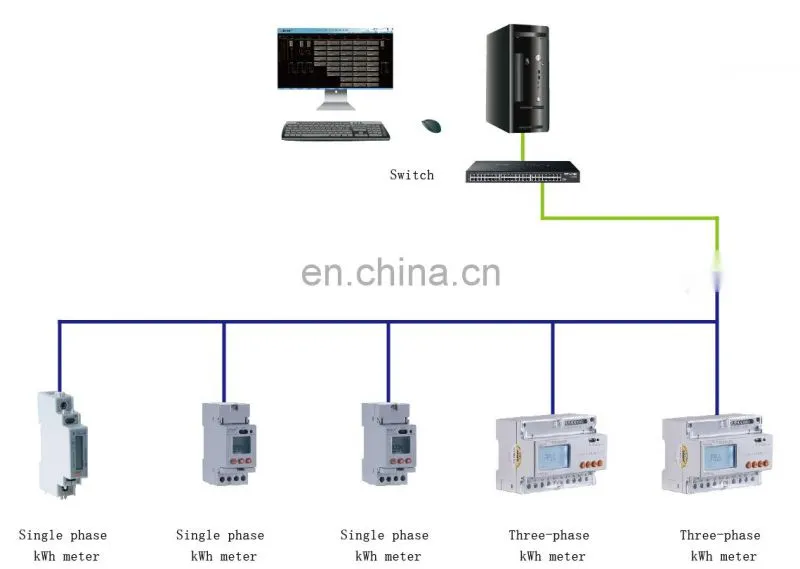

| Option function/C: RS485(Modbus-RTU) Communication |
| Option function/F: Multi tariff energies √ |
| Option function/K: 1DI/1DO |
| Option function/T: Three routes external NTC temperature measurement |
| Option function/H: 2-31st harmonic |

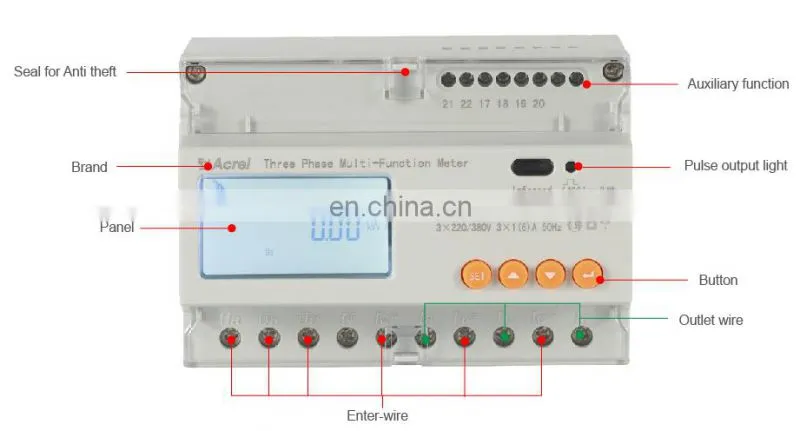

| LCD diaplay |
| Function |
|
Accuracy
|
|
|
|
Installation:
DIN 35mm Dimension(L*W*H): 127*88*70mm Switch relay: Magnetic latching relay(ADL3000-E build-in) Clock: ≤0.5s/d Starting current: Direct connect: 0.004Ib Connect via CT: 0.001ln |
| Wiring |
| Typical connection |

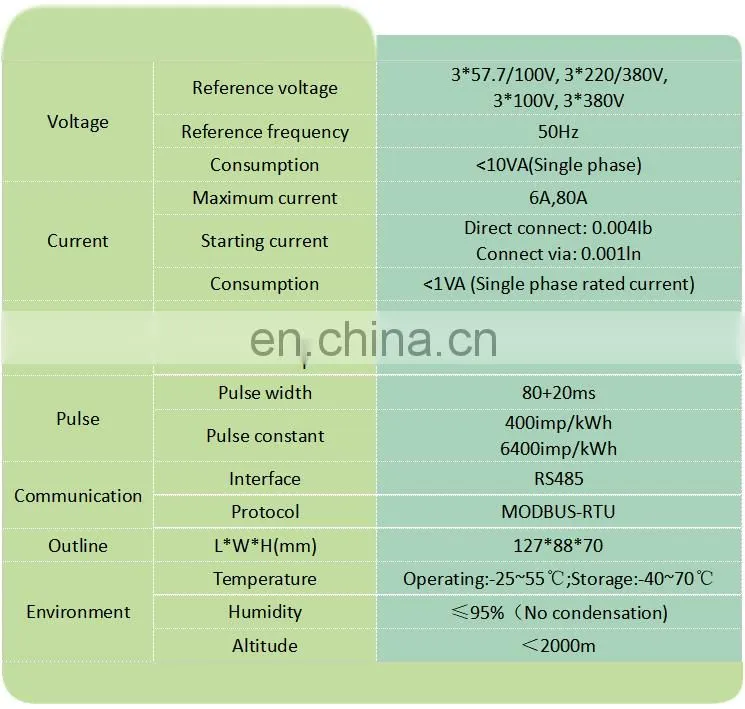

PARAMETER
