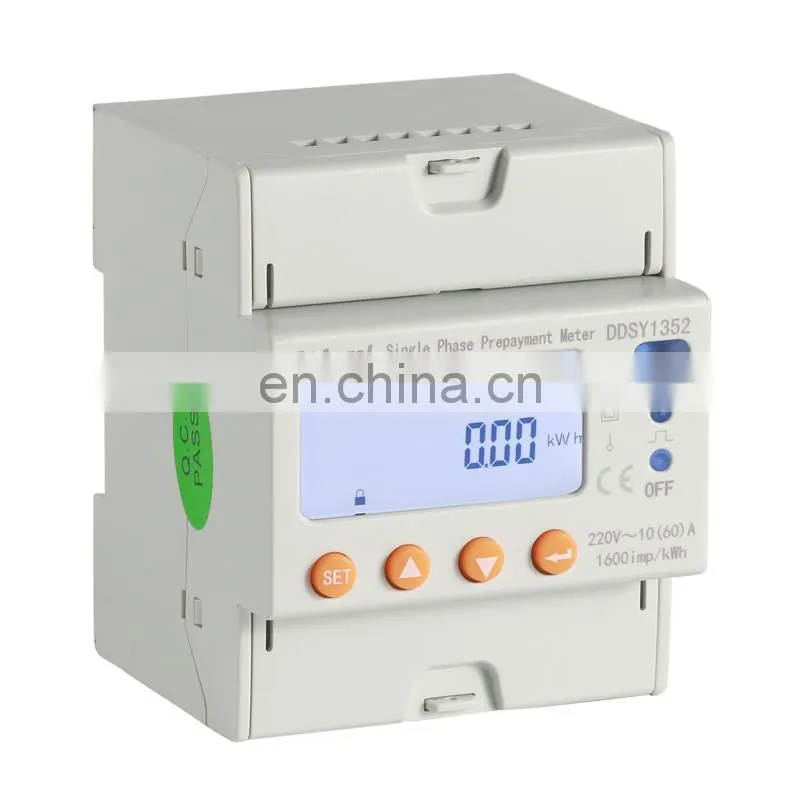

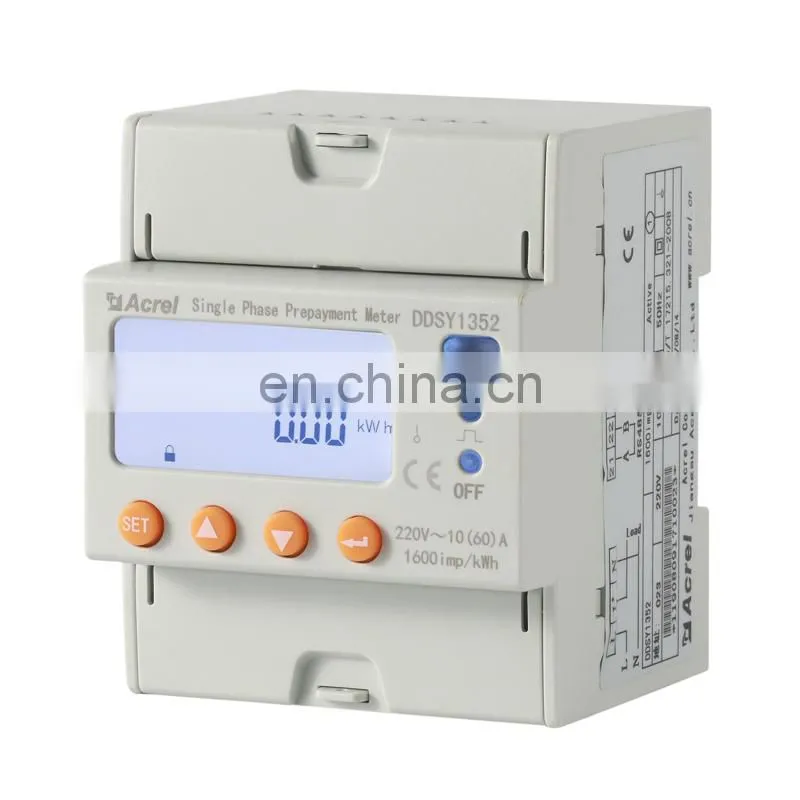

ADL100-ET Single Phase Multi-function Energy Meter
|
|
——AC 220V
—— 10(60)A
—— Prepaid mode
—— LCD display
—— Historical records
—— kWh Class 1
—— DIN 35 mm
|
| Information | parameter | Company profile | Certificate |
Characteristic
* Communication: RS485 Modbus-RTU
* Display: 8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
* Rated U and I: AC220V 10(60)A

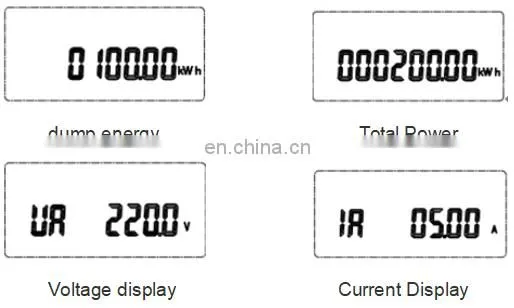

LCD Display
Function
|
Accuracy kWh Class 1 Frequency 50/60HZ(Optional), Range:45~65HZ Auxiliary power supply(self supply): 220Vac(L-N),range:154~264Vac Pulse output: Pulse output kWh Consumption <10VA |
|
|
Installation:
DIN 35mm
Dimension(L*W*H):
72*88*70mm
Switch relay:
Magnetic latching relay
Clock:
≤0.5S / per day
Starting current:
0.4%Ib
|
Wiring
Typical connection
| Information | parameter | Company profile | Certificate |

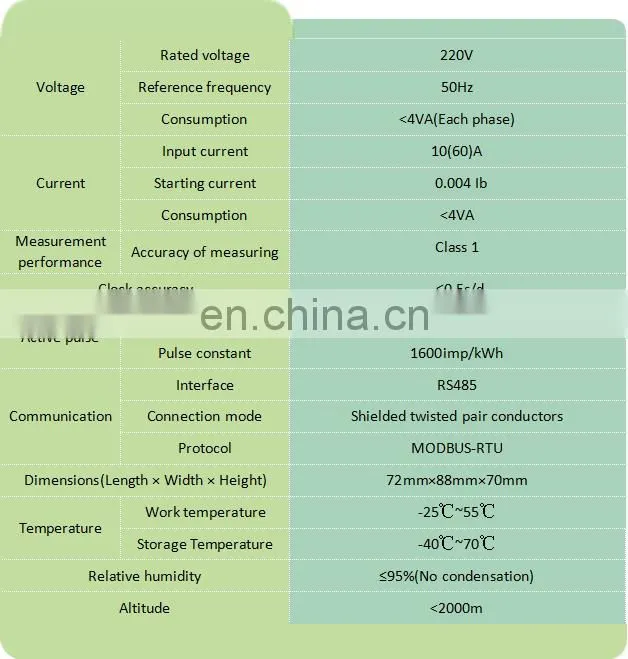

Parameter
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
| Information | parameter | Company profile | Certificate |
Certificate
Packing
Shipping
