ChinaHome > Products > ADL Series Din Rail Energy Meter > ADL3000-E/C Three Phase Multi-function Energy Meter
ADL3000-E/C Three Phase Multi-function Energy Meter
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
ADL100-EY Single Phase Prepaid Energy Meter
-
Acrel Multi-function lcd single phase din energy kwh power meter ADL100-ET
-
Acrel DIN rail single phase energy meter ADL100-ET/C with RS485 communication
-
20(100)A Din Rail single phase modbus AC Kwh Energy Meter ADL100-ET with split CT
-
Acrel ADL100-ET/F single phase lcd display Din rail mounted multi tariff energy counting digital power meter with CE
-
DIN rail energy meter Digital Only Display Type two module RS485 electricity kwh meter ADL100-ET with CE certificate
Product Description

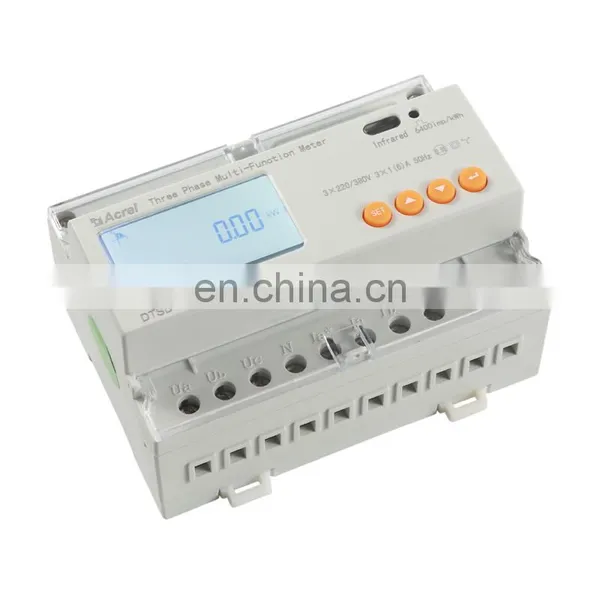

ADL3000-E/C Three Phase Multi-function Energy Meter
|
* AC3×220V/380V,3×380V,3×57.7V/100V,3×100V * 3×1(6)A,3×10(80)A * U,I,P,Q,S,PF,kWh,kvarh * RS485,MODBUS-RTU * LCD display * Frozen data * 2-31st Harmonics * Alarm * kWh Class 0.5S,kVarh Class 2
|
| Information | parameter | Company profile | Certificate |
* Communication: RS485 Modbus-RTU
* Display: 8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)
* Rated U and I: AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A
LCD Display
Function
Accuracy kWh: Class 0.5S,kVarh:Class 2 Frequency 50/60HZ(Optional),range: 45~65HZ Pulse output Pulse output kWh/kvarh Consumption <10VA(Single phase) | |
| Installation: DIN 35mm Dimension(L*W*H): 126.5*88*69.5mm Switch relay: Magnetic latching relay(ADL3000-E build-in) Clock: ≤0.5S / per day Starting current: 0.1%Ib |
| Information | parameter | Company profile | Certificate |
| Information | parameter | Company profile | Certificate |
| Information | parameter | Company profile | Certificate |
Certificate
