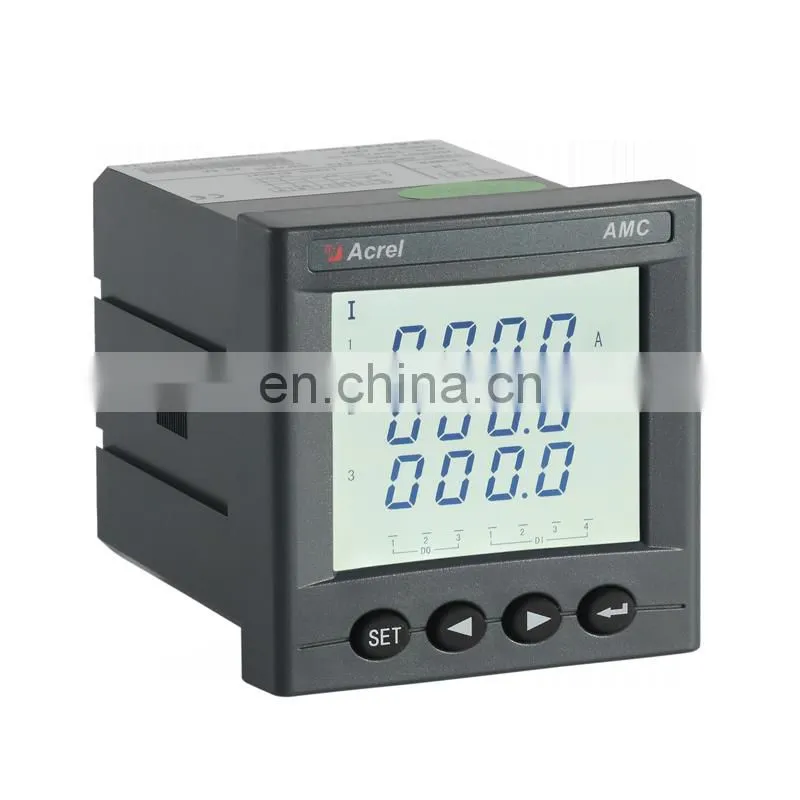

ACREL AMC96L-E4/KC Factory Lcd Display 3 Phase Energy Meter With Switch 4DI/2DO
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
96*96 Digital LCD Electric Modbus Power Analyzer AMC96L-E4/KCNegotiableMOQ: 1 -
Digital LCD Electric Power Meter AMC72L-E4/KC With RS485 CommunicationNegotiableMOQ: 1
-
Acrel 3P3W 3P4W Digital LCD Power Electric Analyzer AMC72L-E4/KCNegotiableMOQ: 1
-
Acrel Brand 3 Phase Multifunction Energy Meter AMC72L-E4/KCNegotiableMOQ: 1
-
3 Phase Power Analyzer AMC72L-E4/KC LED Display Kwh Panel Meter Electric Energy MeterNegotiableMOQ: 1
AMC96L-E4/KC AC Power Meter
Product Description
AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.It integrates measurement of power parameters (such as single-phase or three-phase current, voltage,and active power). Power, reactive power, apparent power, frequency, power factor) and power monitoring and assessment management.
Characteristic
Rated U : Voltage:AC 3×100,3×380,3×57.7/100V,3×220/380V
Rated I :Current:AC 1A,5A
Display: 8 digits LCD display U,I,P,Q,PF,kWh and other energy consumption,power measure
Communication: RS485, Modbus-RTU DL/T645-07/97
Display: LCD display
Option function/H: THDi，THDu
Option function/SOE: Event record
Accuracy
active energy:Class 0.5S
Frequency
Range: 45-65Hz
Power Supply
AC/DC 85-265V
Pulse output
1600-160000imp/kWh
Input consumption
Voltage:Power consumption: <0.5VA;
Current:Power consumption:< 0.5VA;
Power supply:power consumption≤10VA
Embedded installing
Dimension(L*W*H)
Faceplate(L×W):96*96mm
Cutout(L×W):92*92mm
Housing(L×W×H):90*90*77.8mm
Switch relay
DC 30V/3A AC 220V/3A
Starting current
0.1%

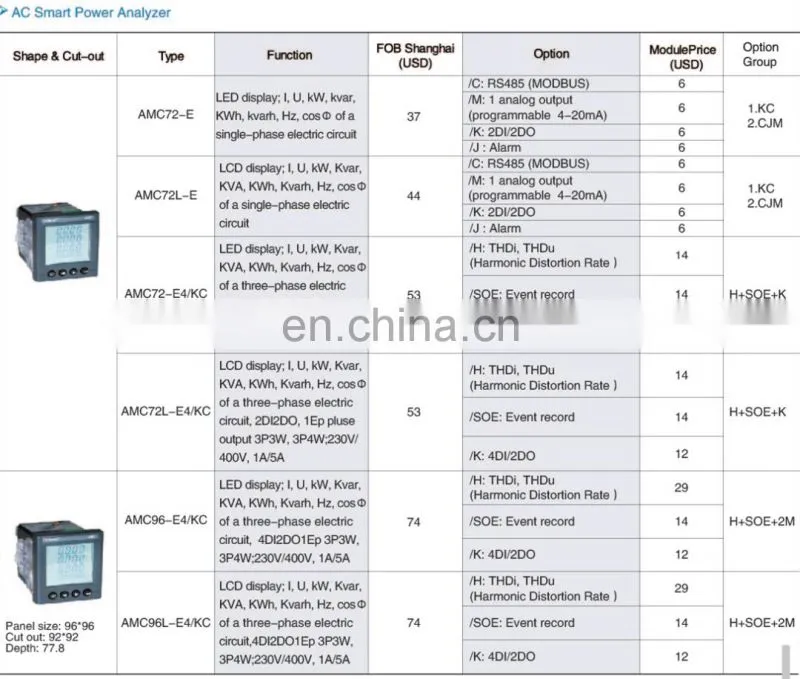

Quotation
Specification
Specification |
|||||||
Reference voltage |
AC 3×100,3×380,3×57.7/100V,3×220/380V; |
||||||
Consumption
|
＜0.5VA |
||||||
Frequency |
45-60Hz |
||||||
Overload |
1.2 times rated value(continuous); 2 times rated value(1 second) |
||||||
Current |
Reference current |
AC 1A,5A |
|||||
Overload |
1.2 times rated value(continuous); 10 times rated value (1 second) |
||||||
Consumption |
< 0.5VA |
||||||
Display |
LCD |
||||||
Function |
Communication |
RS485, Modbus-RTU compatible protocol |
|||||
Analog output |
Contact capacity: 3A/30V DC, 3A/250V AC 0~5V,0~20mA,4~20mA programmable |
||||||
Harmonic |
THDi,THDu, 2-31st harmonic. |
||||||
Switching |
2 channels or 4 channels passive contact input mode |
||||||
Output mode:2 channel relay NO contact output |
|||||||
Power supply |
Voltage range |
AC/DC 85~265V |
|||||
consumption |
＜5VA |
||||||
Operation Temperature |
-10 ºC~+55 ºC |
||||||
Storage Temperature |
-25 ºC ~+70 ºC |
||||||
Insulation resistance |
≥100MΩ |
||||||
Power frequency withstand voltage |
Between power supply set of terminals and signal Input, output set of terminals 2kV/1min (RMS) |
||||||
Altitude |
≤ 2500m |
||||||
Relative humidity |
≤93%RH, no condensation, without corrosive gas |
||||||

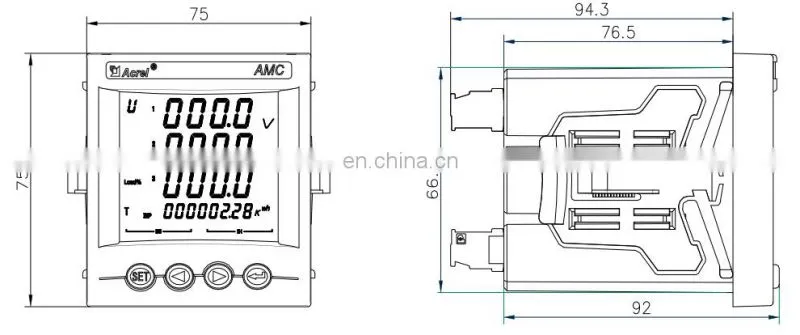

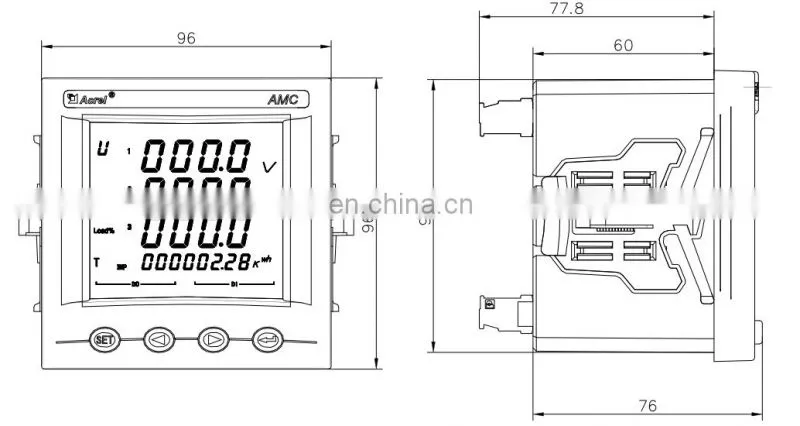

Dimension
faceplate size |
housing size |
cutout size |
cutout size |
||||||||
width |
height |
width |
height |
depth |
width |
height |
|||||
72 square |
75 |
75 |
66.5 |
66.5 |
94.3 |
67 |
67 |
||||
96 square |
96 |
96 |
90 |
90 |
77.8 |
92 |
92 |
||||

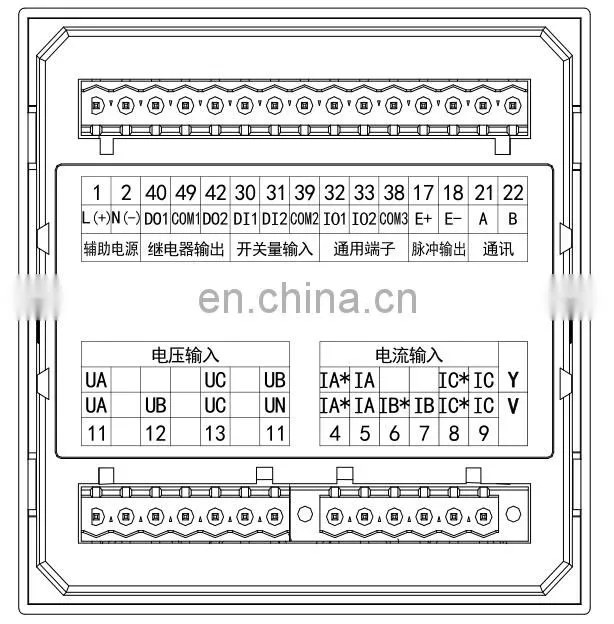

AMC72 series terminal block diagram
Note: Switching input: 32——DI3, 33——DI4; pulse output:
32——E +, 33 ——E-.

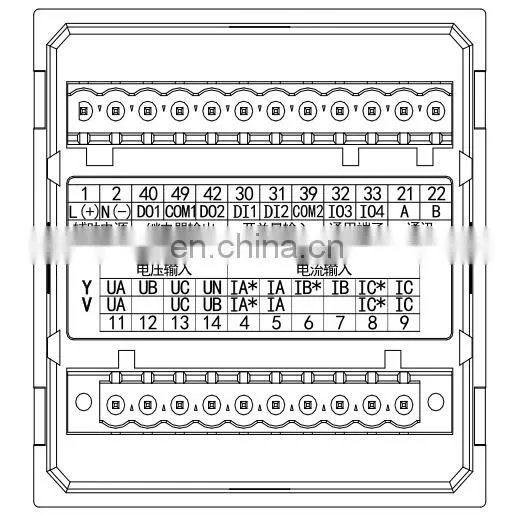

AMC96 series terminal block diagram
Note: Switching input: 32——DI3, 33——DI4, 38——COM3; pulse output: 32——AO1,33——AO2,38——COM3.
Wiring

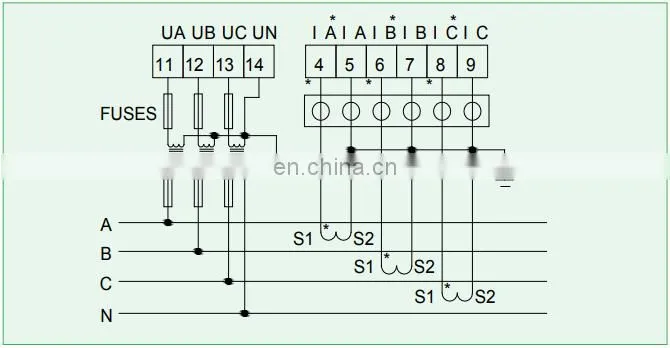

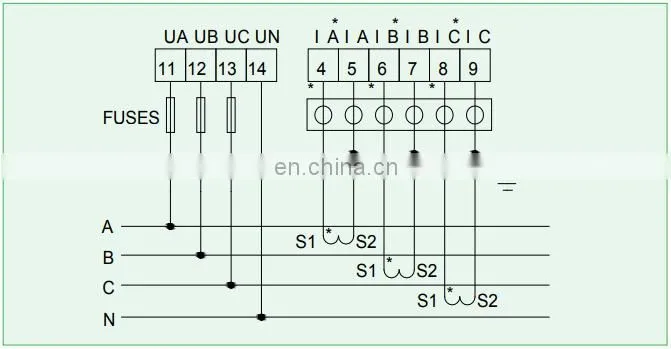

Three-phase four-wire 3CT

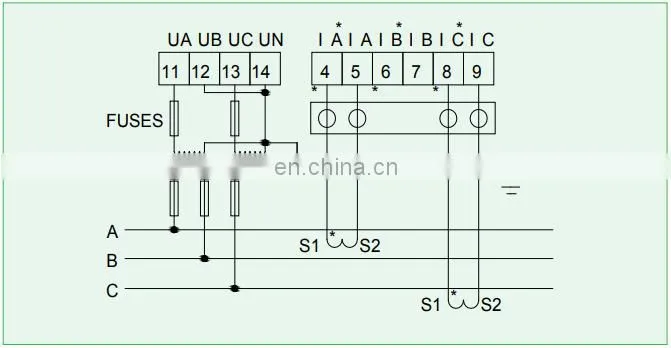

Three-phase three-wire 2CT
Three-phase four-wire 3PT , 3CT
Three-phase three-wire 2PT , 2CT
