intelligent electricity
collection and control device

AMC72-E4/KC is an economical and practical, intelligent electricity collection and control device for collecting, monitoring and controlling the electrical parameters.

Electrical measurement:
Phase voltage, line voltage and phase current
Split-phase active power and total active power
Split-phase reactive power and total reactive power
Split-phase apparent power and total apparent power
Split power factor and total power factor
Four-quadrant energy

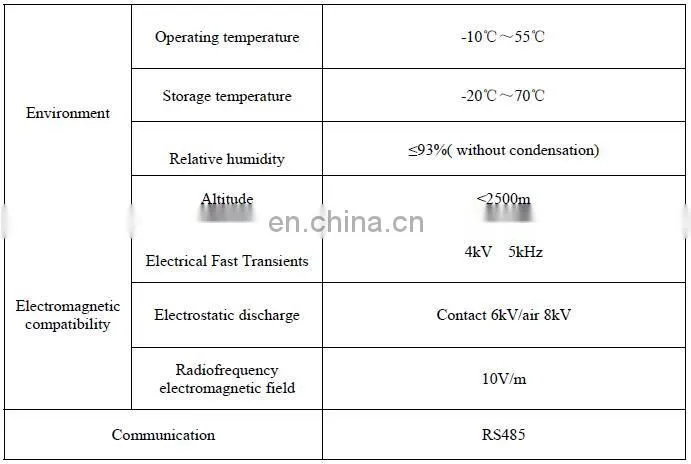

Technical Feature

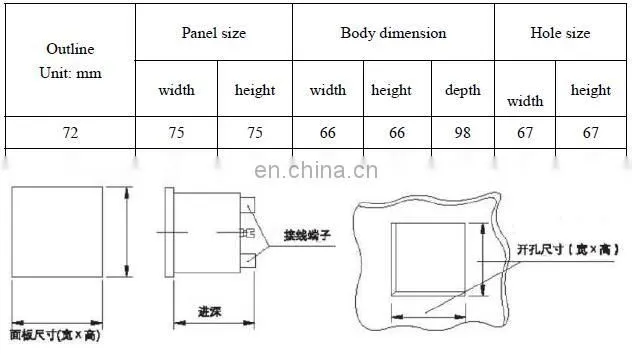

Outline and Size of Cut Out:

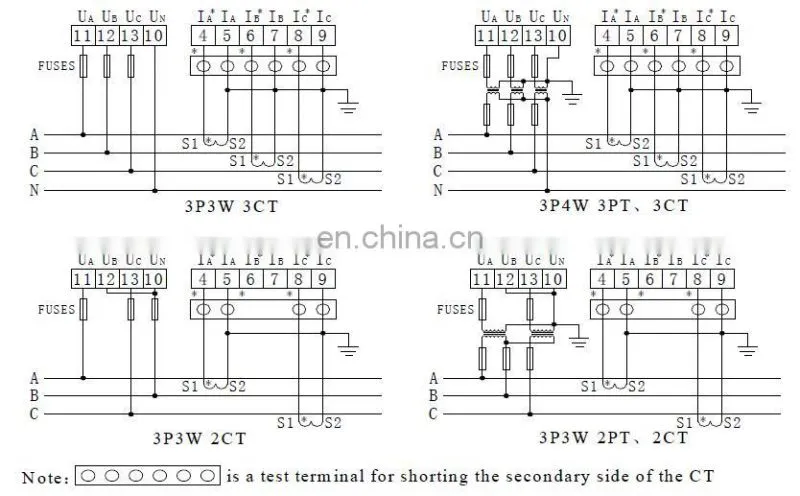

 Installation:
