Digital Power Meter AMC72L-E4/KC RS485 Modbus Kwh Meter Switching 4DI/2DO
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AMC72L-E4/KC 3 Phase Amp Volt Power Watt Hour Meter Electric Energy Meter LCD Panel Power Energy Monitoring Kwh With Rs485NegotiableMOQ: 1 -
AMC96L-E4/KC Smart Power Collection and Monitoring Device Power Meter With RS485 4DI/2DONegotiableMOQ: 1
-
Acrel 3 Phase 3 Wire Lcd Digital RS485 Programmable Electric Power Meter AMC96L-E4/KCNegotiableMOQ: 1
-
Intelligent Electricity Collection and Control Device Multifunction Power Meter AMC96L-E4/KCNegotiableMOQ: 1
-
AMC96L-E4/KC 96*96mm Smart Watt Meter Monitoring Power Ampere Volt Meter With RS485 4DI/2DONegotiableMOQ: 1
AMC72L-E4/KC
| Intelligent power collection and monitoring device | ||
| * True RMS Measurements * THD with 2-31st Harmo * Max/Min Log with Timestamp * Internal Optional 4DI&2DO or 2DI&2DO&2AO * Standard one Energy Pulse Output
| ||
INFORMATION
| Characteristic |
| Communication: RS485(Modbus-RTU),DL/T645-07/97 |
| Display : LCD display U, I, P, Q, PF, kWh and other energy consumption, power measure |
| Rated U and I : Voltage:AC 3×100, 3×380, 3×57.7/100V, 3×220/380V;Current:AC 1A, 5A |

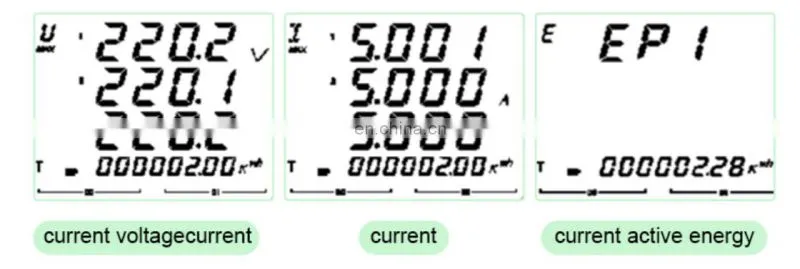

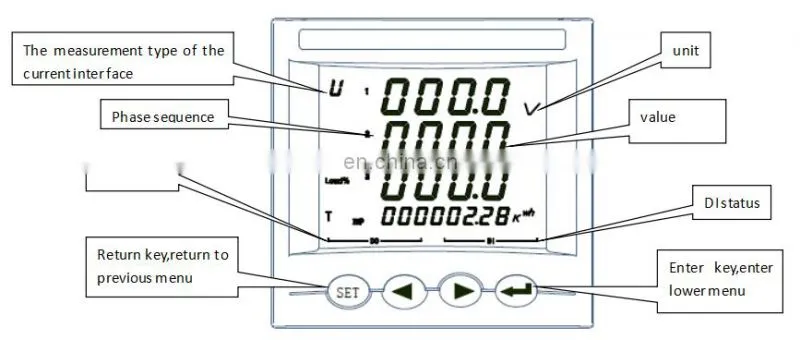

| LCD diaplay |
| Function |
|
Accuracy Active energy: Class 0.5 Frequency Range: 45-65Hz Auxiliary power supply AC/DC 85V-265V Pulse output 1600-160000imp/kWh Consumption Voltage:Power consumption: <0.5VA;
|
|
|
Installation
Pannel mounted
Dimension(L*W*H)
Pannel size(L×W):75*75mm
Cutout(L×W):67*67mm Housing(L×W×H):66*66*94.3mm Relay
3A/30VDC,3A/250VAC
Consumption
0.2%
|
| Wiring |
| Typical connection |
PARAMETER
