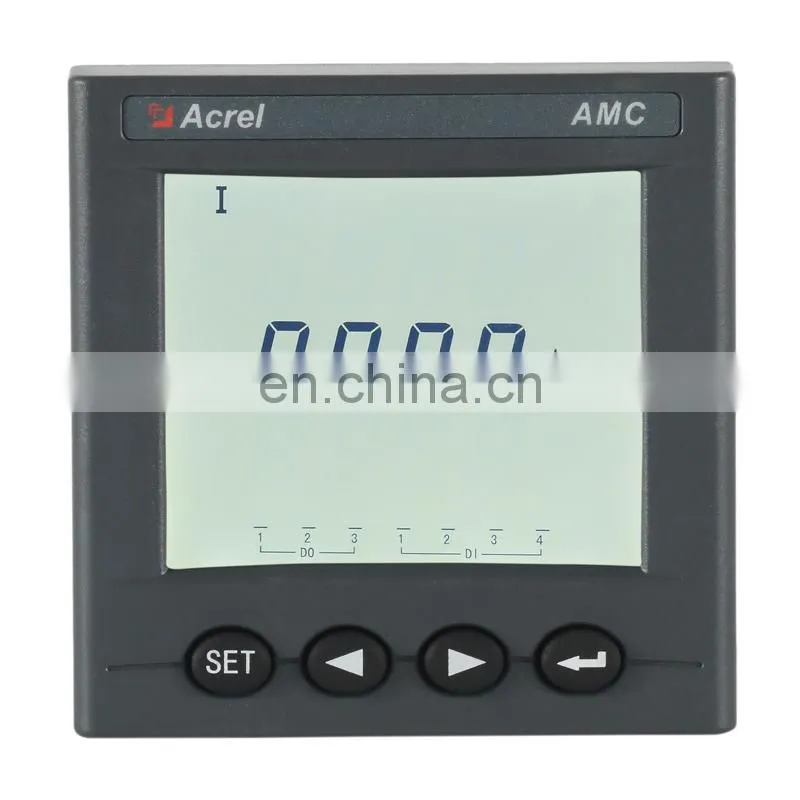

AMC72-E Programmable Intelligent Electric Parameter Meters--Single Phase Power Meter

AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater





*AC  Voltage: AC100V,220V,380V



* AC current:AC 1A,5A



* Four keys to communication and set parameters



* LED display for single phase electric circuit measurement



Characteristic

* Measurement: I,U,kW,kvar,KWh,kvarh,Hz,cos&

* Display: LED display

* Rated I:  AC current: AC 1A,5A

* Rated U: AC100V,220V,380V



LED Display



AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater

Function





Accuracy:

Current:Class 0.5

Power Supply:

AC 220V

Input consumption:

Current:Power consumption:< 0.5VA;
Power supply:power consumption≤5VA



AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater

AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater
     Installation
     Embedded installing
     Dimension(L*W*H)
     Faceplate(L×W):75*75mm
     Cutout(L×W):67*67mm
     Housing(L×W×H):66*66*98mm
     Switch relay
     DC 30V/2A AC 250V/2A


Wiring



AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater

Typical connection



AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater

Parameter


AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt materAC single phase digital power meter AMC72-E 75*75mm LED display kwh watt materAC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater

AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater



Certificate

AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater





AC single phase digital power meter AMC72-E 75*75mm LED display kwh watt mater
