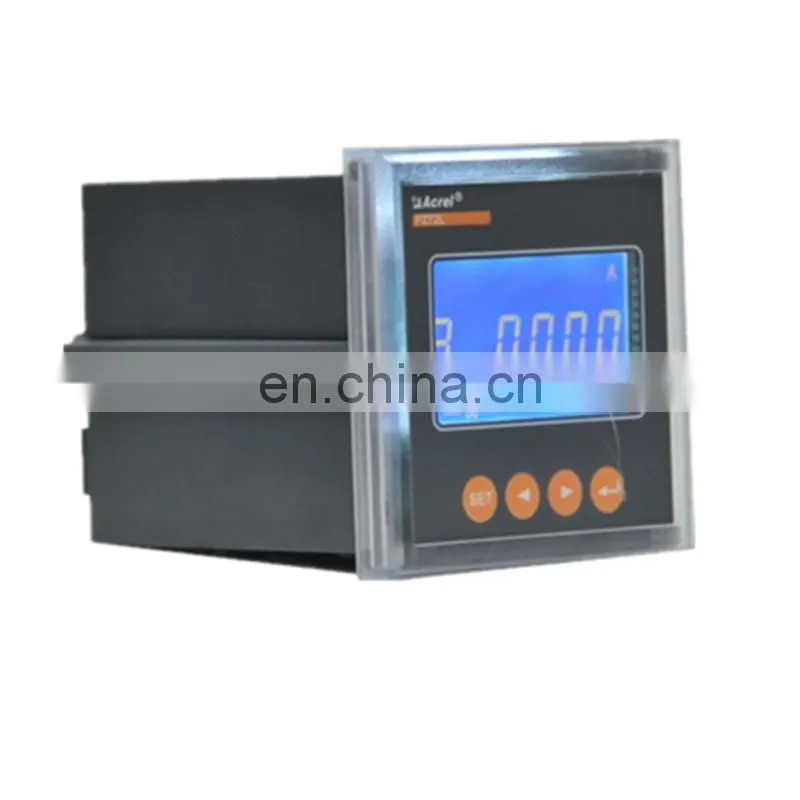

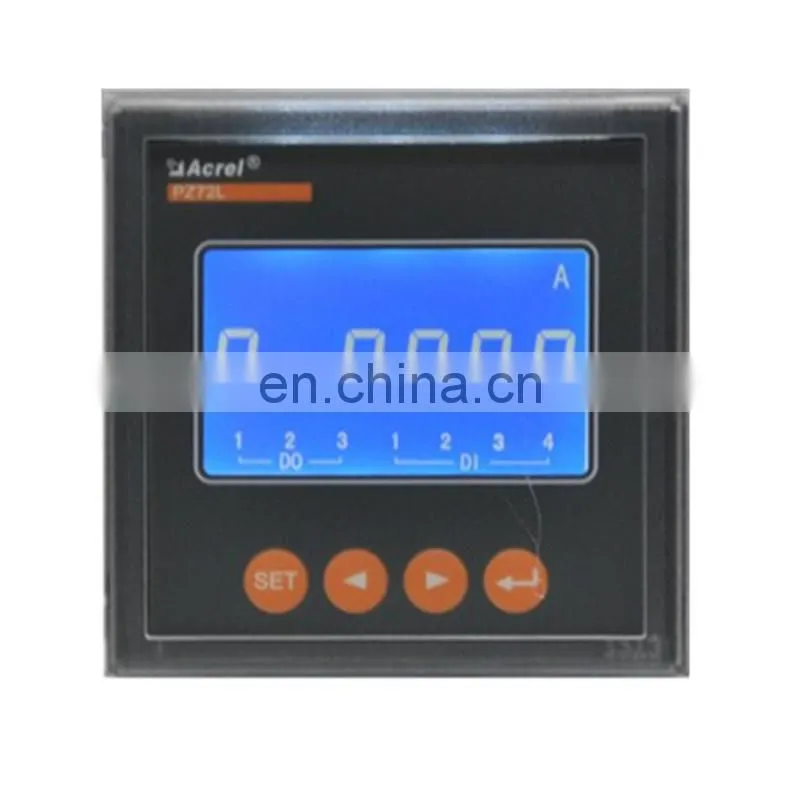

Single phase current meter PZ72L-AI
PZ series ammeters and voltmeters are programmable and intelligent, which adopt AC sampling technology, and can measure current and voltage directly. They can be used for local display, and also can be connected with the industrial control equipment to form the measurement and control system.It can be equipped with RS485 communication interface under Modbus-RTU protocol;
Electric signals can be converted to the standard analog output ;it can be with 1 channel alarm or 4(2) channels DI/2 channels DO. According to different request,meter’s parameters can be set by keys on its panel.
Product Specification
| Model | The Basic Function | Outline Dimension(mm) | Unit price /USD |
| PZ72L-AI/C |
Single phase current measurement, LCD digital display /C: One channel RS485,Modbus-RTU protocol |
75*75 | 56.7 |

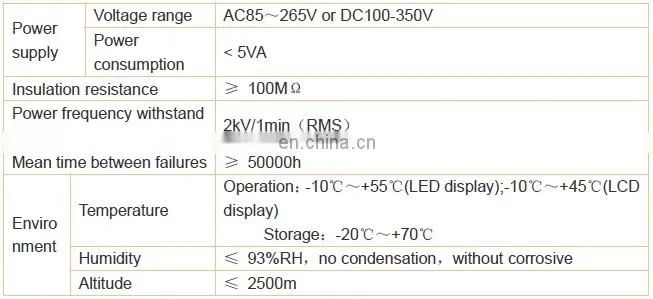

Technical Feature
Outline and Size of Cut Out:
| Outline | Panel size | Housing size | Cutout size | ||||
| Unit:mm | Height | Width | Height | Width | Depth | Width | Height |
| PZ72L-AI | 75 | 75 | 66 | 66 | 98 | 67 | 67 |

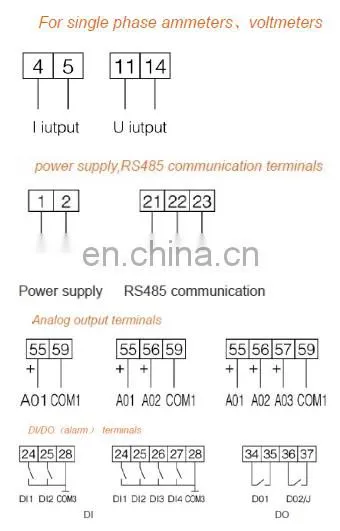

Installation:
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certificate
Packing
Shipping
