Home > Instruments & Meters > Meter for Electricity > Current Meter > Digital Amp Meter AMC48-AI LED Display Single Phase Panel Current Meter

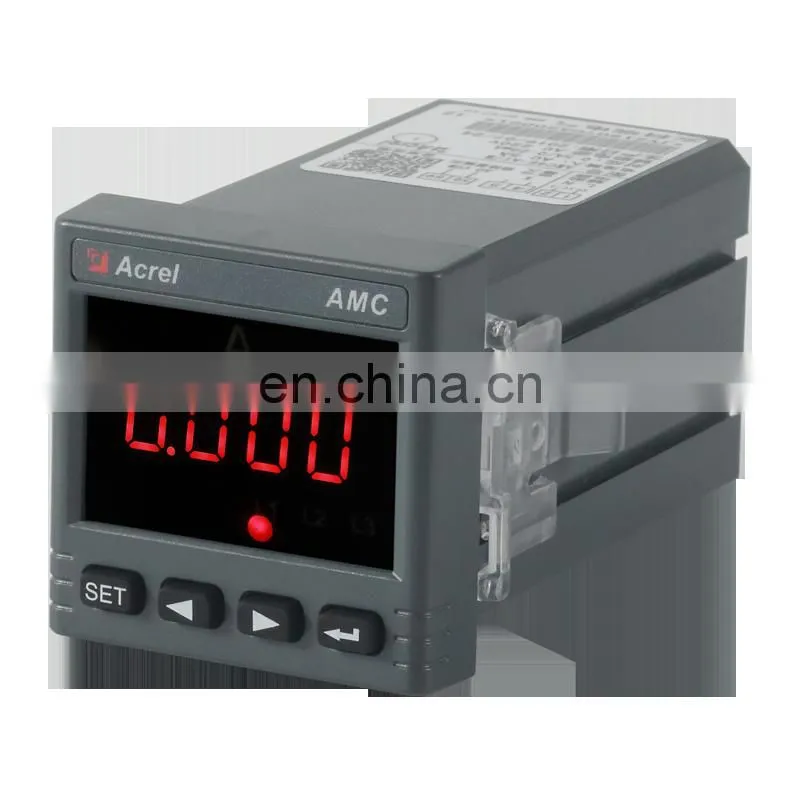

Digital Amp Meter AMC48-AI LED Display Single Phase Panel Current Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AMC48-AI/C Single Phase Mini Current Monitor Meter Ammeter With Modbus Rs485NegotiableMOQ: 1 -
Digital Single Phase Amp Meter RS485 Communication PZ72L-AI/C LCD Display ac Current MeterNegotiableMOQ: 1
-
Acrel PZ72-AI/C Single Phase Programmable LED Display Ammeter With RS485 CommunicationNegotiableMOQ: 1
-
Single Phase Current Meter LED Display Ammeter PZ48-AI/M With 4-20mA Analog OutputNegotiableMOQ: 1
-
AC Multifunction Power Meter 3-phase Full Electric Parameter Mesurement Energy Meter Acrel AMC96L-E4/KC RS485 Modbus-RTUNegotiableMOQ: 1
AMC48-AI Programmable Intelligent Electric Parameter Meters--Single phase current
|
|
* AC Rated current :AC 1A or 5A
* LED display for single phase current measurement
|
Characteristic
* Display: LED display
* Rated I: AC 1A or 5A
LED Display
Function
|
Accuracy: Current:Class 0.5 Power Supply: AC/DC 85-270V Input consumption: Current:Power consumption:< 0.5VA;
|
|
|
Installation
Embedded installing
Dimension(L*W*H)
Faceplate(L×W):48*48mm
Cutout(L×W):45*45mm Housing(L×W×H):44*44*93mm Switch relay
DC 30V/3A AC 220V/3A
Starting current
0.3%
|
Wiring
Typical connection
Parameter
