Small Flow Distribution Digital Knob Peristaltic Pump

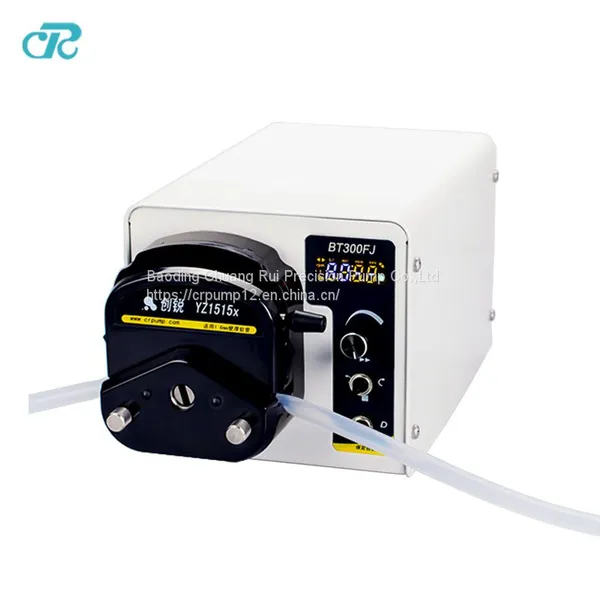

Small Flow Distribution Digital Knob Peristaltic Pump photo-1
Small Flow Distribution Digital Knob Peristaltic Pump photo-2
US$ 420 - 480 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CRPUMP
Place of Origin:
China
Application:
Other, BT300FJ Peristaltic Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days
Brand Name CRPUMP
Place of Origin China
Application Other, BT300FJ Peristaltic Pump
Fuel Gasoline
Power Electric
Usage Other, water /oil
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure

Peristaltic pump application 1 Lab
Peristaltic pump application 1 Lab
The liquid filling of the Peristaltic Tube Pump only passes through the hose, does not touch the pump body, and has no valves or seals and other connecting parts. Routine maintenance only requires regular replacement of the hose, which reduces the maintenance cost of the user. Basic peristaltic filling pump, Available flow rate from 0.007 to 1140 ml/min, with transfer and filling 2 work modes. You can use the mode switch to change the work mode easily. The Peristaltic pumps can set the suck-back angle and speed which can reduce the liquid drip when liquid transfers or filling. The pump can work with a foot pedal that you can control the pump in a  longer distance instead of the traditional way of the start-stop switch.
Parameter   Model : BT300FJ/YZ1515x
Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
Speed
0.1-300rpm
Speed resolution
0.1rpm
Flow rate
0.007-1140ml/min
Display
4-LED display
Speed control model
Rotary encoded switch control speed
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
External control
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface
RS232 and RS485, support MODBUS protocol mode
Foot pedal
Yes
Power
Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow with 100 rpm(ml/min)
18#
7.9
11.1
Silicon tube
1140
17#
6.4
9.6
Silicon tube
870
25#
4.8
8
Silicon tube
510
16#
3.2
6.4
Silicon tube
246
19#
2.4
5.6
Silicon tube
153
14#
1.6
4.8
Silicon tube
81
13#
0.8
4
Silicon tube
21
