CR Cosmetic Products Filling Peristaltic Pump System With 4 Filling Heads

CR Cosmetic Products Filling Peristaltic Pump System With 4 Filling Heads thumbnail-1
CR Cosmetic Products Filling Peristaltic Pump System With 4 Filling Heads photo-1
US$ 2000 - 2200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Application:
Other, UTF01
Contact Supplier Request Quote Chat Now
Baoding Chuang Rui Precision Pump Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Application Other, UTF01
Fuel Gasoline
Power Electric
Usage Other, water/oil
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year, 1 Year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • CR

  • Model Number:

  • UTF01

  • Place of Origin:

  • Hebei, China

  • Application:

  • Automotive Industry, Food and Beverage Industry, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions

  • Horsepower:

  • None

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • peristaltic pump filling system

  • Cable Length:

  • none

  • Outlet Size:

  • Max 7.9mm

  • Voltage:

  • AC220V or AC110V

  • Power:

    • Certification:

    • ce, ISO

    • Model:

    • UTF01

    • Pump head:

    • YZ1515X

    • Speed:

    • Max 600 rpm/min

    • Flow rate:

    • 0.007-2280ml/min/channel

    • Display Mode:

    • LCD(English and Chinese optional)

    • Control Method:

    • Touch screen

    • MOQ:

    • 1 set
Supply Ability

  • Supply Ability

  • 1000 Piece/Pieces per Month

Packaging & Delivery

  • Packaging Details

  • CR cosmetic products filling peristaltic pump system
    1,The package contains: peristaltic pump filling system, power cord and other accessories, instruction manual and so on.
    2,Foam and carton packaging protects products safely during transport

  • Port

  • Beijing,shanghai,guangzhou

  • Lead Time:

  • Quantity(Pieces) 1 - 3 >3
    Est. Time(days) 10 To be negotiated
Product Description
2 nozzles 4 nozzles 6 nozzles Multiple Channels Liquid Filling Peristaltic Pump
This multiple channels filling peristaltic support PLC control which can work with your packing machine.
Support Nozzles number customized to meet your production requirement .
Order guide
multiple nozzles filling pump

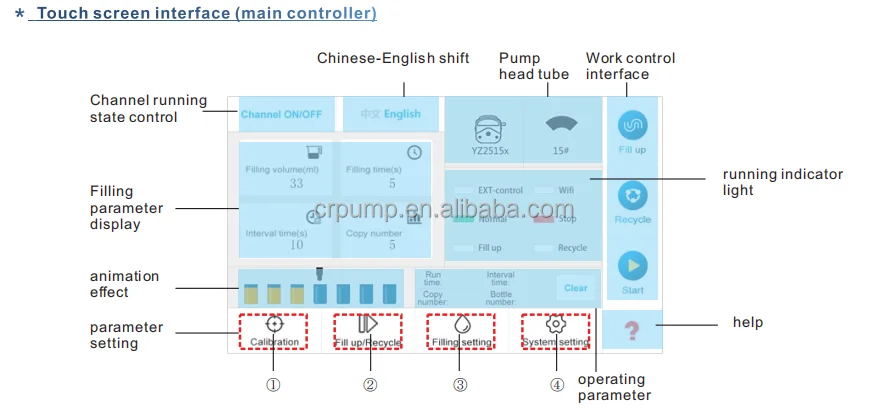

UTF01 is a filling peristaltic pump independently developed by Chuangrui Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels (2 3 4 5 6 optional), which can be expanded up to 32 channels. UTF01 can be installed with multiple types of pump heads and adapted to multi-specification tubes, which can fully meet customer application needs and provide more flow selection. Various functions, large screen display, touch screen operation, accurate flow, make filling production more peace of mind. Multiple channels can be opened at the same time for liquid filling, or the filling value of each channel can be set individually for filling. Support customized solutions.
Specifications
Model
UTF01
Pump head
YZ1515x
Channel number
4 is standard
Max 32 channels
Pump head in series
1 is standard
Max 2 heads for each channels
Filling volume
0.1ml-9999.99ml/time
Display adjustment resolution: 0.01ml
Filling time
0.1s-9999.9s/time
Display adjustment resolution: 0.1s
Filling times
0-9999time
"0" is an infinite loop
Back suction speed
0-1000°
Display adjustment resolution: 1°
Back suction delay
0-300rpm
Display adjustment resolution: 1rpm
Interval time
0.5s-9999.9s/time
Display adjustment resolution: 0.1s
Channels number
channel / unit (standard),23456 channel / unit (optional)
Scalable up to 32N4
Back suction delay
0s-60s
Display adjustment resolution: 0.1s
Power supply
 220v or 110v optional
External Control
start-stop cable // No bottle no filling function can work with your sensor or PLC.
Noted:
1.The defaulted model we will send is UTF014Y1W1 with silicon tube 18#
2.Defaulted channel number is 1 ,If you need multiple pls contact us
3, Support multiple channels customized, more info ,pls contact us.
Order Number
Model
Pump head
Channel number
Pump head in series
Tube model
Max Flow per head
UTF0102Y1W1
UTF01
YZ1515x(White)
2
1
18#
2280ml/min
UTF0104Y1W1
4
UTF0108Y1W1
8
UTF0112Y1W1
12
UTF0116Y1W1
16
UTF0120Y1W1
20
UTF0124Y1W1
24
UTF0128Y1W1
28
UTF0132Y1W1
32
Tube specifications for the pump tube of  YZ1515x
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID
(mm)
OD
(mm)
Standard material
Max Flow
(ml/min)
Filling capacity
Filling speed
(times per hour)
18#
7.9
11.1
Silicon tube
2280
20-1000 ml
100-2500
17#
6.4
9.6
Silicon tube
1740
20-100 ml
600-2400
25#
4.8
8
Silicon tube
1020
10-50 ml
900-2500
16#
3.2
6.4
Silicon tube
492
5-30 ml
600-2400
19#
2.4
5.6
Silicon tube
306
2-20 ml
600-3000
14#
1.6
4.8
Silicon tube
162
1-10 ml
600-3000
13#
0.8
4
Silicon tube
42
0.5-5 ml
300-2000
