Touch Screen And Button Distribution Peristaltic Pump

Touch Screen And Button Distribution Peristaltic Pump photo-1

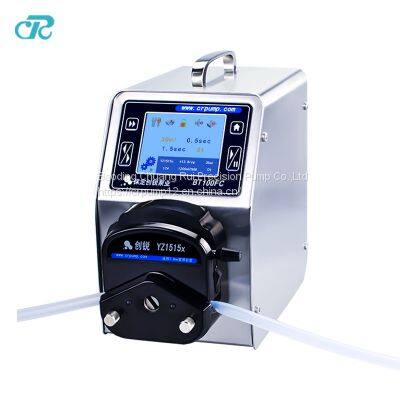

Touch Screen And Button Distribution Peristaltic Pump photo-2
US$ 450 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CRPUMP
Place of Origin:
China
Application:
Other, BT100FC Peristaltic Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days
Brand Name CRPUMP
Place of Origin China
Application Other, BT100FC Peristaltic Pump
Fuel Gasoline
Power Electric
Usage Other, water /oil
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure

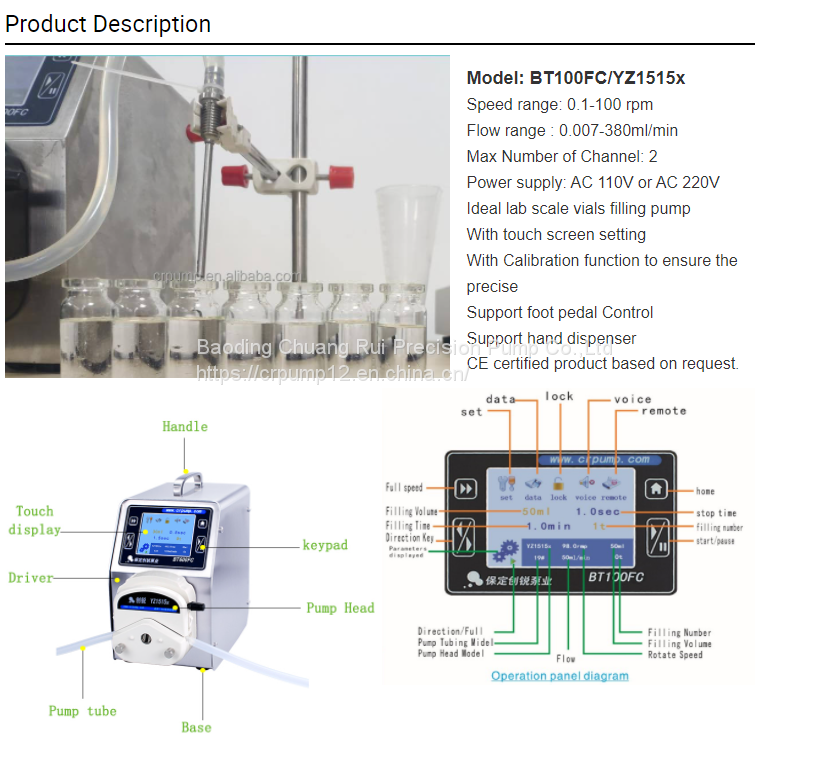

BT100FC is a peristaltic pump as a small filling machine, The max speed is 100rpm, with
max flow rate 380ml/min.The speed revolution of it is 0.1rpm, it is a stepper motor peristaltic pump with high precision. As a dispensing pump, customers can set the filling data such as filling volume, filling time, interval time and copy numbers as requirement, it is a programmable peristaltic pump, Inside there is CR control board. Also support RS485/RS232/MODBUS communication protocol, analog quality control(0-5V,0-10v, 4-20mA,) foot pedal control.
BT100FC, can be used as a small bottle filling pump. If the bottle volume is small, BT100FC is a best choice with high cost-effective. It can fill various liquid which is similar with water, such as eye drop, perfume, nasal irrigation water, etc.
CR smart filling peristaltic pump is one of the best choice for vial filling
Parameter   Model : BT100FC/YZ1515x
Speed
0.1-100rpm
Speed resolution
0.1rpm
Flow rate
0.007-380ml/min
Filling volume range
0.1ml-9999L
Filling time range
0.1s~9999min
Pause time range
0.1s~9999min
Copy number
0-9999 t
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
External control
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface
RS232 and RS485, support MODBUS protocol mode
Foot pedal
Yes

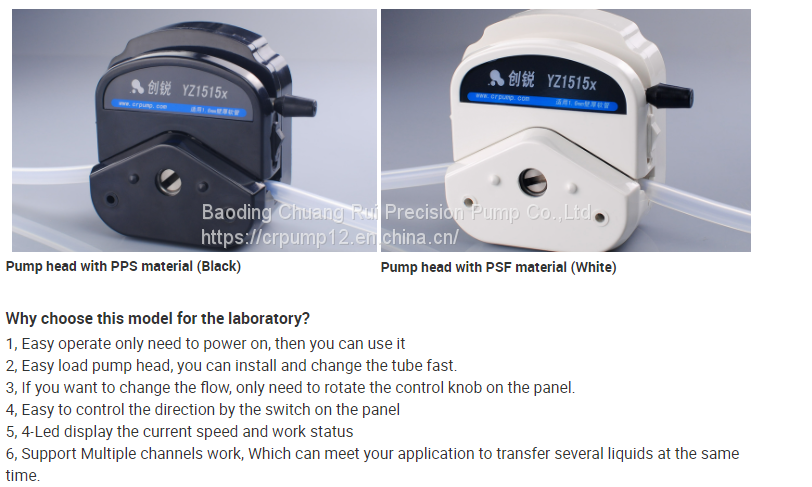

Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow range(ml/min)
18#
7.9
11.1
Silicon tube
0.38-380
17#
6.4
9.6
Silicon tube
0.29-290
25#
4.8
8
Silicon tube
0.17-170
16#
3.2
6.4
Silicon tube
0.082-82
19#
2.4
5.6
Silicon tube
0.051-51
14#
1.6
4.8
Silicon tube
0.027-27
13#
0.8
4
Silicon tube
0.007-7

Product Tags: Peristaltic Pump , Touch Screen And Button Peristaltic Pump , Distribution Peristaltic Pump
