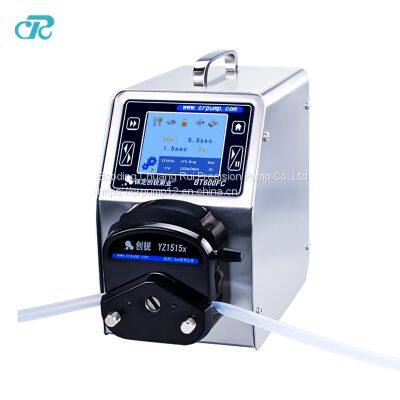

Touch Screen And Button Liquid Can Peristaltic Pump

Name: Touch Screen And Button Liquid Can Peristaltic Pump
Brand: CRPUMP
SKU: 167712925
Availability: InStock

US$ 680 - 720 MOQ: 1 Set

Key Specifications

Brand Name:

CRPUMP

Place of Origin:

China

Application:

Other, BT600FC Peristaltic Pump

Baoding Chuang Rui Precision Pump Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin /Shanghai

Delivery Detail:

7 days

Brand Name CRPUMP

Place of Origin China

Application Other, BT600FC Peristaltic Pump

Fuel Gasoline

Power Electric

Usage Other, water /oil

Theory Electromagnetic Pump

Standard or Nonstandard Standard

Structure Other, peristaltic pump

Pressure Low Pressure

Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.

Speed	0.1-600rpm
Speed resolution	0.1rpm
Flow rate	0.007-2280ml/min
Filling volume range	0.1ml-9999L
Filling time range	0.1s~9999min
Pause time range	0.1s~9999min
Copy number	0-9999 t
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range (ml/min)
18#	7.9	11.1	Silicon tube	0.38-2280
17#	6.4	9.6	Silicon tube	0.29-1740
25#	4.8	8	Silicon tube	0.17-1020
16#	3.2	6.4	Silicon tube	0.082-492
19#	2.4	5.6	Silicon tube	0.051-306
14#	1.6	4.8	Silicon tube	0.027-162
13#	0.8	4	Silicon tube	0.007-42
