Touch Screen And Button Transmission Peristaltic Pump

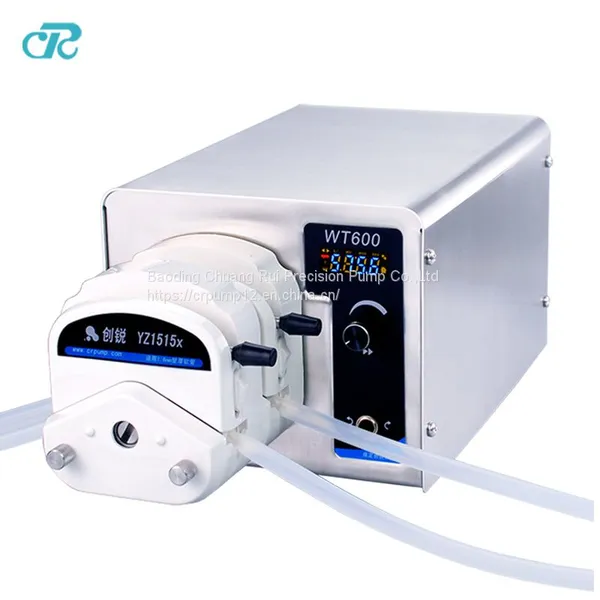

Touch Screen And Button Transmission Peristaltic Pump photo-1

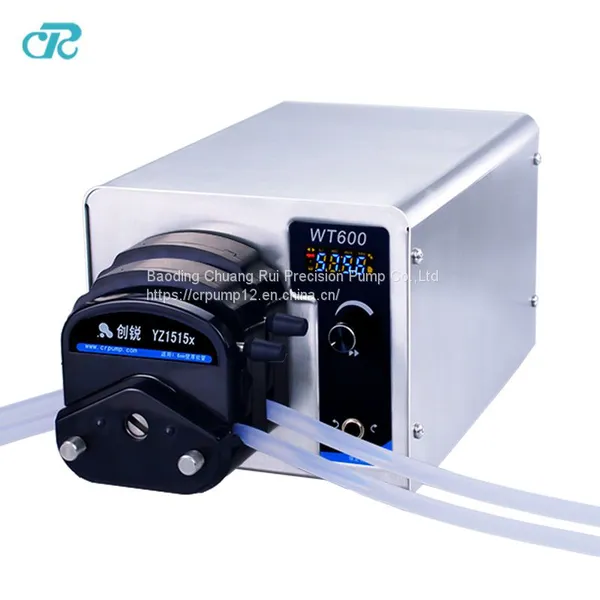

Touch Screen And Button Transmission Peristaltic Pump photo-2
US$ 580 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CRPUMP
Place of Origin:
China
Application:
Other, BT300LC Peristaltic Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days
Brand Name CRPUMP
Place of Origin China
Application Other, BT300LC Peristaltic Pump
Fuel Gasoline
Power Electric
Usage Other, water /oil
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure

The peristaltic pump hose, has one substantial benefit:  accurate dispensing or metering without risk of cross-contamination.  Dual channel Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage. For example, in medical or laboratory devices, Dual channel peristaltic pumps can be used for processing of sterile fluids, dialysis, filtration, or bio-processing, Our model BT300LC peristaltic infusion pump is very popular in hospital, it has high accuracy as it’s also stepper Motor Peristaltic Pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want variable peristaltic pump with high flow/medium flow/micro flow, choose Chuangrui brand is the best choice.
Parameter   Model : BT300LC/YZ1515x
Speed
0.1-300rpm
Speed resolution
0.1rpm
Flow rate
0.007-1140ml/min/channel
Control Method
Touch screen + keypad
Display Mode
LCD(English and Chinese optional)
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
External control
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface
RS232 and RS485, support MODBUS protocol mode
Foot pedal
Yes
Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow range(ml/minchannel)
18#
7.9
11.1
Silicon tube
0.38-1140
17#
6.4
9.6
Silicon tube
0.29-870
25#
4.8
8
Silicon tube
0.17-510
16#
3.2
6.4
Silicon tube
0.082-246
19#
2.4
5.6
Silicon tube
0.051-153
14#
1.6
4.8
Silicon tube
0.027-81
13#
0.8
4
Silicon tube
0.007-21

Product Tags: Peristaltic Pump , Touch Screen And Button Peristaltic Pump , Transmission Peristaltic Pump
