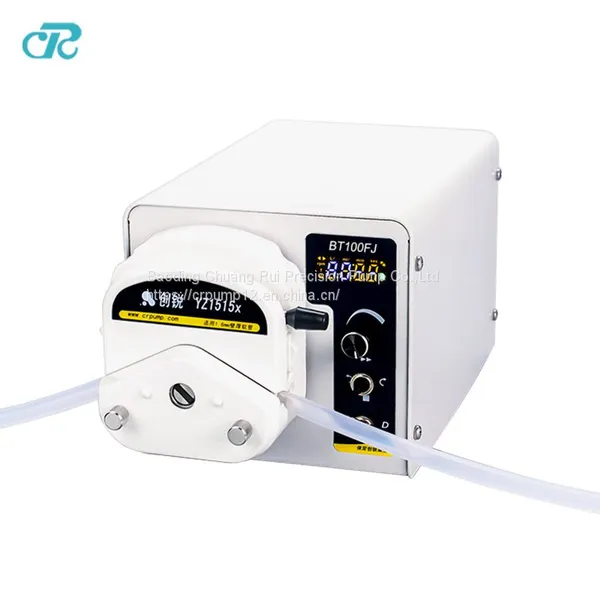

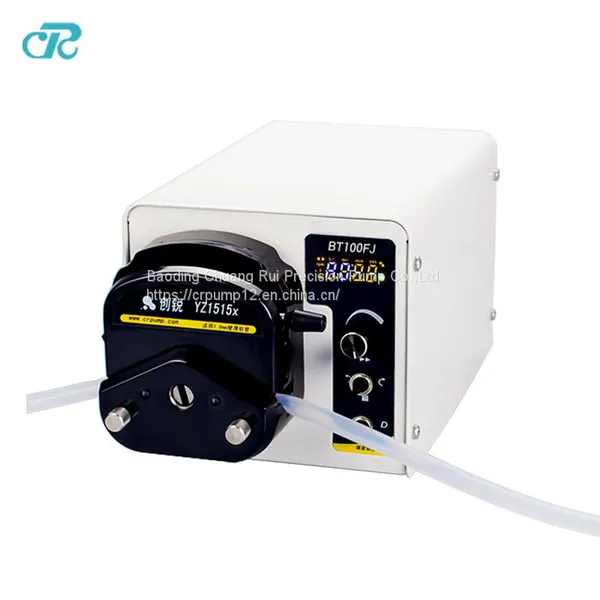

4-LED Distribution Digital Knob Basic Peristaltic Pump

Name: 4-LED Distribution Digital Knob Basic Peristaltic Pump
Brand: CRPUMP
SKU: 167712181

US$ 300 - 450 MOQ: 1 Set

Key Specifications

Brand Name:

CRPUMP

Place of Origin:

China

Application:

Other, BT100FJ Peristaltic Pump

Baoding Chuang Rui Precision Pump Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin /Shanghai

Delivery Detail:

7 days

Brand Name CRPUMP

Place of Origin China

Application Other, BT100FJ Peristaltic Pump

Fuel Gasoline

Power Electric

Usage Other, water /oil

Theory Electromagnetic Pump

Standard or Nonstandard Standard

Structure Other, peristaltic pump

Pressure Low Pressure

Peristaltic pump application 1 Lab

Parameter Model : BT100FJ/YZ1515x Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.

Speed	0.1-100rpm
Speed resolution	0.1rpm
Flow rate	0.007-380ml/min
Display	4-LED display
Speed control model	Rotary encoded switch control speed
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
Flow accuracy	≤±0.5%
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes
Power

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow with 100 rpm(ml/min)
18#	7.9	11.1	Silicon tube	380
17#	6.4	9.6	Silicon tube	290
25#	4.8	8	Silicon tube	170
16#	3.2	6.4	Silicon tube	82
19#	2.4	5.6	Silicon tube	51
14#	1.6	4.8	Silicon tube	27
13#	0.8	4	Silicon tube	7
