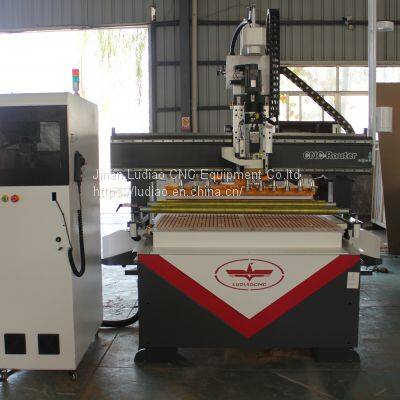

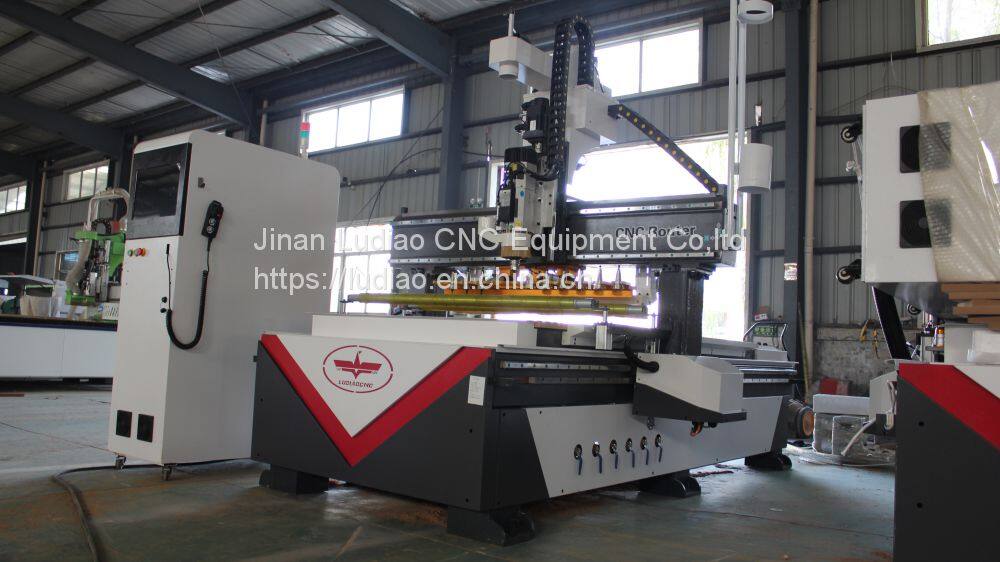

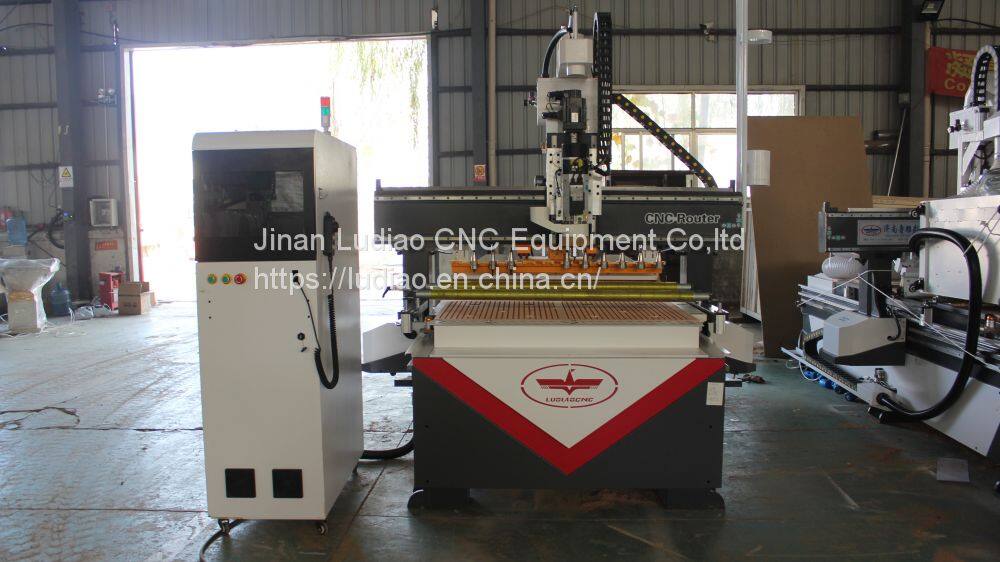

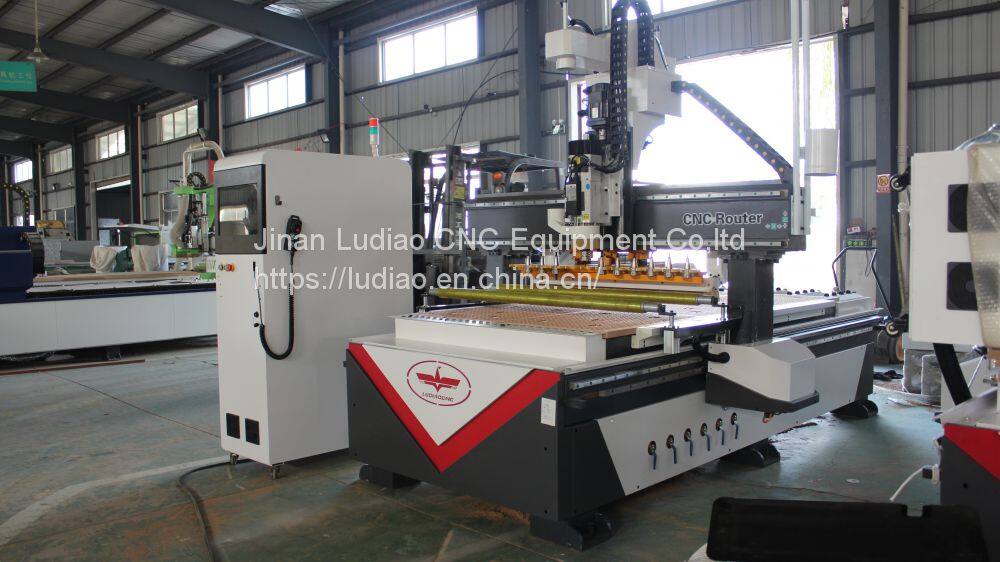

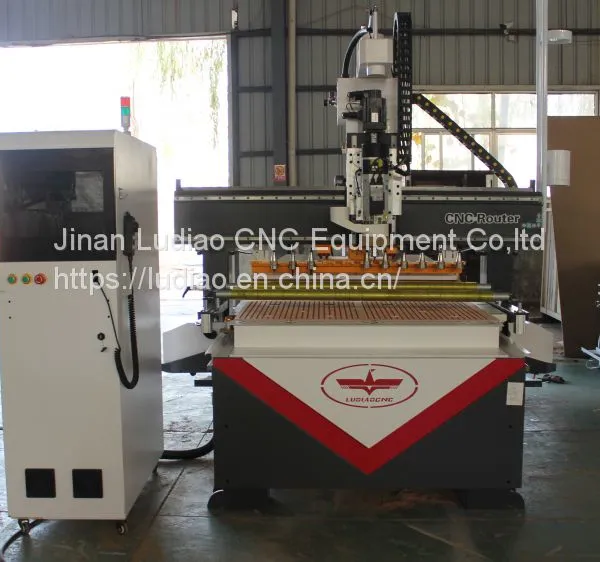

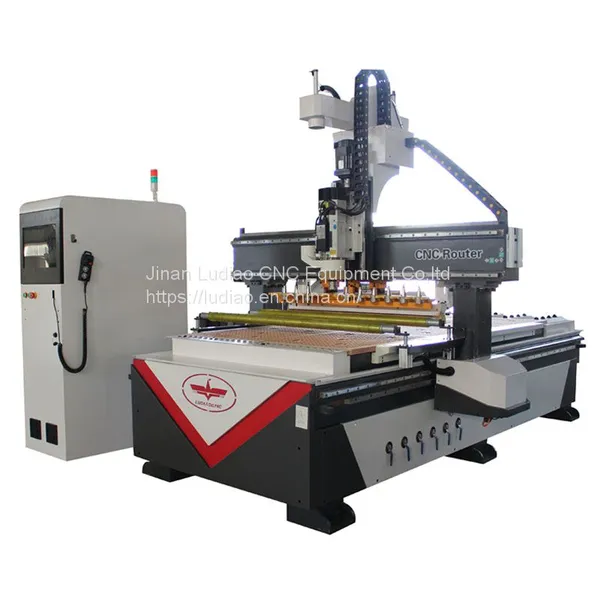

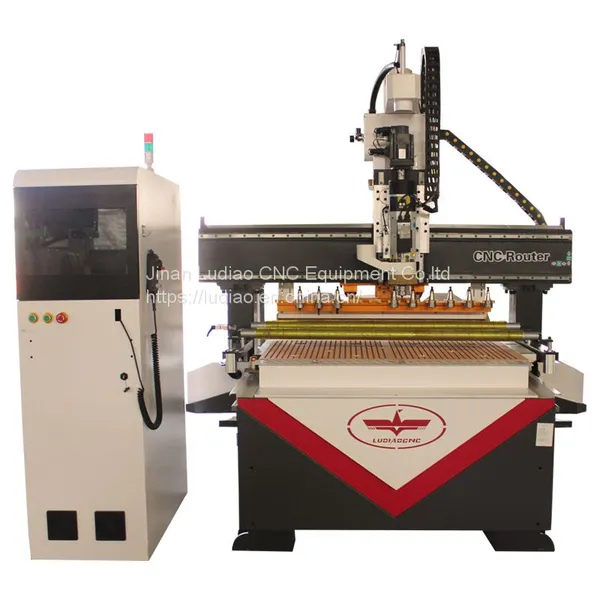

automatic Linear tool changer 2040 CNC wood router machine for wood furniture door cabinet making CNC router 1325

Name: automatic Linear tool changer 2040 CNC wood router machine for wood furniture door cabinet making CNC router 1325
Brand: ludiao
Price: USD $10850 - 15000 / Set

FOB Price

USD $10850 - $15000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card Other
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ludiao	Place of Origin:	China	Model Number:	LD1325
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 year
Weight:	1000kg	Dimension(LWH):	13002500200mm	Voltage:	380V
Condition:	New	Power(W):	9KW	CNC or Not:	CNC

Product Description

automatic Linear tool changer 2040 CNC wood router machine for wood furniture door cabinet making CNC router 1325

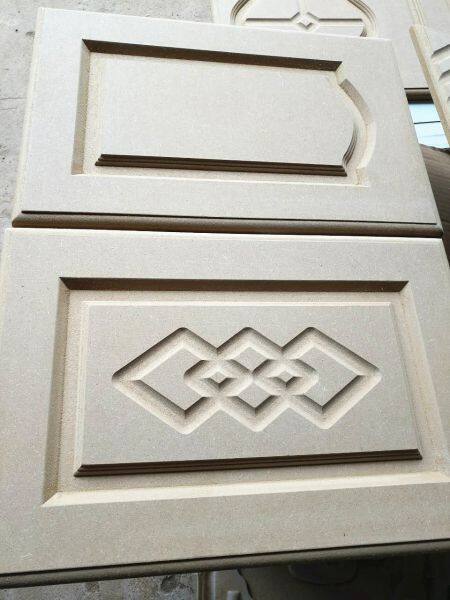

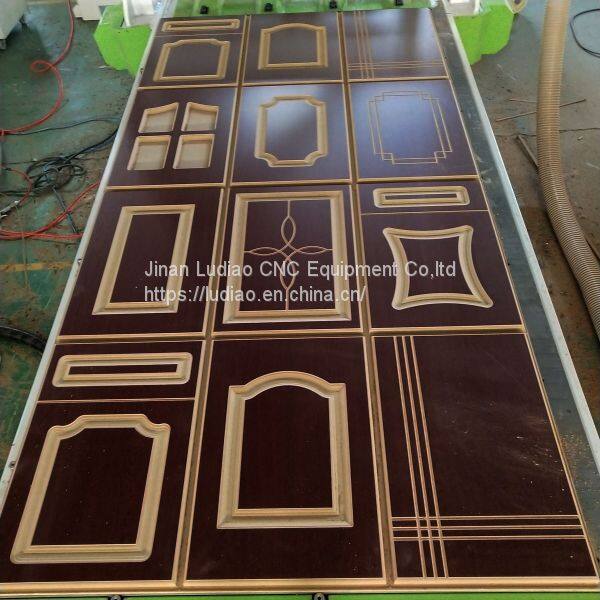

1.Application of CNC router

Applies to furniture, home improvement, paint, doors, carpentry, decoration, wooden crafts, cabinet doors, screens, three-dimensional wave board, advertising, shell processing of precision instruments, musical instruments, casket and other industries.

2.Applicable material

Wood, plastic,plywood,lidwood.acrylic.aluminum .copper etc

4.Specification of the wood router

Model	LD-1325 ATC cnc router
Working area	1300*2500mm
Table size	1540*3140mm
Z-axis working area	300mm
Resolution	+/- 0.01mm
Max. Cutting Speed	70m/min
X- and Y- axis transmission	Germany Herion Rack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	China HQD 9.0KW, air-cooling
Working Mode	Taiwan Delta 750W Servo motor
XY Transmission	Imported Rack
Z transmission	Taiwan TBI Ball screw
Reudcer	Japan Shimpo

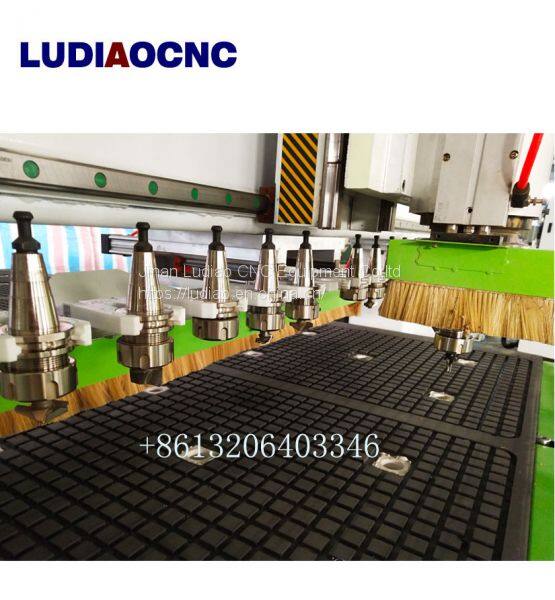

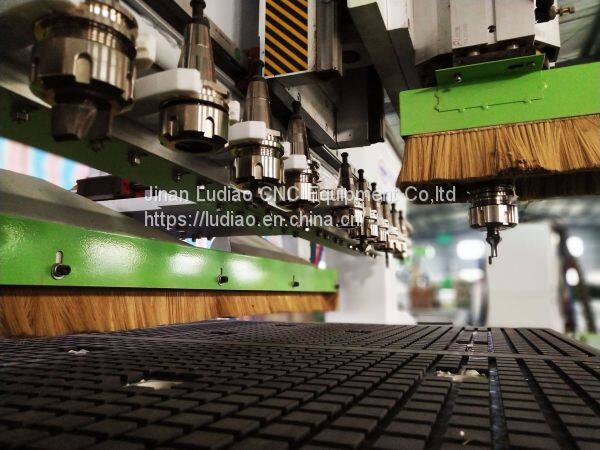

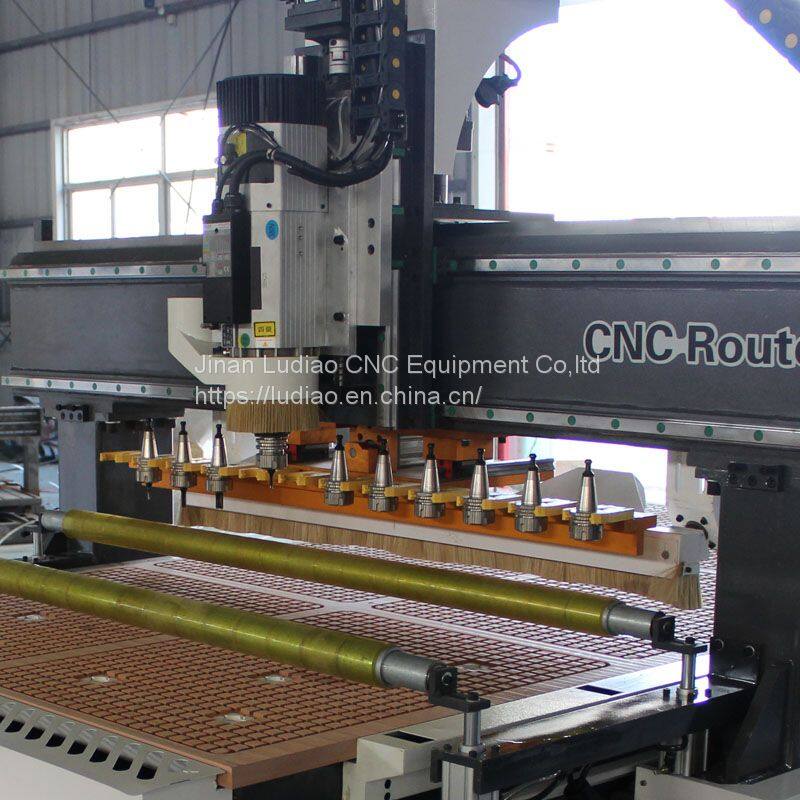

Auto Tool Change	Yes, Linear type

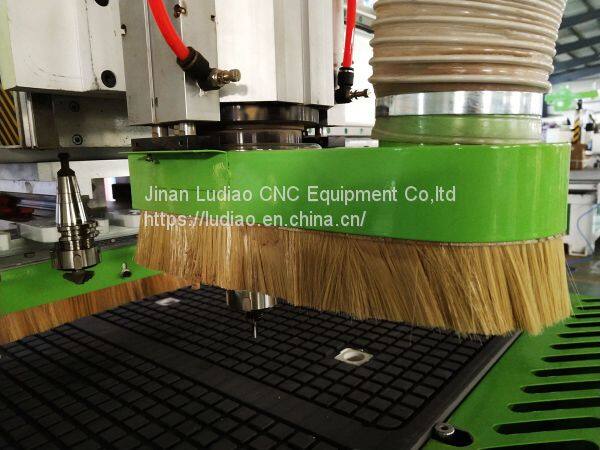

Dust-collection function	Yes

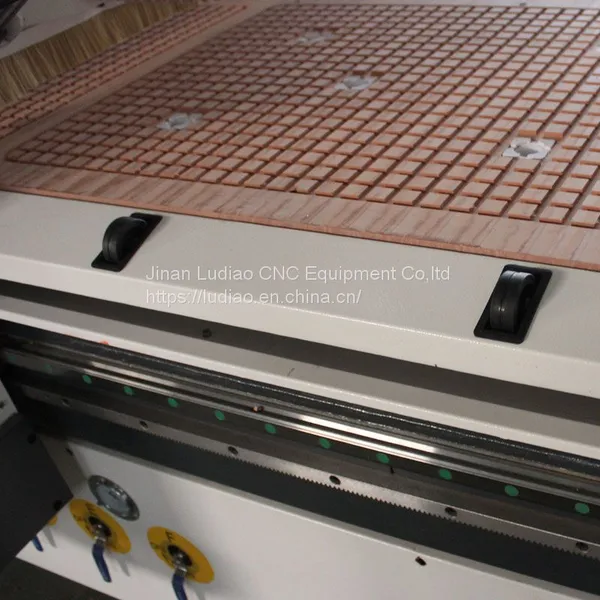

Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Invert-er	HPMANT 11KW
Software	Artcam
Command	G code, HPGL,U00, mmg, plt
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan LNC Control System
Standard power	3P 380V,50Hz
Accessories	1.Cutting tools and knife clip 2.Air pump 7.5KW 3.Dust collector 4.Software 5.Spanner 6.Manual 7.Tool collimator 8.Tool handle 9.Rotary(Optional)
Package	Plywood case
Warranty for the spindle	Half a year
Warranty for the machine	One year
Delivery time	10 working days
Package	Wooden case
Packing size	3.622.21m

About our Company

Our factory Jinan Ludiao CNC Equipment Co.,ltd

With 10 years(company registered and build in 2010) manufacturer experience in Jinan Shandong,China,7 years exporting experience,6000㎡ work factory,30 experienced assembly worker ,5 professional technician engineer,20 sales for both oversea and local market,We are aim for Quality first ,Reputation above all ,Global service !
