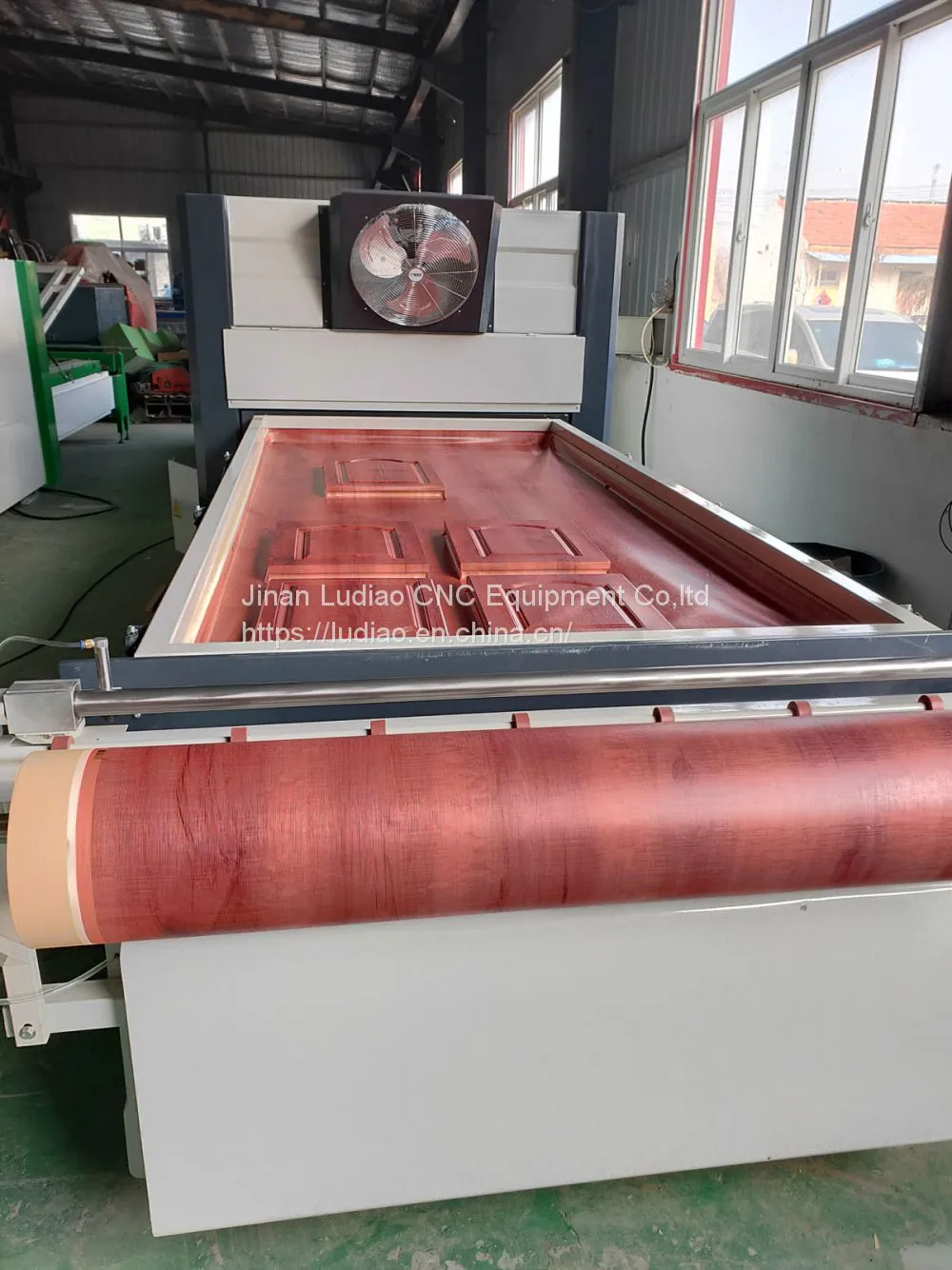

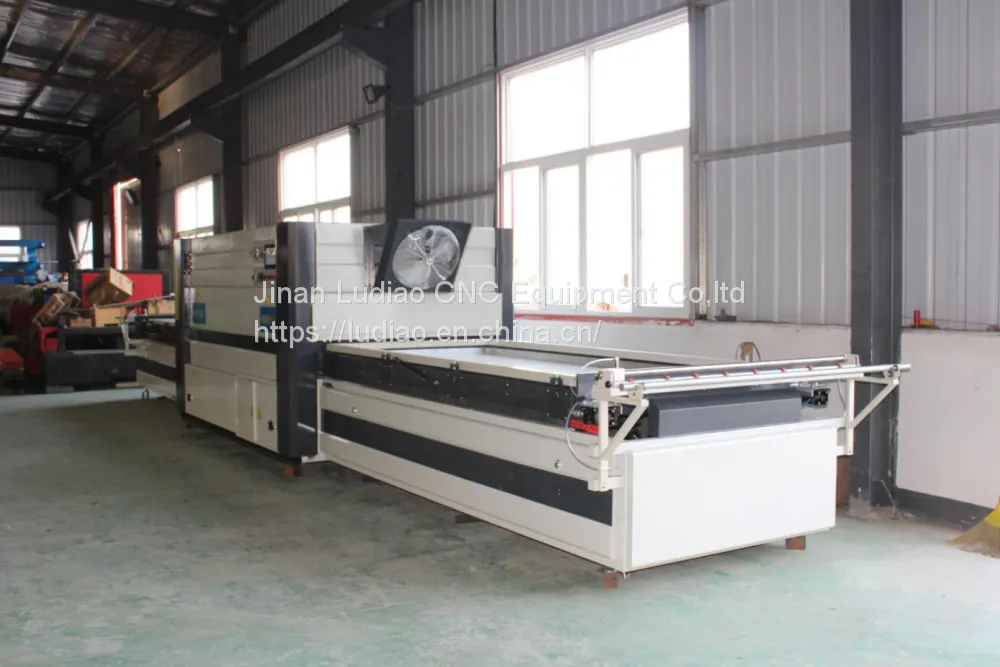

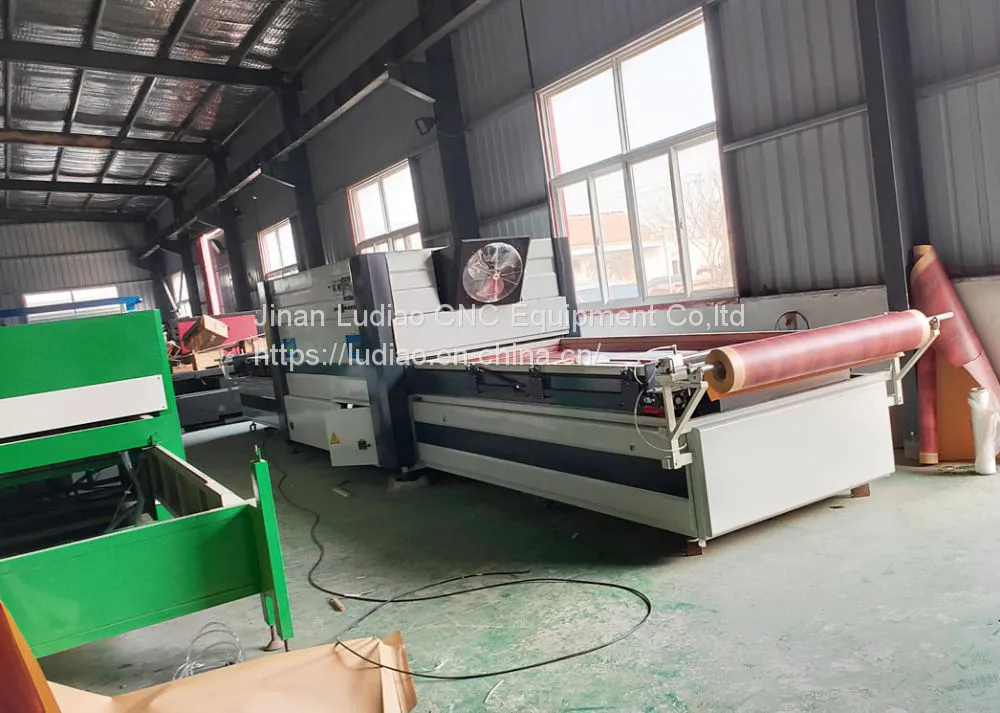

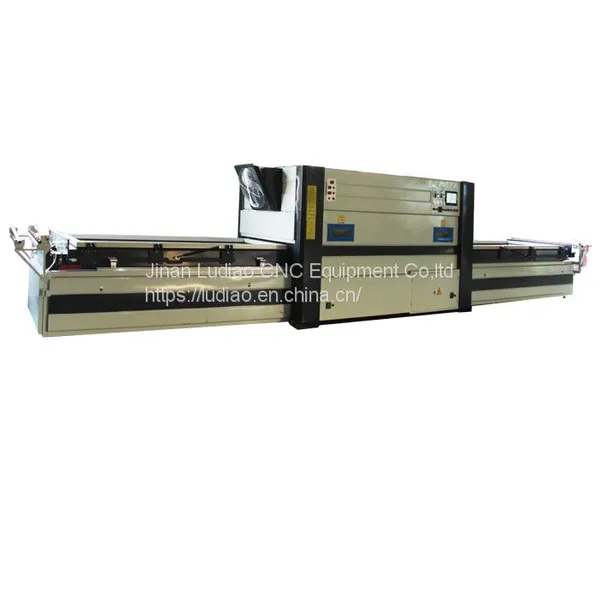

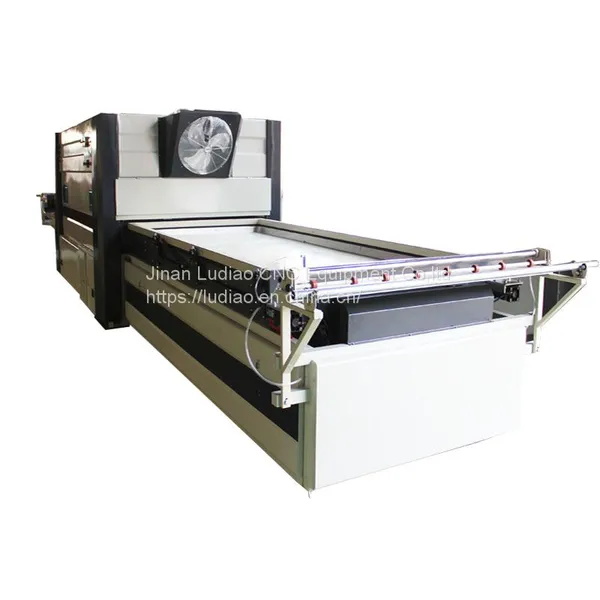

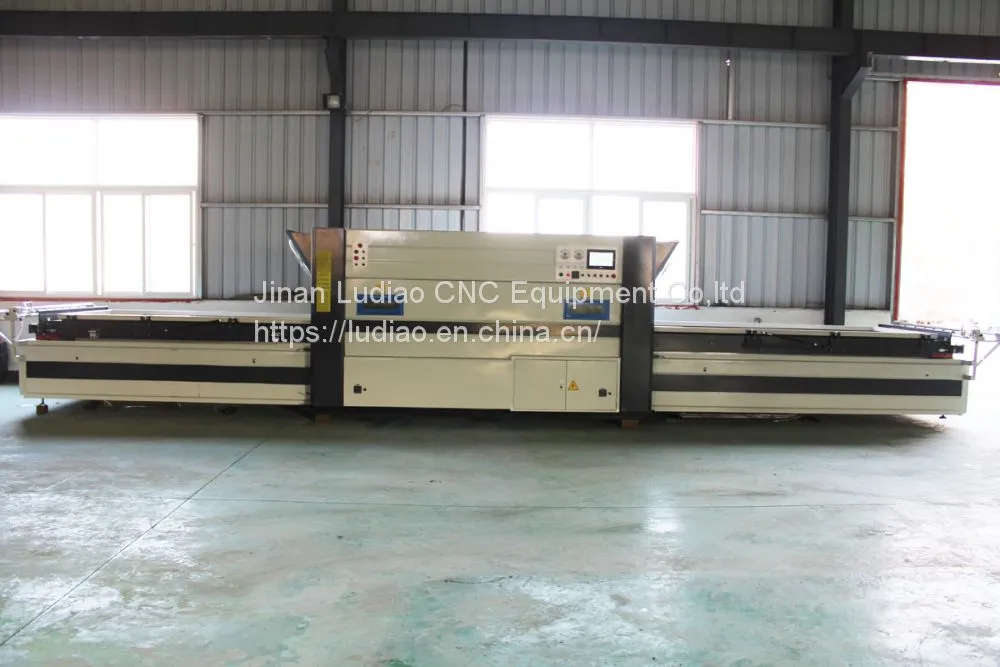

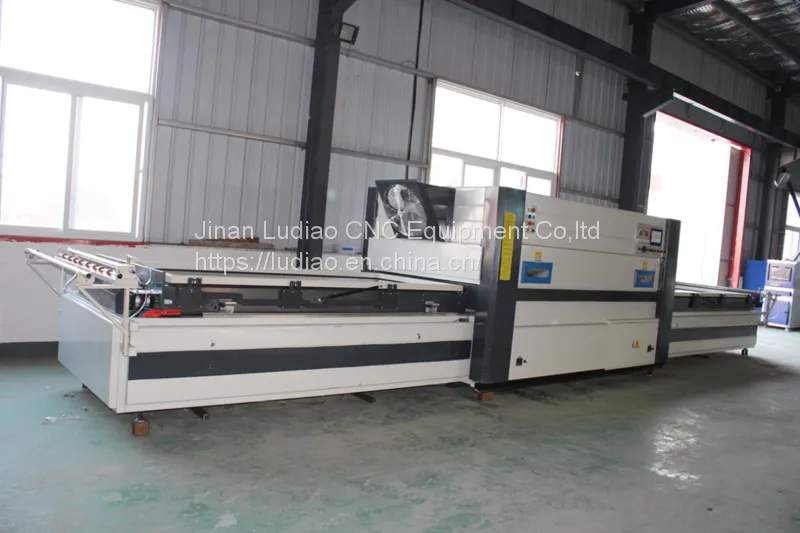

two tables automatic Pvc foil vacuum membrane hot press laminating machine for wood cabinet
Applicable covering material: PVC film
UNIQUE TECHNOLOGY AND CONFIGURATION
Patent one [three sets of heating system, secondary heating technology]. The secondary heating is a set of heating systems independent of the original heating system. It is turned on for a few seconds after the adsorption of the PVC film is completed, and the temperature is increased on the surface and sides of the product to make the surface better and stick more firmly.
Patent 2 [High and low pressure adsorption technology, low pressure adsorption and high pressure molding]. High and low pressure means that after the softening of the PVC film is completed, low pressure adsorption is used to prevent the suction phenomenon of the PVC film. After the molding is turned on, the high pressure is turned on to make the product molding better without the phenomenon of folding.
Machine feature
1. Equipped with helical gear transmission as standard, the work runs smoothly and the noise is low.
2. It is equipped with heavy-duty inverter as standard, parameter 1.5kW, 1800g, 485 transmission interface.
3. Standard thickened and thickened telescopic vacuum tube: parameter 36 (diameter) × 2mm.
4. Standard 140m3 vacuum pump of Shanghai Xikeshi brand
5. Standard plastic sprayed base plate: thickness 4mm.
6. Patented hundred leaf heating, patented technology for secondary heating.
7, standard equipped with automatic cutting knife.
8. Standard cooling fan.
9.Workbench tightens automatically
10. Intelligent touch screen PLC control of operating system. Independent control system with two working tables
11. Stamping reinforcement (non-welding). Laser Manufacturing Parts
12. The standard length of the worktable is 3.1m.
13. Ultra-thick thermal insulation, saving 20% than conventional power
Specification
Machine model |
TM2680D-2 |
Machine dimension |
11100x1900x1800mm |
Each working table size |
3000x1300mm/1140(Inner table size) |
Working table |
Double |
|
Max processing height (board thickness) |
60mm(include base board) |
PV foil width |
1400/1250mm |
Preset pressure |
≥-0.095Mpa |
Total power |
25KW |
Working power |
7-9kw |
Machine weight |
2000kg |
Machine working voltage |
3 phase 4 lines 380v 50HZ |
Warranty |
1 year |
Delivery time |
15working days |
Packaging |
Export plywood packaging |
Packaging dimension |
3700*2100*2600mm |
Gross weight |
2200kg |

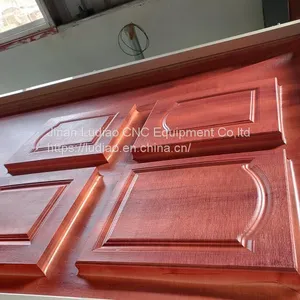

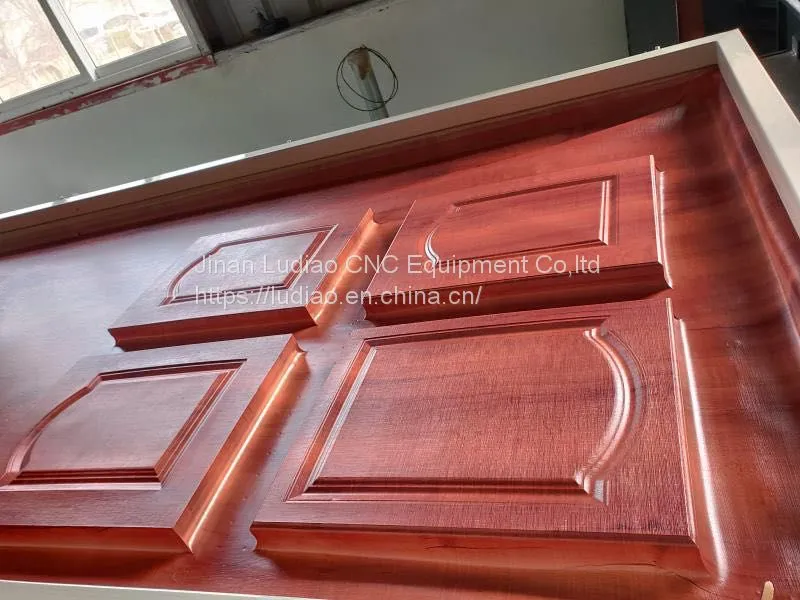

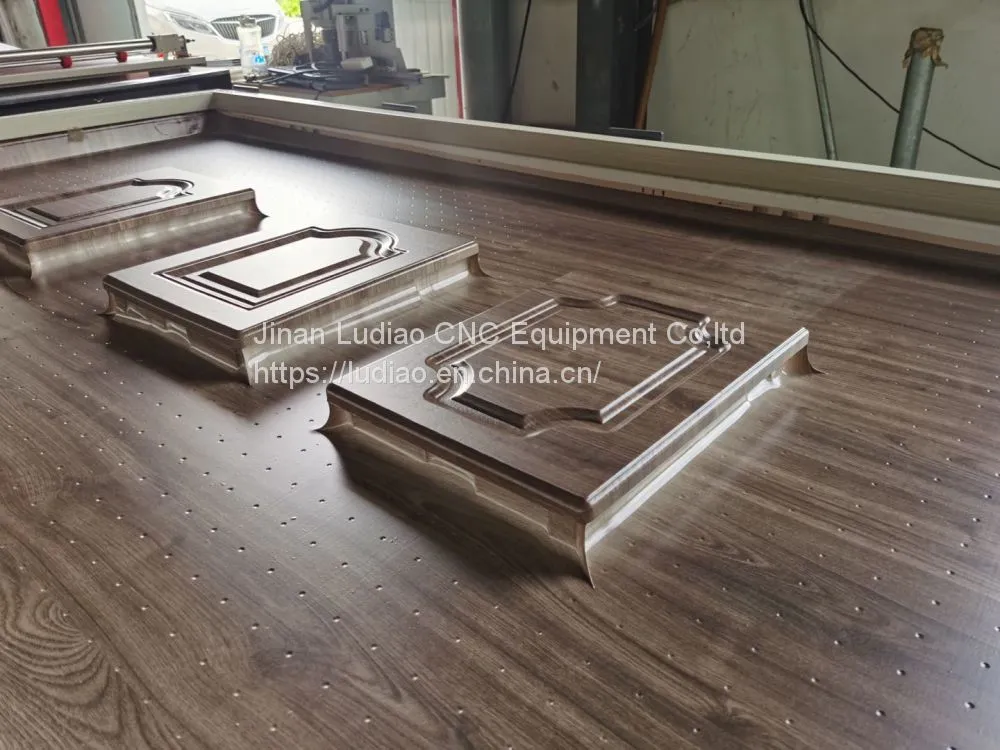

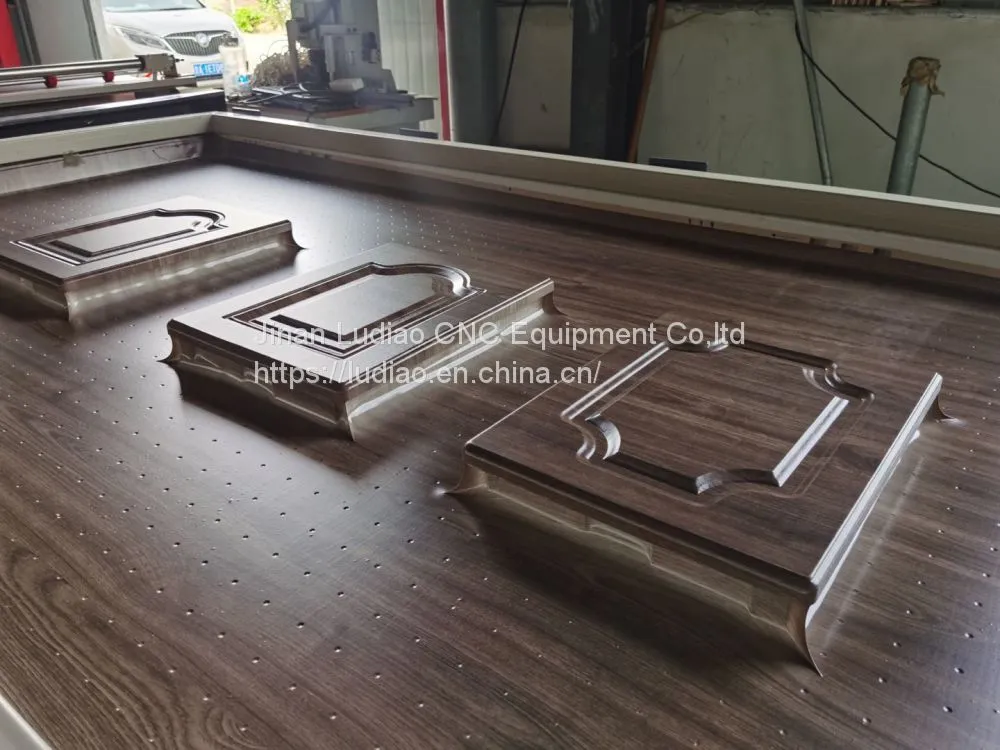

PVC pasting sample
